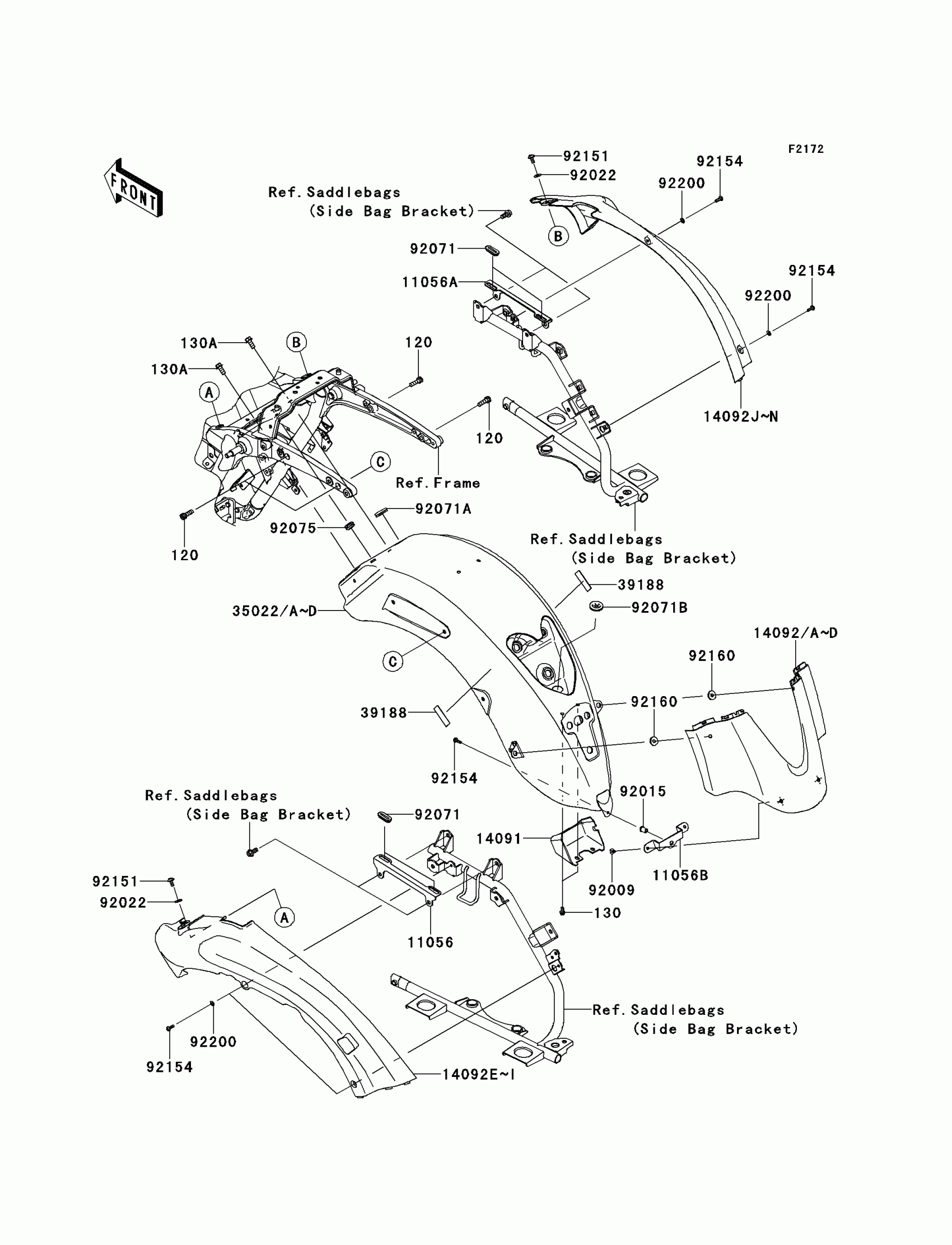

Kawasaki VULCAN® 1700 VAQUERO® Rear Fender(s) Diagram

#

Description
Price

11056

BRACKET,LH

11056-0390

$11.49

11056A

BRACKET,RH

11056-0391

$11.49

11056B

BRACKET

11056-1087

$8.92

14091

COVER,HARNESS CONNECTOR

14091-1630

$9.63

120

BOLT-SOCKET,8X25

120CA0825

$1.49

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

39188

TAPE

39188-0016

$3.78

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X16X1.0

92022-1654

$2.76

92071

GROMMET

92071-1187

$3.78

92071A

GROMMET

92071-1228

$5.66

92071B

GROMMET

92071-1265

$4.12

92075

DAMPER

92075-1067

$3.57

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92160

DAMPER

92160-1613

$2.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

14092B

COVER,M.S.BLACK

14092-0797-660

$154.76

14092C

COVER,C.P.BLUE

14092-0797-723

$177.37

14092G

COVER,STRUT,LH,M.S.BLACK

14092-0800-660

$105.27

14092H

COVER,STRUT,LH,C.P.BLUE

14092-0800-723

$121.27

14092L

COVER,STRUT,RH,M.S.BLACK

14092-0801-660

$105.27

14092M

COVER,STRUT,RH,C.P.BLUE

14092-0801-723

$121.27

35022B

FENDER-COMP-REAR,M.S.BLACK

35022-0083-660

$1,015.87

35022C

FENDER-COMP-REAR,C.P.BLUE

35022-0083-723

$1,152.39
