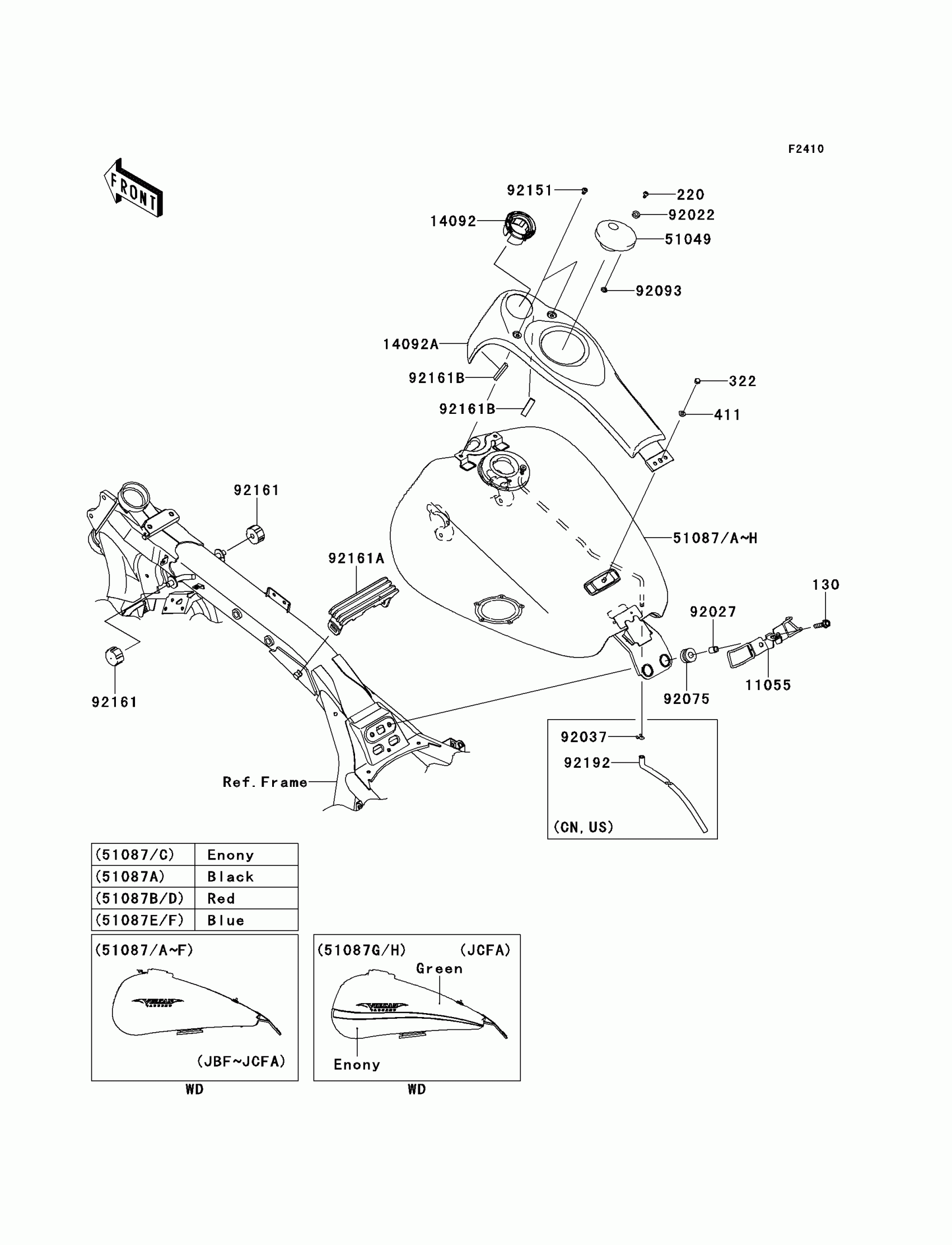

Kawasaki VULCAN® 1700 VAQUERO® Fuel Tank Diagram

Description

Price

11055

BRACKET,SEAT

11055-1552

$36.79

14092

COVER,IGNITION SWITCH

14092-0046

$55.32

14092A

COVER,B.BLACK

14092-0217-19U

$221.55

51049

CAP-TANK,FUEL

51049-0003

$109.78

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,8.8X12X17

92027-034

$7.24

92075

DAMPER

92075-1736

$6.57

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

130

BOLT-FLANGED,8X30

130BA0830

$1.98

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

322

NUT-CAP,6MM

322AB0600

$2.80

411

WASHER-PLAIN,6MM

411S0600

$2.06

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER,FUEL TANK

92161-0577

$28.34

92161B

DAMPER,TANK COVER

92161-0804

$2.03

51087A

TANK-COMP-FUEL,M.S.BLACK

51087-5107-660

Unavailable

51087E

TANK-COMP-FUEL,C.P.BLUE

51087-5269-723

$1,617.95

51087F

TANK-COMP-FUEL,C.P.BLUE

51087-5270-723

$1,617.95

92037

CLAMP,TUBE

92037-147

$7.34

92192

TUBE,BREATHER

92192-0668

$19.16
