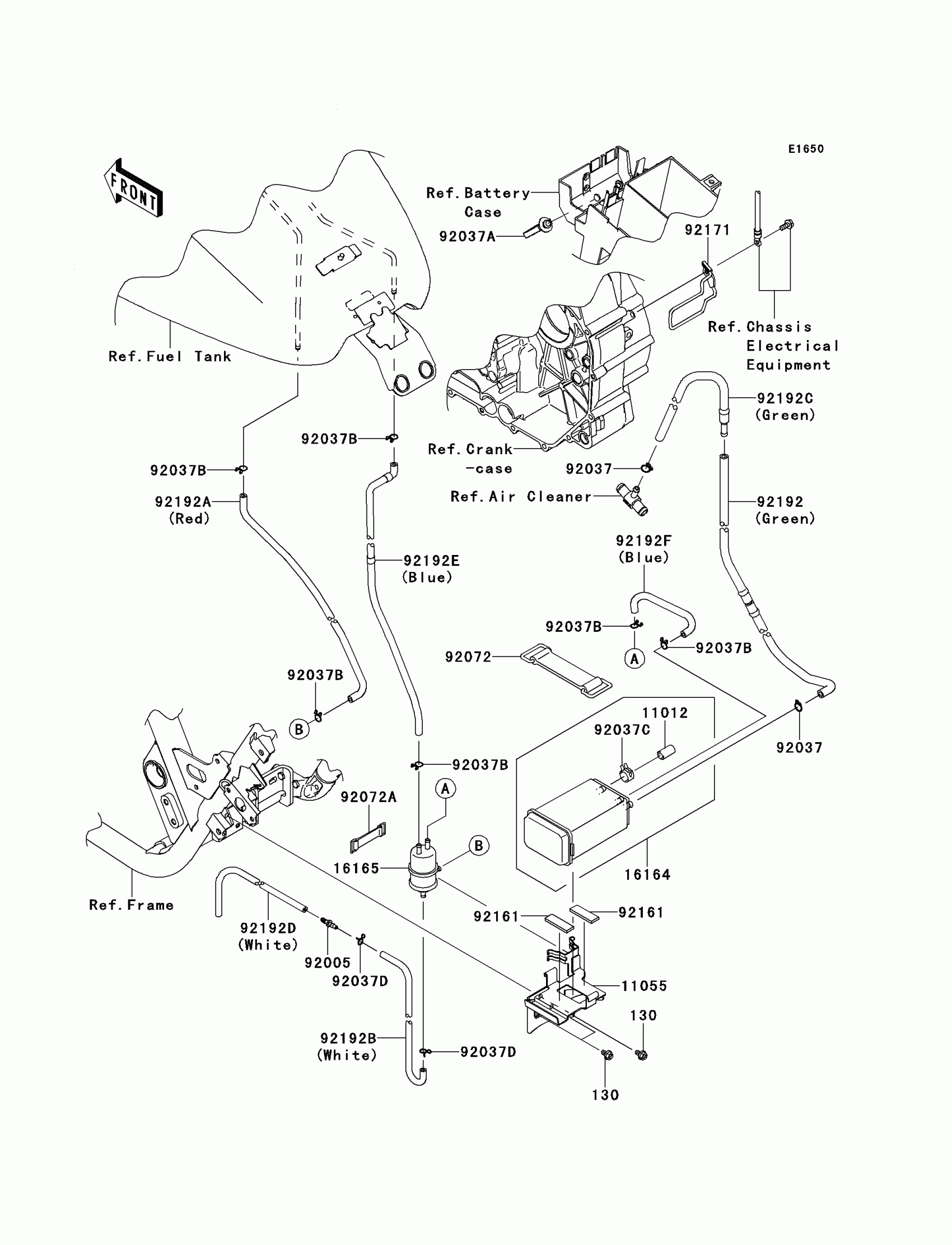

Kawasaki VULCAN® 1700 VAQUERO® Fuel Evaporative System(JDF)(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

11012

CAP,CANISTER

11012-1388

$8.51

11055

BRACKET

11055-1653

$68.58

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1206

$8.68

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,CABLE

92037-1459

$21.77

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP,CANISTER

92037-1512

$6.57

92037D

CLAMP

92037-1712

$5.00

92072

BAND

92072-1384

$13.75

92072A

BAND,L=50

92072-1419

$16.08

92161

DAMPER

92161-0124

$3.44

92171

CLAMP

92171-1798

$21.95

92192

TUBE,CANISTER-1ST FTG,GREEN

92192-0657

$98.71

92192A

TUBE,SEPARATOR-TANK,RED

92192-0660

$101.06

92192B

TUBE,FITTING-SEP.WHITE

92192-0692

$14.26

92192C

TUBE,1ST FTG-2ND FTG,GREEN

92192-0760

$45.48

92192D

TUBE,THROBO-FITTING,WHITE

92192-0761

$6.57

92192E

TUBE,TANK-SEPARATOR,BLUE

92192-0799

$82.52

92192F

TUBE,CANISTER-SEPARATOR,BLUE

92192-0824

$40.27
