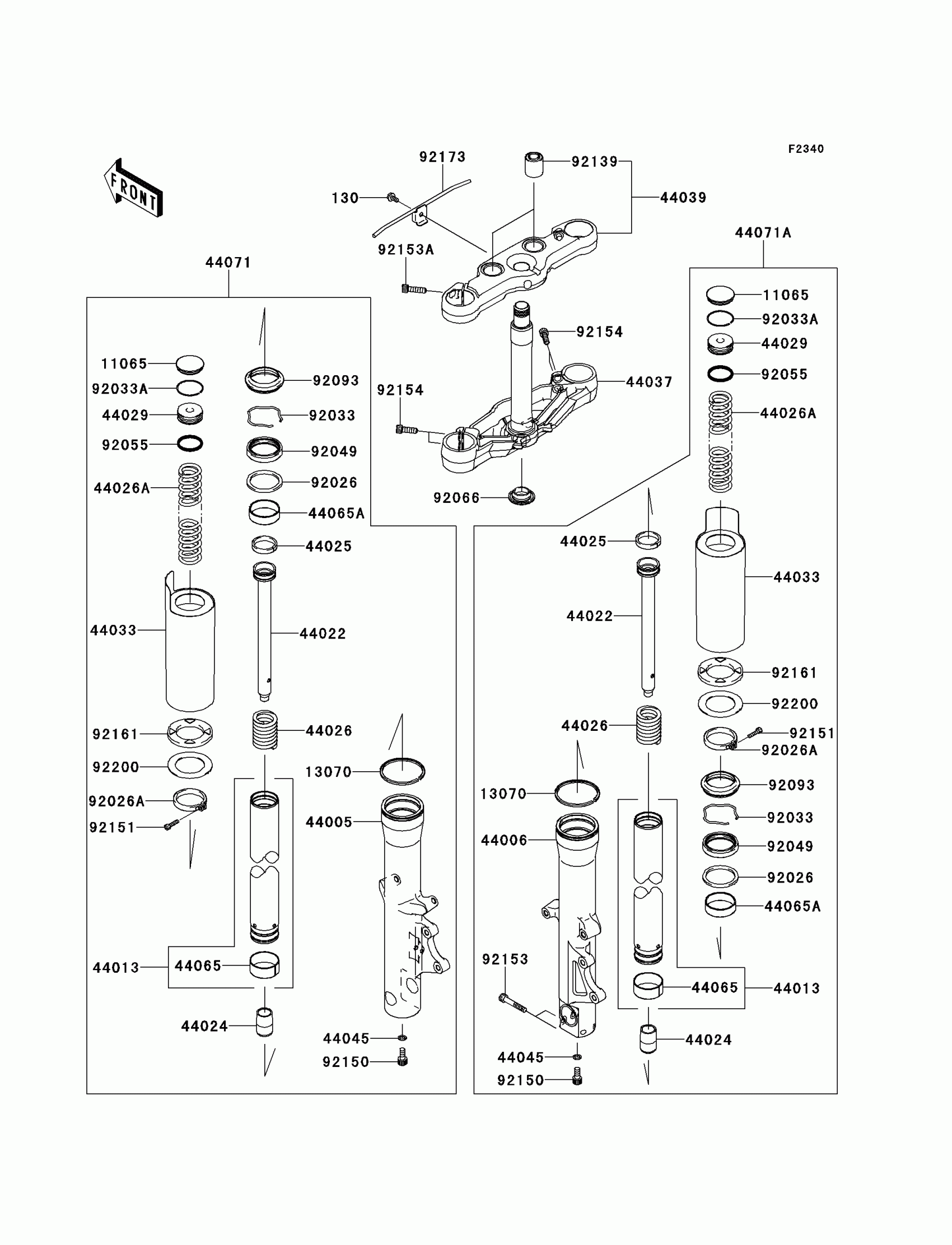

Kawasaki VULCAN® 1700 VAQUERO® Front Fork Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

11065

CAP,FORK TOP

11065-0717

$13.37

13070

GUIDE,CASE

13070-0103

$11.61

44005

PIPE-LEFT FORK OUTER

44005-0081

$462.48

44006

PIPE-RIGHT FORK OUTER

44006-0077

$462.48

44013

PIPE-FORK INNER

44013-0124

$438.96

44022

CYLINDER-FORK

44022-0026

$112.93

44024

CAP-OIL-LOCK

44024-0006

$12.94

44025

RING-FORK PISTON

44025-0005

$10.09

44026

SPRING-FRONT FORK

44026-0129

$25.91

44026A

SPRING-FRONT FORK

44026-0138

$95.22

44029

SEAT-FORK SPRING

44029-0012

$96.11

44033

COVER-FORK

44033-0068

$142.80

44037

HOLDER-FORK UNDER

44037-0086

$488.88

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0108-18R

$352.61

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0023

$25.53

44065A

BUSHING-FRONT FORK

44065-0024

$25.53

44071

DAMPER-ASSY,LH

44071-0718

$1,087.83

44071A

DAMPER-ASSY,RH

44071-0719

$1,087.83

92026

SPACER

92026-0132

$5.29

92026A

SPACER

92026-0133

$35.12

92033

RING-SNAP

92033-0060

$7.73

92033A

RING-SNAP

92033-1303

$7.73

92049

SEAL-OIL

92049-0118

$18.76

92055

RING-O

92055-0169

$3.21

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0147

$16.09

92139

BUSHING

92139-0285

$36.14

92150

BOLT,SOCKET,8X18

92150-1432

$9.91

92151

BOLT,SOCKET,4X16

92151-1356

$2.46

92153

BOLT

92153-0499

$9.51

92153A

BOLT,SOCKET,8X30

92153-0500

$10.86

92154

BOLT,SOCKET

92154-0113

$3.71

92161

DAMPER

92161-0683

$15.62

92173

CLAMP

92173-0752

$14.90

92200

WASHER

92200-0468

$7.79
