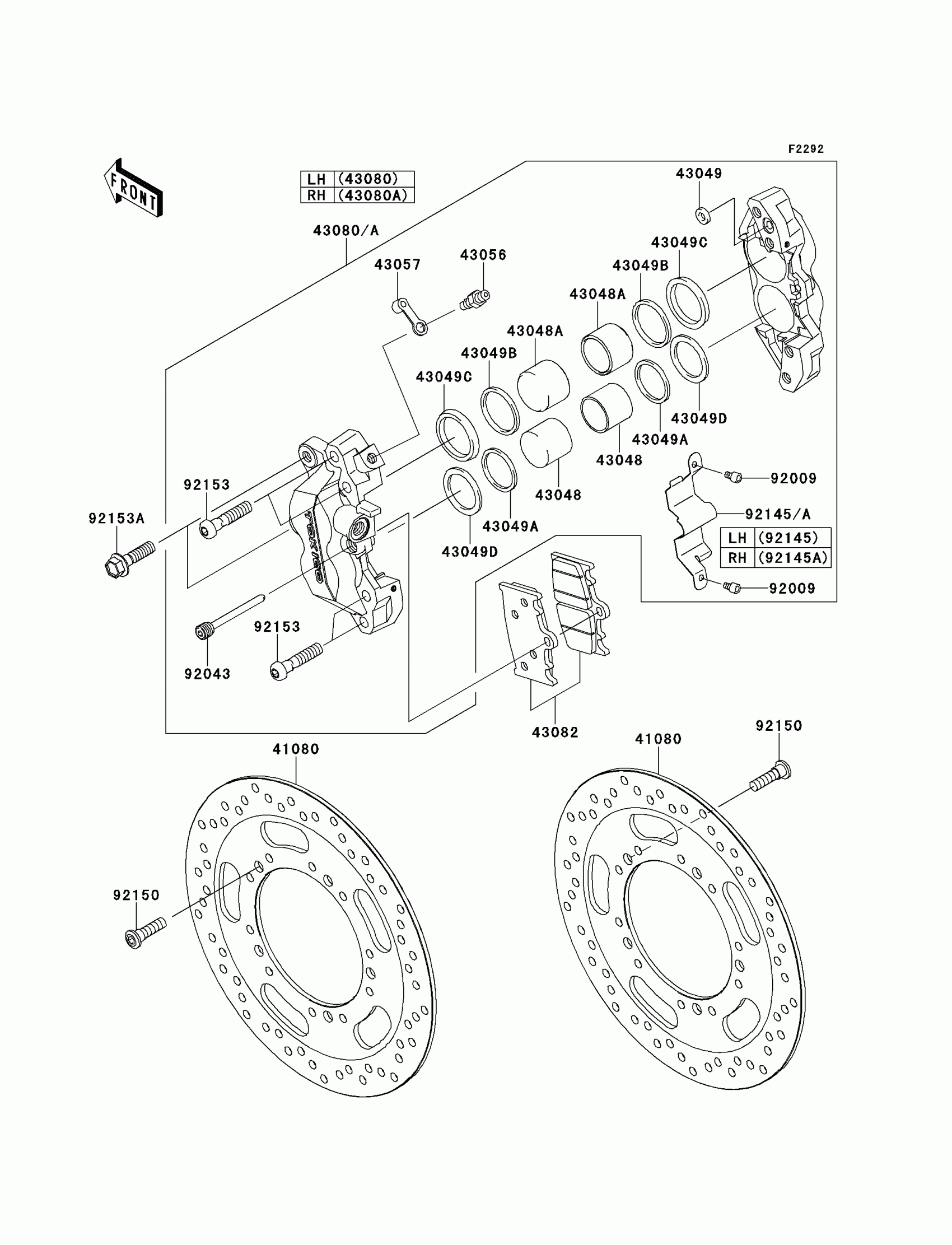

Kawasaki VULCAN® 1700 VAQUERO® Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK

41080-0181-11H

$455.55

43048

PISTON-CALIPER,DIA=26.97

43048-1078

$66.04

43048A

PISTON-CALIPER,DIA=30.2

43048-1098

$33.35

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING

43049-1068

$9.82

43049C

PACKING,PISTON SEAL

43049-1092

$10.39

43049D

PACKING,PISTON SEAL

43049-1096

$12.42

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0073-DJ

$385.26

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0074-DJ

$385.26

43082

PAD-ASSY-BRAKE

43082-0016

$76.79

92009

BOLT,SOCKET,4X6

92009-1758

$2.78

92043

PIN,PAD

92043-1683

$4.18

92145

SPRING,COVER,LH

92145-1503

$28.27

92145A

SPRING,COVER,RH

92145-1504

$28.27

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,SOCKET,8X40

92153-0360

$6.18

92153A

BOLT,FLANGED,8X30

92153-1089

$2.41
