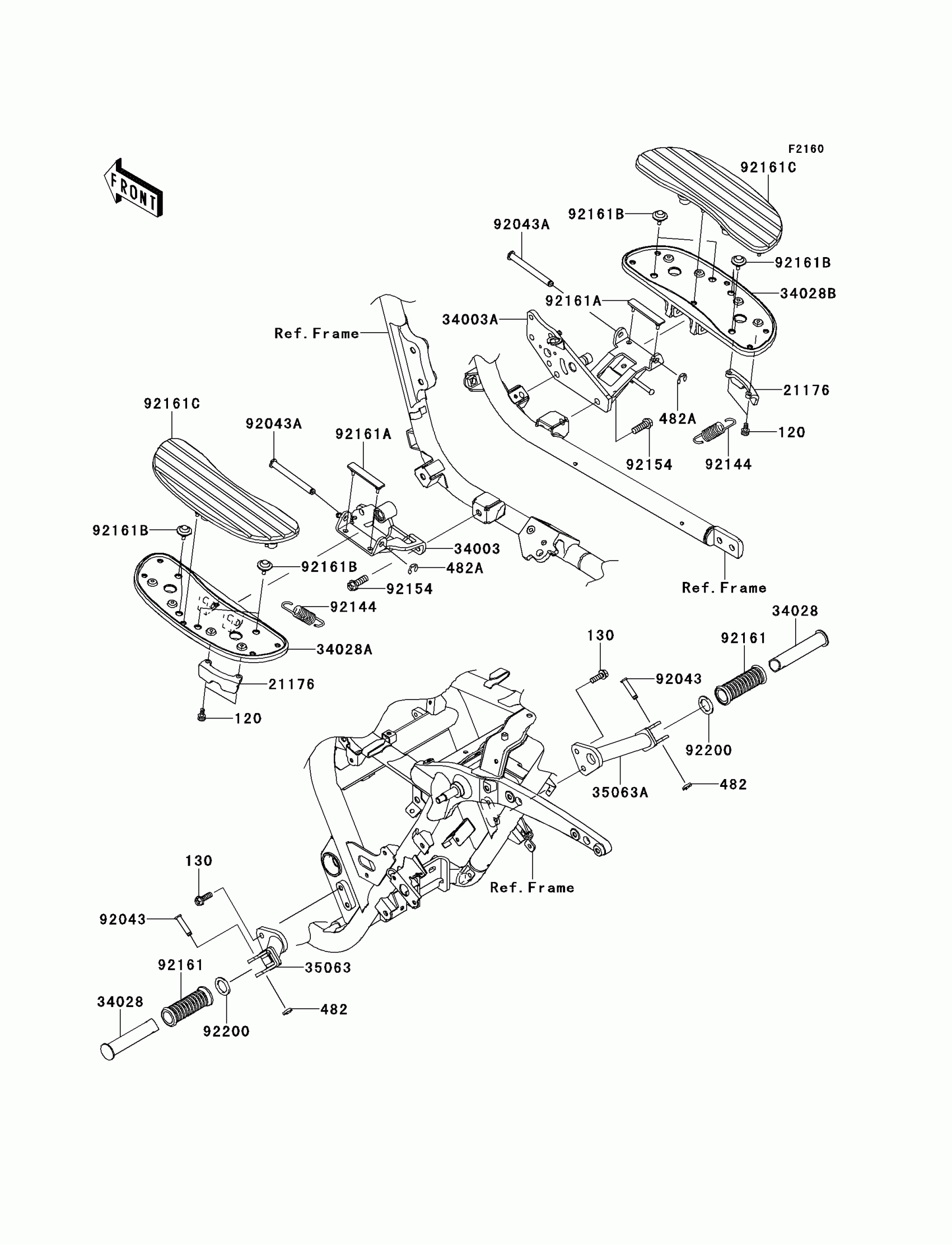

Kawasaki VULCAN® 1700 VAQUERO® Footrests Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CB0616

$1.27

130

BOLT-FLANGED,8X25

130BB0825

$4.45

482

CIRCLIP-TYPE-E

482EA7000

$3.92

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

21176

SENSOR,BANK

21176-0123

$22.09

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0102-18R

$119.72

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0103-18R

$124.87

34028

STEP,RR

34028-0017

$23.45

34028A

STEP,FR,LH

34028-0143

$110.41

34028B

STEP,FR,RH

34028-0144

$110.41

35063

STAY,LH,F.S.BLACK

35063-0724-18R

$80.77

35063A

STAY,RH,F.S.BLACK

35063-0725-18R

$80.77

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,10X98.5

92043-1707

$10.49

92144

SPRING

92144-1266

$8.79

92154

BOLT,FLANGED,10X30

92154-0284

$3.52

92161

DAMPER,STEP

92161-0232

$16.53

92161A

DAMPER,STEP HOLDER

92161-0746

$7.60

92161B

DAMPER,STEP

92161-0766

$5.29

92161C

DAMPER,FOOT BOARD

92161-0770

$68.83

92200

WASHER,22.5X33X2.3

92200-1482

$2.75
