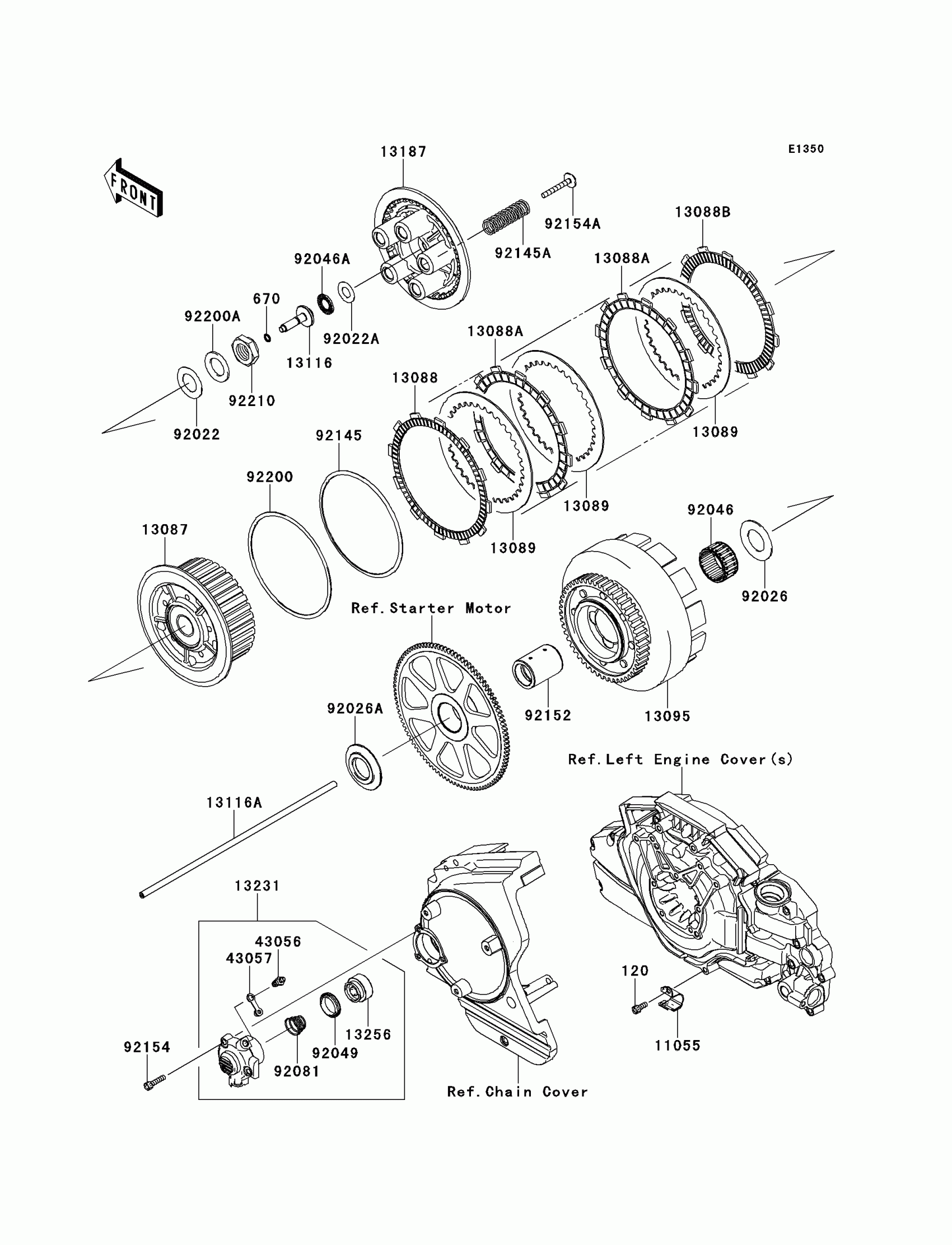

Kawasaki VULCAN® 1700 VAQUERO® Clutch Diagram

#

Description
Price

120

BOLT-SOCKET,6X14

120CC0614

$2.61

670

O RING,7MM

670D1507

$1.70

11055

BRACKET

11055-0528

$8.44

13087

HUB-CLUTCH

13087-0052

$160.70

13088

PLATE-FRICTION

13088-0001

$18.55

13088A

PLATE-FRICTION

13088-0011

$18.55

13088B

PLATE-FRICTION

13088-1146

$17.67

13089

PLATE-CLUTCH,T=2.0

13089-1075

$14.01

13095

HOUSING-COMP-CLUTCH

13095-0087

$597.52

13116

ROD-PUSH

13116-0033

$30.15

13116A

ROD-PUSH

13116-0036

$45.62

13187

PLATE-CLUTCH OPERATING

13187-0002

$93.81

13231

RELEASE-ASSY-CLUTCH

13231-0003

$153.35

13256

PISTON

13256-1052

$59.07

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

92022

WASHER,25.3X44X1

92022-1390

$4.87

92022A

WASHER,15.1X29X1.0

92022-1463

$5.00

92026

SPACER,30.5X56X2

92026-0008

$7.95

92026A

SPACER

92026-0146

$45.62

92046

BEARING-NEEDLE,K40X48X25V3

92046-0001

$36.48

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92049

SEAL-OIL,PISTON

92049-1165

$19.64

92081

SPRING,CLUTCH RELEASE

92081-1644

$8.51

92145

SPRING

92145-0033

$7.88

92145A

SPRING

92145-0771

$9.80

92152

COLLAR,30X40X52.3

92152-0190

$63.95

92154

BOLT,SOCKET,6X25

92154-0085

$2.55

92154A

BOLT,CLUTCH OPERATING

92154-0352

$5.95

92200

WASHER,140.1X150X1.2

92200-0015

$7.95

92200A

WASHER,25.5X42X2.6

92200-0016

$5.79

92210

NUT,25MM

92210-0138

$5.79
