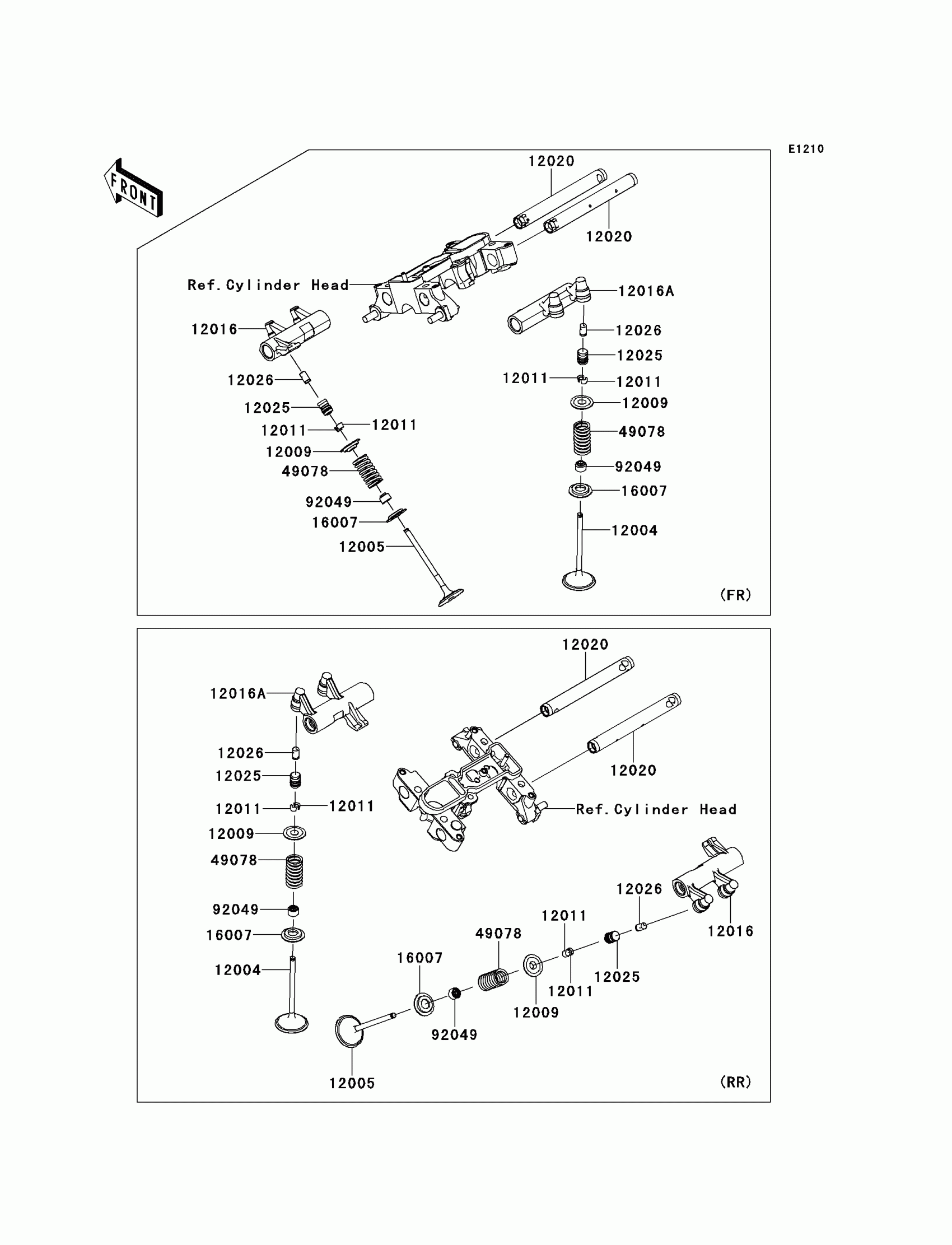

Kawasaki VULCAN 1700 VAQUERO (Canadian) Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0001

$71.30

12005

VALVE-EXHAUST

12005-0001

$89.92

12009

RETAINER-VALVE SPRING

12009-0002

$14.27

12011

COLLET

12011-0001

$6.12

12016

ARM-ROCKER

12016-0027

$172.97

12016A

ARM-ROCKER

12016-0028

$172.97

12020

SHAFT-ROCKER

12020-0008

$65.24

12025

ADJUSTER-LASH

12025-1053

$103.33

12026

CHAMBER,OIL

12026-1001

$8.79

16007

SEAT-SPRING

16007-0001

$4.65

49078

SPRING-ENGINE VALVE

49078-0001

$16.09

92049

SEAL-OIL,RVC2 6 10.5 9.4

92049-0009

$12.27
