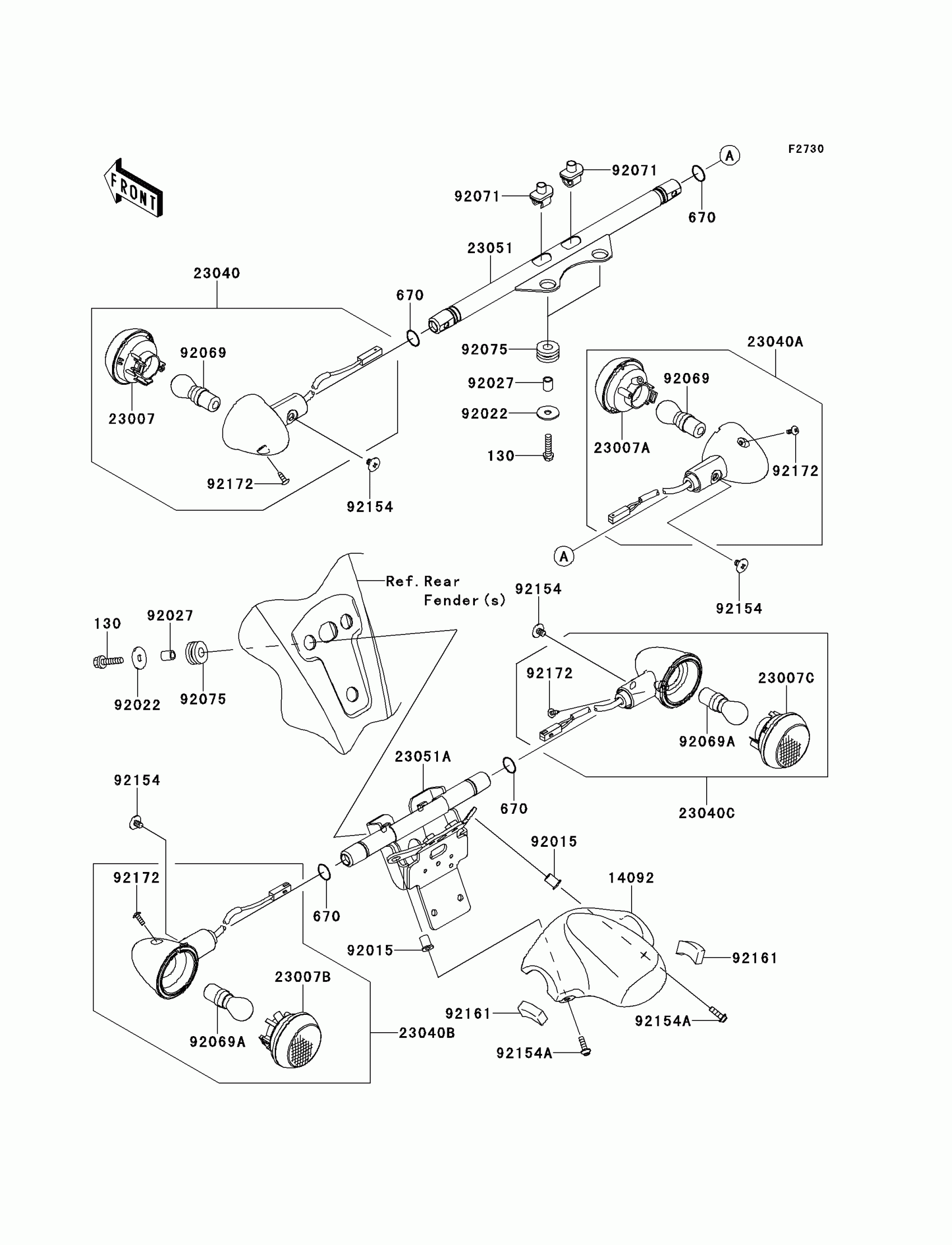

Kawasaki VULCAN 1700 VAQUERO (Canadian) Turn Signals Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$2.80

670

O RING,16MM

670B2016

$1.36

14092

COVER,LICENSE LAMP

14092-0090

$56.67

23007

LENS-COMP,SIGNAL LAMP

23007-0120

$34.46

23007A

LENS-COMP,SIGNAL LAMP

23007-0125

$34.46

23007B

LENS-COMP,SIGNAL LAMP

23007-0126

$34.46

23007C

LENS-COMP,SIGNAL LAMP

23007-0127

$34.46

23040

LAMP-SIGNAL,FR,LH

23040-0083

$100.64

23040A

LAMP-SIGNAL,FR,RH

23040-0084

$100.64

23040B

LAMP-SIGNAL,RR,LH

23040-0089

$100.64

23040C

LAMP-SIGNAL,RR,RH

23040-0090

$100.64

23051

BRACKET-SIGNAL LAMP,FR

23051-0036

$162.49

23051A

BRACKET-SIGNAL LAMP,RR

23051-0038

$130.57

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,7X24X1.6

92022-1160

$3.92

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SIGNAL LAMP

92071-0043

$5.48

92075

DAMPER,10X24X12

92075-1690

$5.00

92154

BOLT,6X8

92154-0097

$2.03

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92161

DAMPER

92161-0841

$5.59

92172

SCREW,TAPPING,4X12

92172-0389

$3.52
