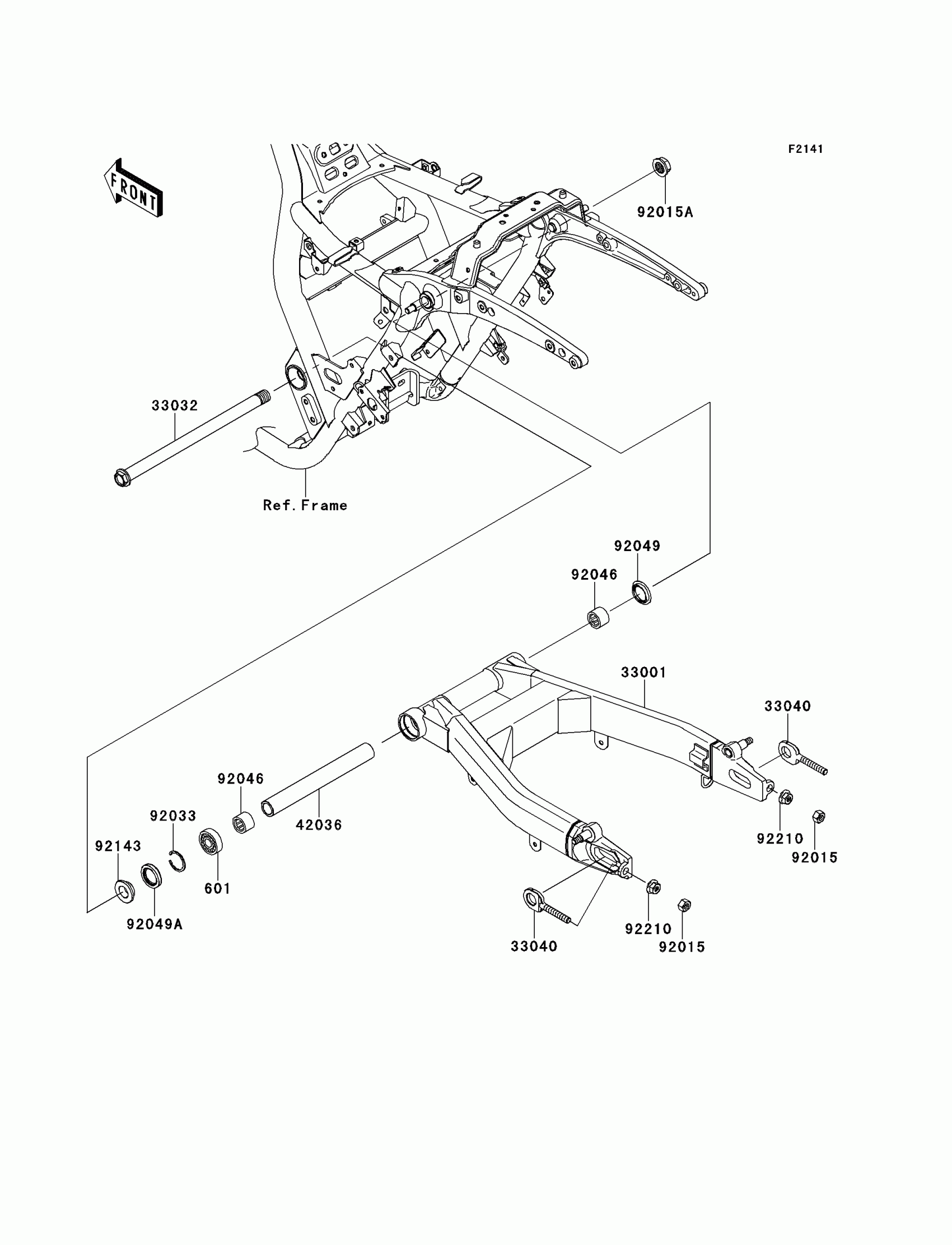

Kawasaki VULCAN 1700 VAQUERO (Canadian) Swingarm Diagram

Description

Price

601

BEARING-BALL,#6004

601A6004

$9.04

33001

ARM-COMP-SWING,F.S.BLACK

33001-0205-18R

$714.18

33032

SHAFT-SWING ARM

33032-0031

$65.90

33040

ADJUSTER-CHAIN

33040-0005

$41.80

42036

SLEEVE,SWING ARM,L=235.5

42036-0059

$44.23

92015

NUT,LOCK,10MM

92015-1494

$5.42

92015A

NUT,FLANGED,20MM

92015-1724

$11.31

92033

RING-SNAP,42MM

92033-1041

$4.64

92046

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,TC28426.5

92049-1185

$9.02

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$18.34

92210

NUT,FLANGED,10MM

92210-0349

$1.81
