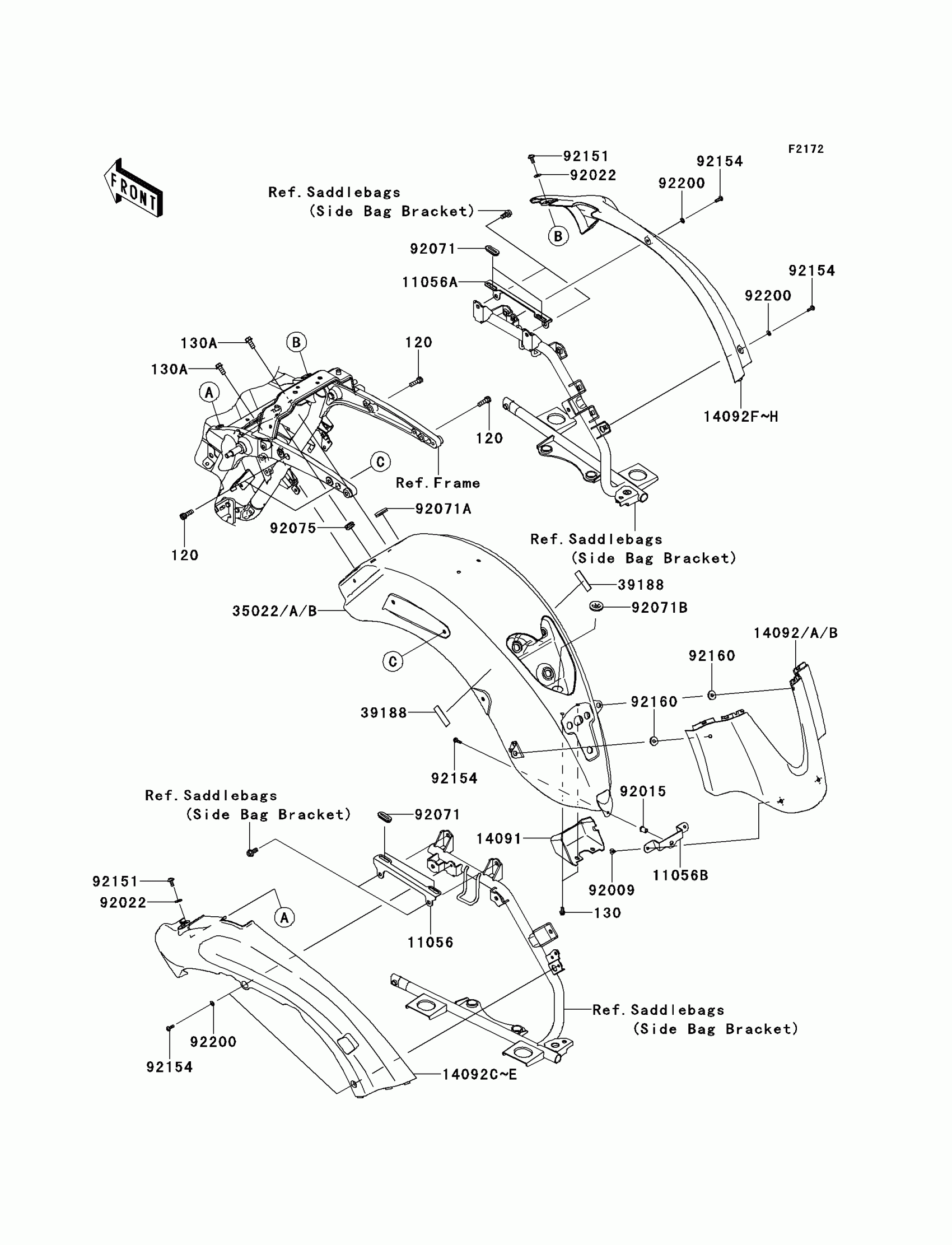

Kawasaki VULCAN 1700 VAQUERO (Canadian) Rear Fender(s) Diagram

Description

Price

120

BOLT-SOCKET,8X25

120CA0825

$2.06

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

11056

BRACKET,LH

11056-0390

$11.99

11056A

BRACKET,RH

11056-0391

$11.99

11056B

BRACKET

11056-1087

$9.17

14091

COVER,HARNESS CONNECTOR

14091-1630

$9.96

14092

COVER,C.B.ORANGE

14092-0797-17L

$159.07

14092C

COVER,STRUT,LH,C.B.ORANGE

14092-0800-17L

$108.77

14092F

COVER,STRUT,RH,C.B.ORANGE

14092-0801-17L

$108.77

35022

FENDER-COMP-REAR,C.B.ORANGE

35022-0083-17L

$1,030.96

39188

TAPE

39188-0016

$4.22

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1.0

92022-1654

$3.65

92071

GROMMET

92071-1187

$4.96

92071A

GROMMET

92071-1228

$6.51

92071B

GROMMET

92071-1265

$4.63

92075

DAMPER

92075-1067

$4.69

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92160

DAMPER

92160-1613

$3.74

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86
