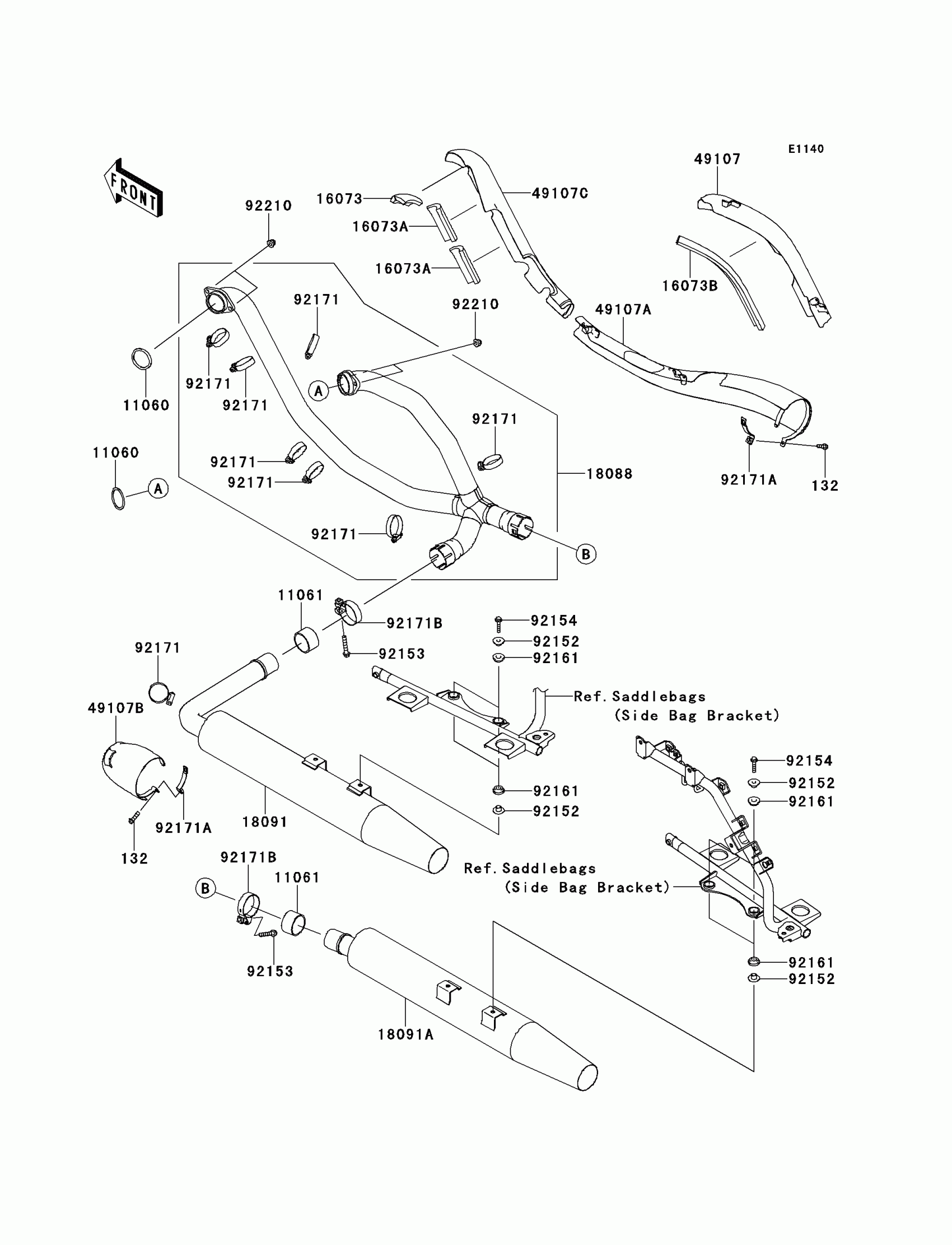

Kawasaki VULCAN 1700 VAQUERO (Canadian) Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

11060

GASKET,EXHAUST PIPE

11060-1119

$7.30

11061

GASKET,MUFFLER CONNECTING

11061-0240

$30.89

16073

INSULATOR

16073-0125

$11.32

16073A

INSULATOR

16073-0126

$14.08

16073B

INSULATOR

16073-0128

$55.23

18088

PIPE-EXHAUST

18088-0414

$687.79

18091

BODY-COMP-MUFFLER,LH

18091-0833

$1,054.76

18091A

BODY-COMP-MUFFLER,RH

18091-0834

$1,054.76

49107

COVER-EXHAUST PIPE,RR

49107-0167

$215.77

49107A

COVER-EXHAUST PIPE,FR-R

49107-0168

$380.61

49107B

COVER-EXHAUST PIPE,LH

49107-0169

$205.05

49107C

COVER-EXHAUST PIPE,FR-F

49107-0172

$321.03

92152

COLLAR,8.8X12X10.6

92152-0082

$8.81

92153

BOLT,8X45

92153-0702

$2.76

92154

BOLT,FLANGED,8X32

92154-0136

$1.81

92161

DAMPER

92161-0135

$2.38

92171

CLAMP

92171-0072

$9.42

92171A

CLAMP

92171-0294

$14.76

92171B

CLAMP

92171-0358

$25.08

92210

NUT,CAP,8MM

92210-1132

$3.19
