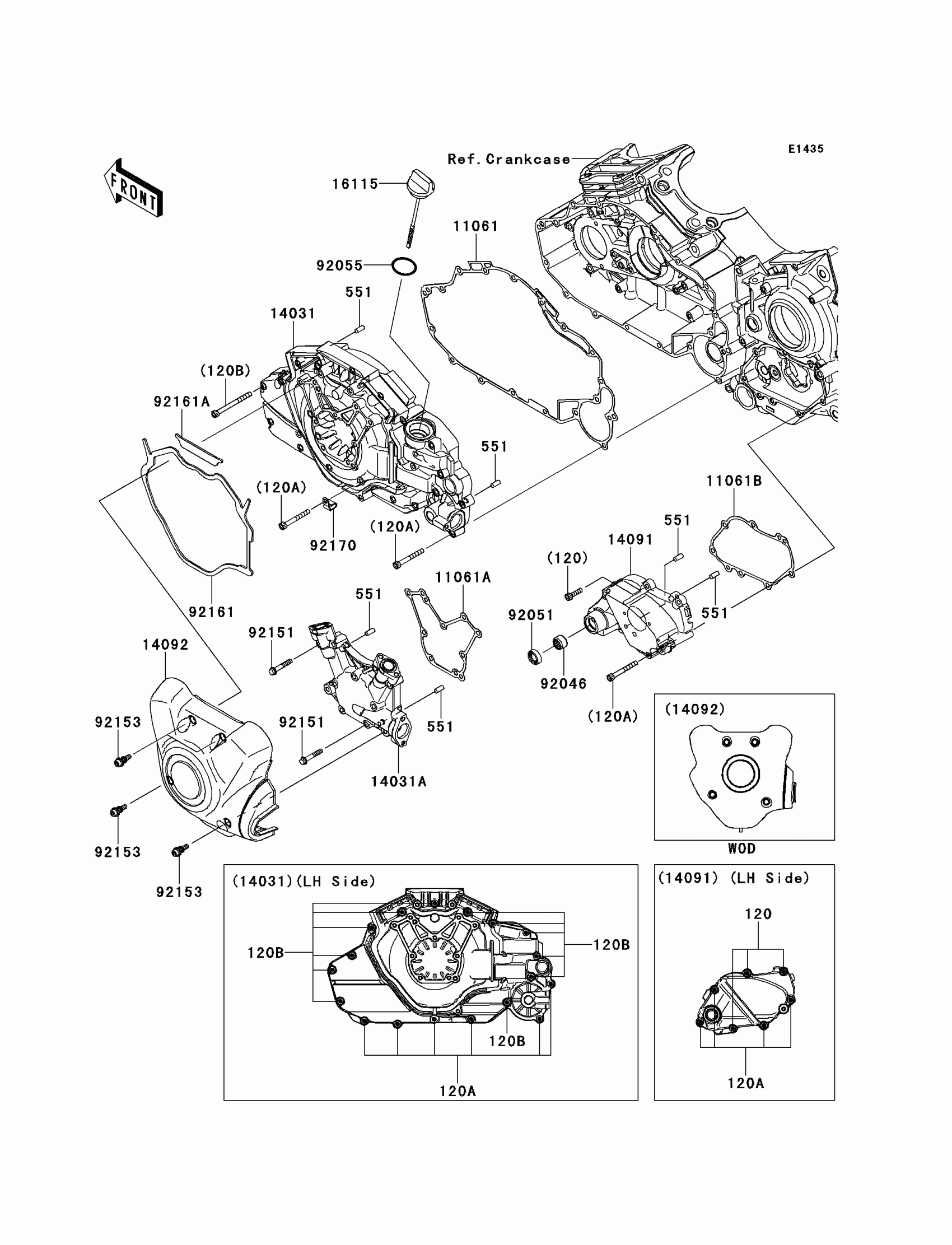

Kawasaki VULCAN 1700 VAQUERO (Canadian) Left Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X22

120CC0622

$2.03

120A

BOLT-SOCKET,6X50

120CC0650

$2.55

120B

BOLT-SOCKET,6X70

120CC0670

$3.29

551

PIN-DOWEL,6X14

551A0614

$3.92

11061

GASKET,GENERATOR COVER,IN

11061-0338

$36.45

11061A

GASKET,GENERATOR COVER,MID

11061-0339

$13.06

11061B

GASKET,CHANGE COVER

11061-0340

$13.06

14031

COVER-GENERATOR,INNER

14031-0093

$315.80

14031A

COVER-GENERATOR,MIDDLE

14031-0094

$118.31

14091

COVER,CHANGE

14091-1807

$112.03

14092

COVER,GENERATOR OUTER

14092-0245

$185.93

16115

CAP-OIL FILLER

16115-0019

$104.53

92046

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92151

BOLT,6X35

92151-1624

$2.34

92153

BOLT,SOCKET,6X22

92153-1331

$10.30

92161

DAMPER

92161-0668

$30.15

92161A

DAMPER

92161-0672

$7.60

92170

CLAMP

92170-1577

$3.83
