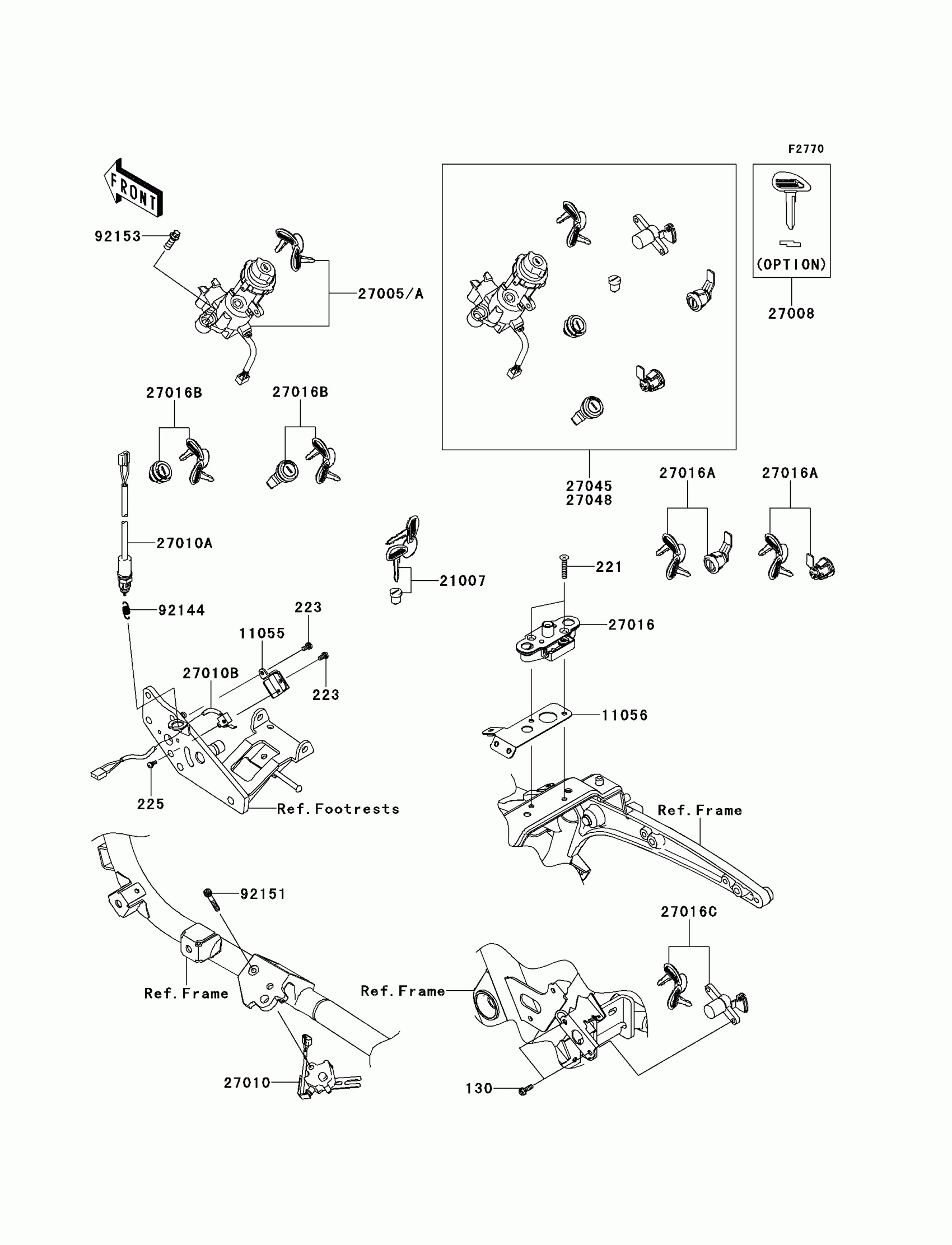

Kawasaki VULCAN 1700 VAQUERO (Canadian) Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

221

SCREW-CSK-CROS,6X30

221AA0630

$2.03

223

SCREW-PAN-WS-CROS,5X10

223AB0510

$4.12

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

11055

BRACKET,CRUISE CONTROL SWITCH

11055-0609

$11.65

11056

BRACKET

11056-0959

$14.90

21007

ROTOR,LOCK,TANK CAP

21007-5053

$55.22

27005

SWITCH-ASSY-IGNITION

27005-0052

Unavailable

27008

KEY-LOCK,BLANK

27008-1211

$31.78

27010

SWITCH,SIDE STAND

27010-0088

$70.88

27010A

SWITCH,REAR BRAKE

27010-0089

$36.14

27010B

SWITCH,CRUISE CONTROL

27010-0090

$53.68

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$84.75

27016A

LOCK-ASSY,SIDE BAG

27016-5325

$66.36

27016B

LOCK-ASSY,LID

27016-5358

$67.88

27016C

LOCK-ASSY,SEAT

27016-5360

$68.06

27045

SWITCH-ASSY

27045-5438

$464.75

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92153

BOLT,TORX,8X22

92153-1273

$5.79
