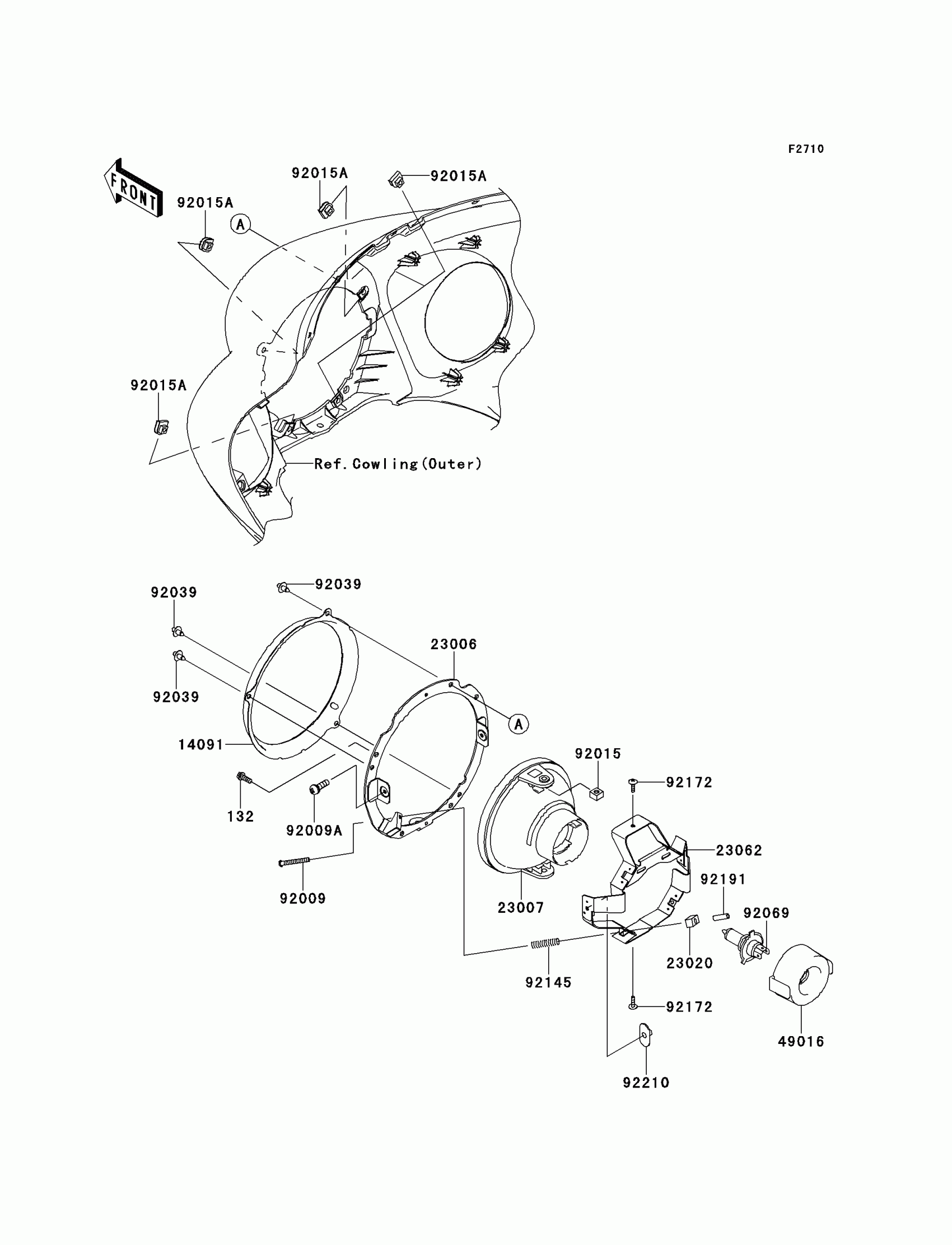

Kawasaki VULCAN 1700 VAQUERO (Canadian) Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

14091

COVER,RETAINER

14091-1620

$95.31

23006

RIM-LAMP

23006-0016

$87.29

23007

LENS-COMP,HEAD LAMP

23007-1396

$147.32

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$50.47

49016

COVER-SEAL,SOCKET

49016-1203

$12.14

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.91

92009A

SCREW,5X16

92009-1879

$1.06

92015

NUT,5MM

92015-1157

$4.87

92015A

NUT,CLIP,6MM

92015-1904

$6.57

92039

RIVET

92039-0083

$2.75

92069

BULB,12V 60/55W,H4

92069-0050

$18.29

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.96

92172

SCREW,TAPPING,4X16

92172-0391

$3.29

92191

TUBE,3.5X5.5X19

92191-1217

$2.44

92210

NUT,SPECIAL,5MM

92210-1060

$2.46
