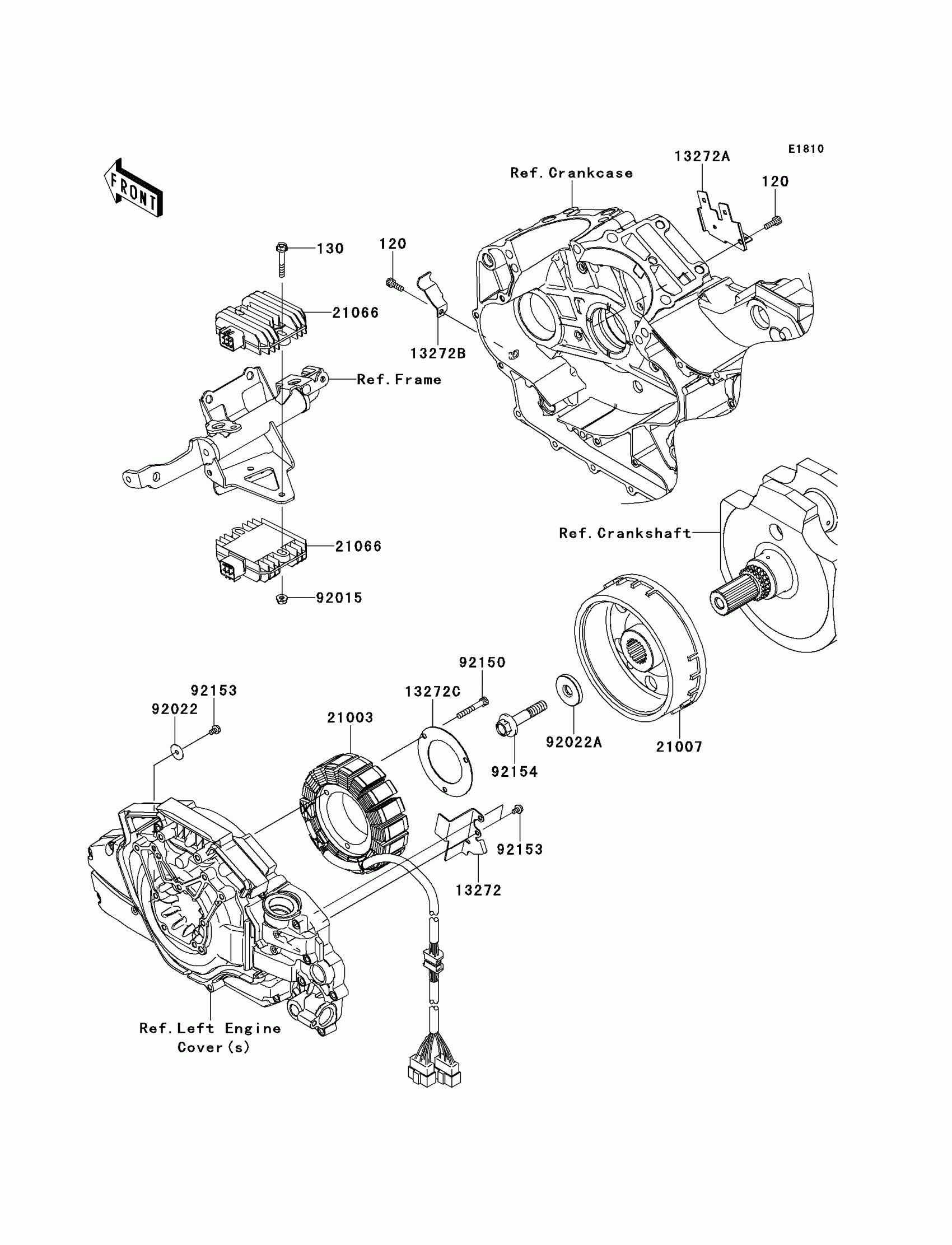

Kawasaki VULCAN 1700 VAQUERO (Canadian) Generator Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CA0616

$1.77

130

BOLT-FLANGED,6X40

130BB0640

$2.53

13272

PLATE,INNER GENE. COVER

13272-0320

$9.31

13272A

PLATE,COUPLER

13272-0426

$8.14

13272B

PLATE,FR RH CASE

13272-0427

$4.66

13272C

PLATE,STATOR

13272-0683

$4.66

21003

STATOR

21003-0076

$600.18

21007

ROTOR

21007-0116

$1,014.78

21066

REGULATOR-VOLTAGE

21066-0043

$248.30

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,5.5X20X1.2

92022-104

$3.29

92022A

WASHER,12X40X6

92022-1904

$13.51

92150

BOLT,SOCKET,6X40

92150-1958

$4.85

92153

BOLT,5X10

92153-0687

$2.15

92154

BOLT,ROTOR,12X60

92154-0032

$30.73
