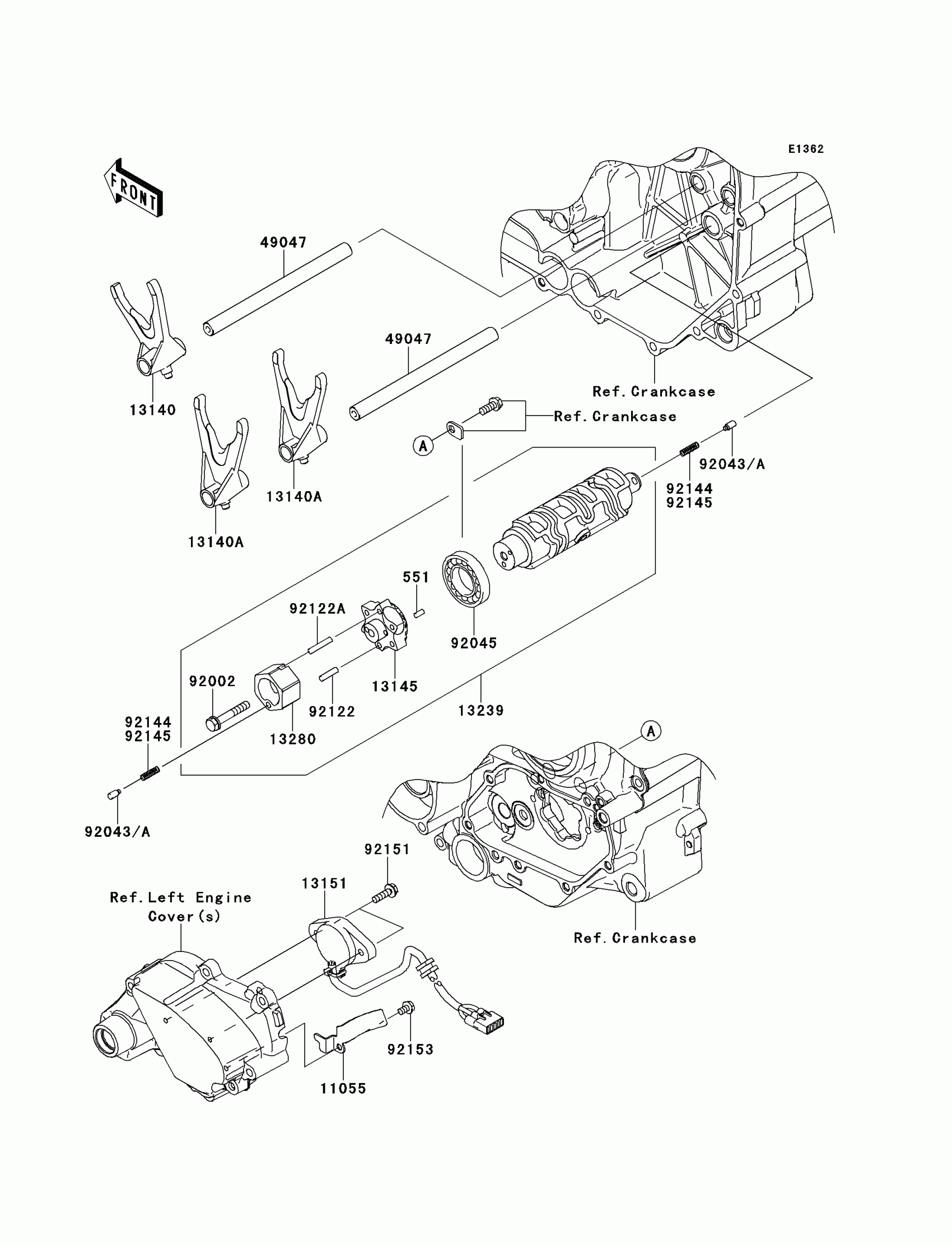

Kawasaki VULCAN 1700 VAQUERO (Canadian) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

551

PIN-DOWEL,4X8

551A0408

$0.78

11055

BRACKET

11055-0525

$7.60

13140

FORK-SHIFT,INPUT

13140-0054

$107.15

13140A

FORK-SHIFT,OUTPUT

13140-0060

$107.15

13145

CAM-CHANGE DRUM

13145-0041

$65.84

13151

SWITCH-COMP,NEUTRAL

13151-0041

$146.46

13239

DRUM-ASSY-CHANGE

13239-0033

$238.66

13280

HOLDER

13280-0106

$29.32

49047

ROD-SHIFT

49047-0002

$25.81

92002

BOLT,6X38

92002-1431

$5.52

92043

92043-0085

$7.47

92043A

92043-0792

$6.75

92045

BEARING-BALL,16005

92045-1045

$28.25

92122

ROLLER,4.5X17.8

92122-0001

$6.18

92122A

ROLLER,4.5X23.8

92122-0010

$6.07

92144

SPRING

92144-1245

$4.26

92145

SPRING

92145-1414

$4.14

92151

BOLT

92151-1776

$2.34

92153

BOLT,5X10

92153-0687

$2.61
