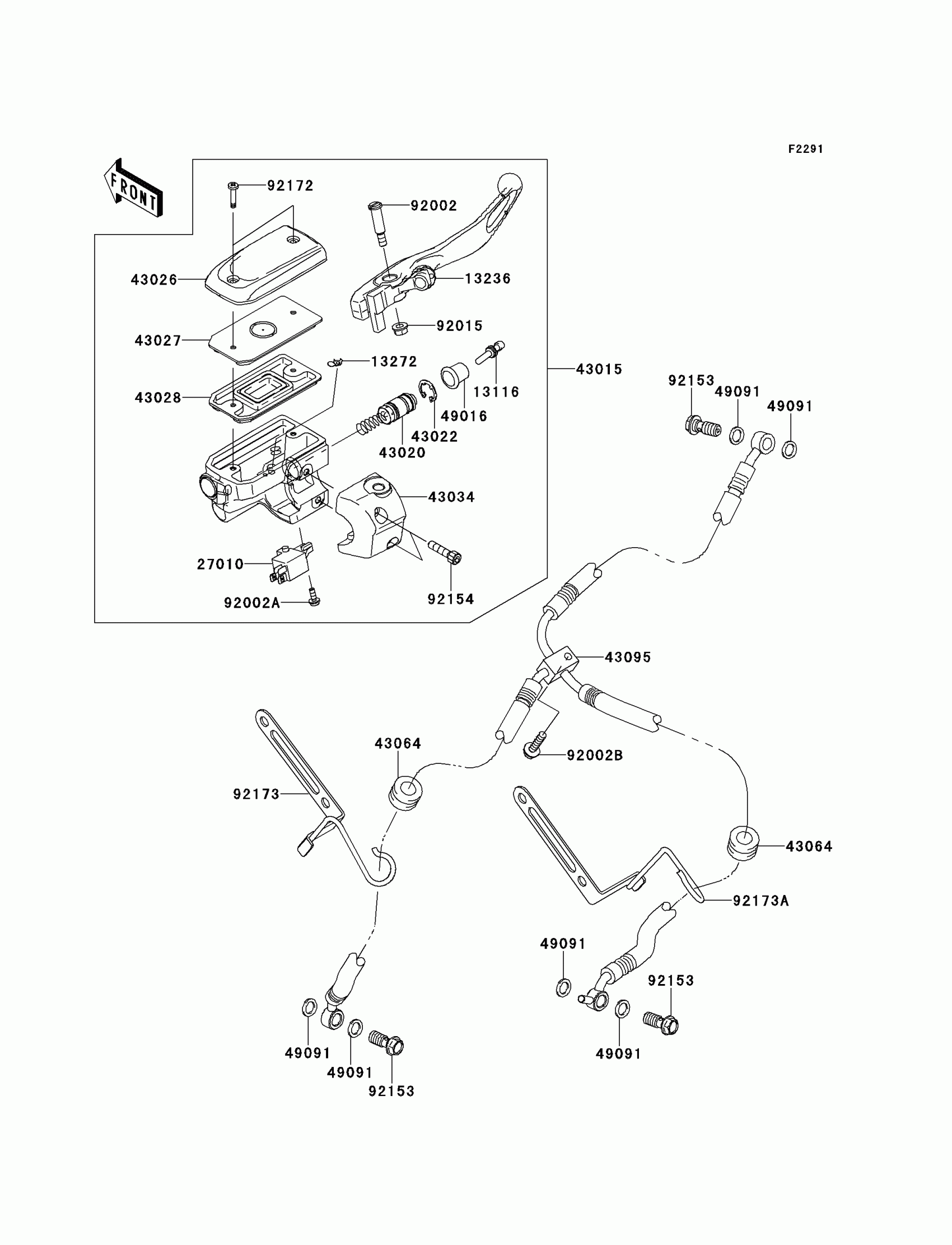

Kawasaki VULCAN 1700 VAQUERO (Canadian) Front Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-0039

$23.16

13236

LEVER-COMP,FRONT BRAKE

13236-0166

$52.52

13272

PLATE

13272-0573

$7.60

27010

SWITCH,CRUISE CONTROL CANCEL

27010-1232

$50.19

43015

CYLINDER-ASSY-MASTER

43015-0163

$404.20

43020

PISTON-COMP-BRAKE

43020-0014

$65.94

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0021

$54.11

43027

PLATE-DIAPHRAGM

43027-0004

$8.39

43028

DIAPHRAGM

43028-0010

$26.43

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0041

$39.34

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43095

HOSE-BRAKE,FR

43095-0478

$121.08

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,6X26.6

92002-1912

$4.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,SOCKET

92154-0167

$7.60

92172

SCREW

92172-0492

$3.65

92173

CLAMP,FRONT FENDER,LH

92173-0073

$26.04

92173A

CLAMP,FRONT FENDER,RH

92173-0074

$24.84
