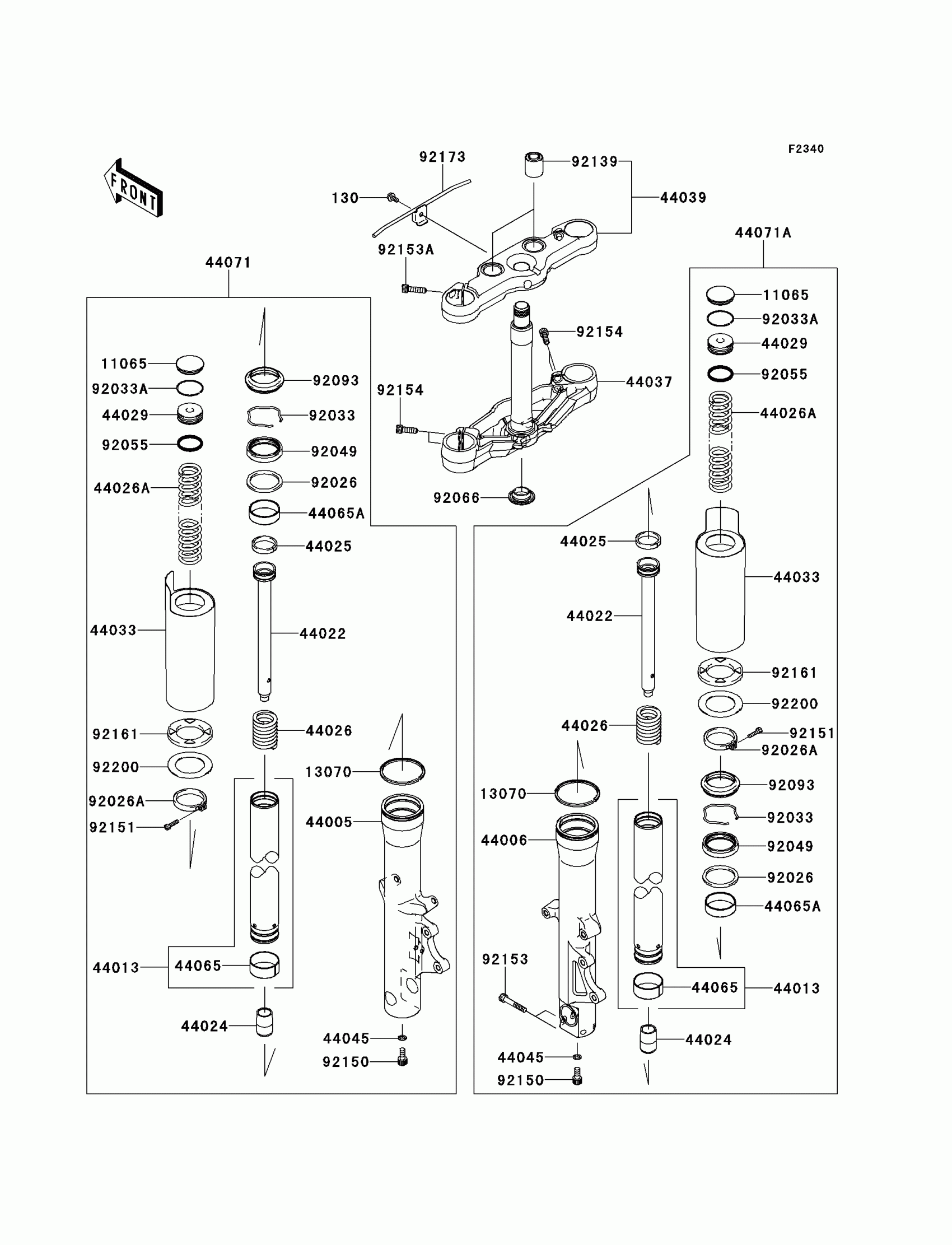

Kawasaki VULCAN 1700 VAQUERO (Canadian) Front Fork Diagram
#
130
BOLT-FLANGED,6X12
130BB0612
$2.34
11065
CAP,FORK TOP
11065-0717
$13.37
13070
GUIDE,CASE
13070-0103
$11.61
44005
PIPE-LEFT FORK OUTER
44005-0081
$462.48
44006
PIPE-RIGHT FORK OUTER
44006-0077
$462.48
44013
PIPE-FORK INNER
44013-0124
$438.96
44022
CYLINDER-FORK
44022-0026
$112.93
44024
CAP-OIL-LOCK
44024-0006
$12.94
44025
RING-FORK PISTON
44025-0005
$10.09
44026
SPRING-FRONT FORK
44026-0129
$25.91
44026A
SPRING-FRONT FORK
44026-0138
$95.22
44029
SEAT-FORK SPRING
44029-0012
$96.11
44033
COVER-FORK
44033-0068
$142.80
44037
HOLDER-FORK UNDER
44037-0086
$488.88
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0108-18R
$352.61
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK,INNER TUBE
44065-0023
$25.53
44065A
BUSHING-FRONT FORK
44065-0024
$25.53
44071
DAMPER-ASSY,LH
44071-0718
$1,087.83
44071A
DAMPER-ASSY,RH
44071-0719
$1,087.83
92026
SPACER
92026-0132
$5.29
92026A
SPACER
92026-0133
$35.12
92033
RING-SNAP
92033-0060
$7.73
92033A
RING-SNAP
92033-1303
$7.73
92049
SEAL-OIL
92049-0118
$18.76
92055
RING-O
92055-0169
$3.21
92066
PLUG
92066-0032
$11.66
92093
SEAL,DUST
92093-0147
$16.09
92139
BUSHING
92139-0285
$36.14
92150
BOLT,SOCKET,8X18
92150-1432
$9.91
92151
BOLT,SOCKET,4X16
92151-1356
$2.46
92153
BOLT
92153-0499
$9.51
92153A
BOLT,SOCKET,8X30
92153-0500
$10.86
92154
BOLT,SOCKET
92154-0113
$3.71
92161
DAMPER
92161-0683
$15.62
92173
CLAMP
92173-0752
$14.90
92200
WASHER
92200-0468
$7.79
