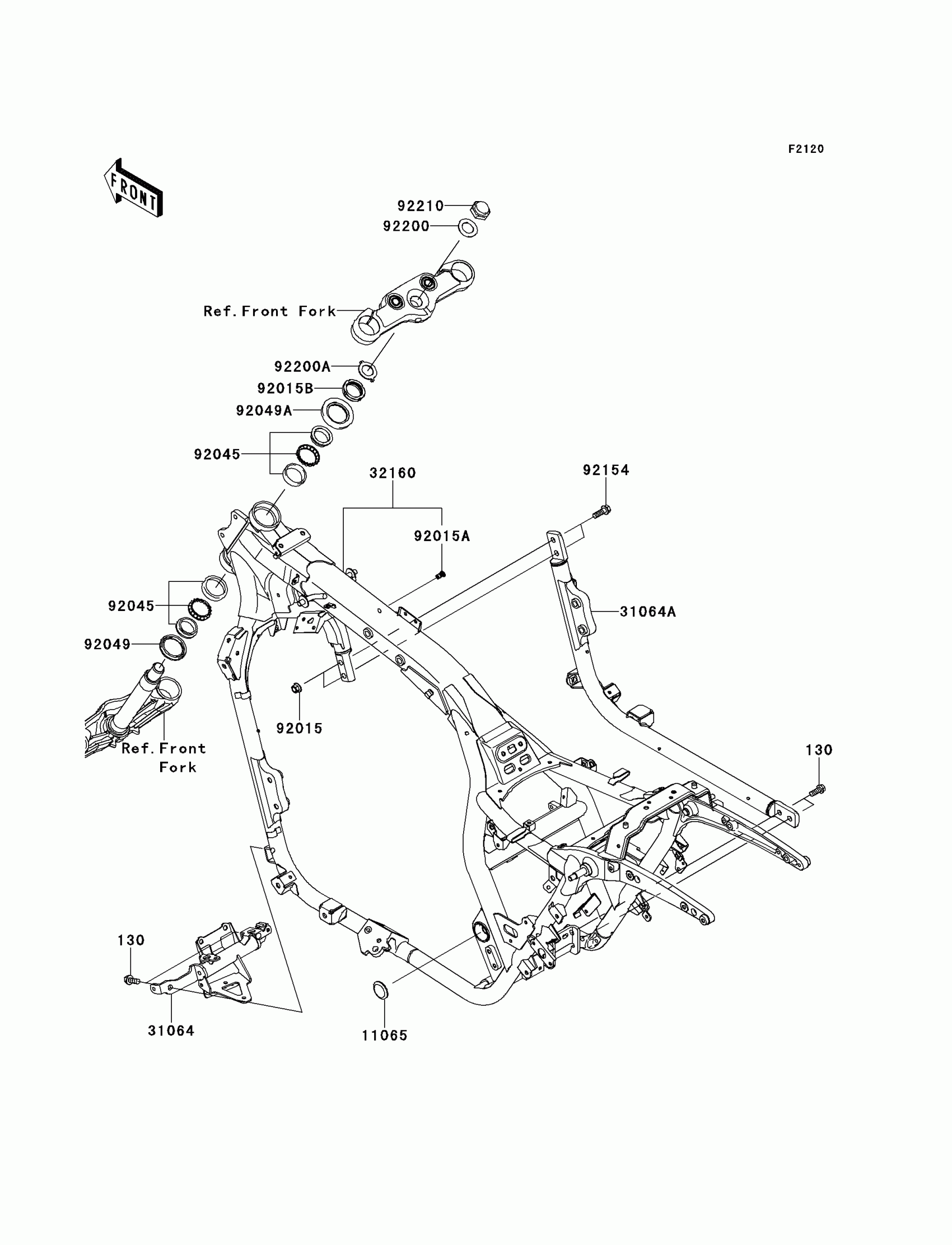

Kawasaki VULCAN 1700 VAQUERO (Canadian) Frame Diagram

Description

Price

130

BOLT-FLANGED,10X25

130BB1025

$5.25

11065

CAP

11065-0320

$6.55

31064

PIPE-COMP,F.S.BLACK

31064-0207-18R

$120.39

31064A

PIPE-COMP,DOWNTUBE,RH,BLACK

31064-0209-18R

$535.75

32160

FRAME-COMP,F.S.BLACK

32160-0536-18R

$2,646.47

92015

NUT,FLANGED,10MM

92015-1727

$4.31

92015A

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92015B

NUT,STEERING STEM,35MM

92015-1848

$44.08

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

$19.64

92049A

SEAL-OIL,MX043N2

92049-1483

$20.39

92154

BOLT,FLANGED,10X30

92154-0156

$3.21

92200

WASHER,25.5X42X2.3

92200-0105

$4.56

92200A

WASHER,CLAW,25.5X40X2.3

92200-1083

$6.57

92210

NUT,CAP,25MM

92210-1166

$23.99
