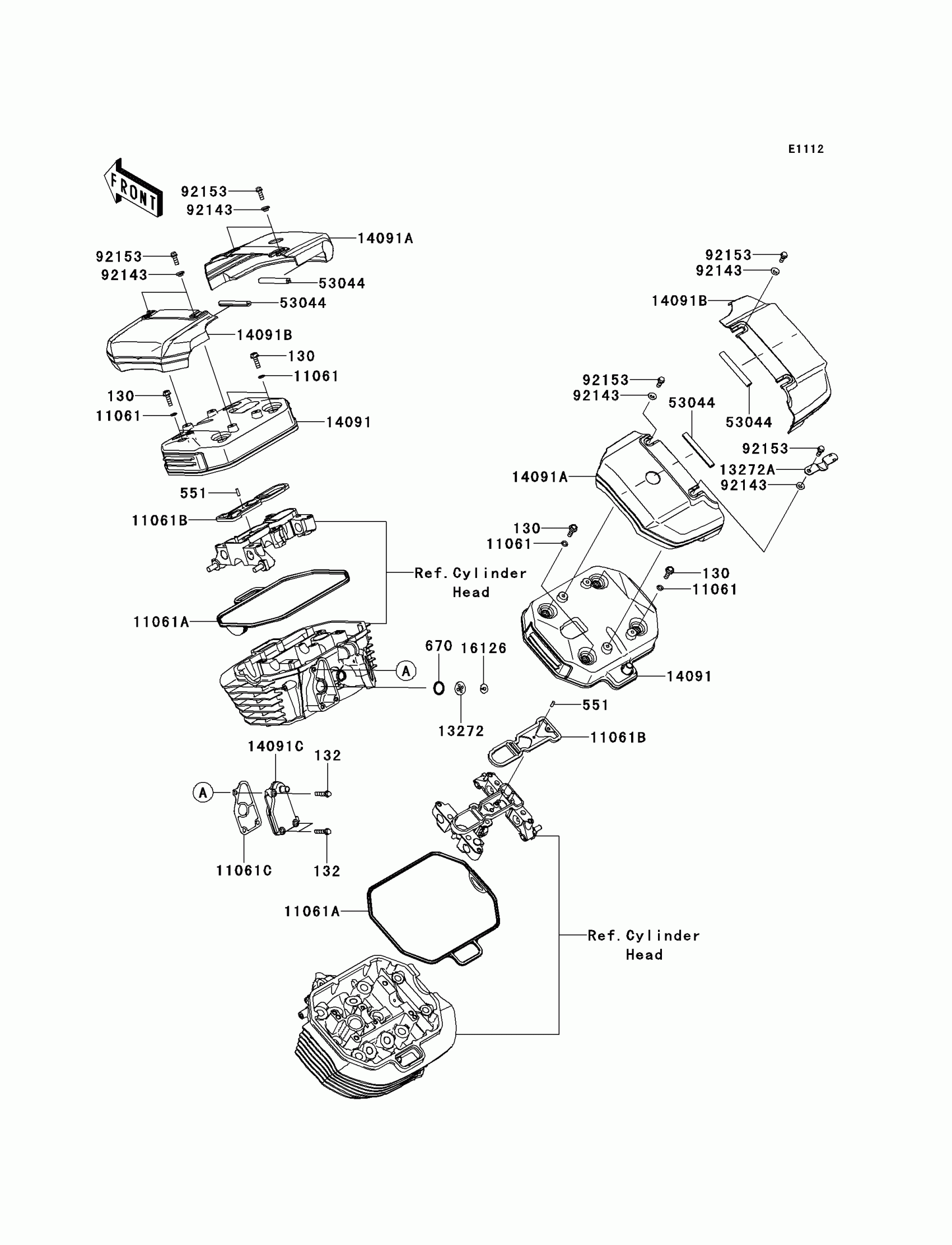

Kawasaki VULCAN 1700 VAQUERO (Canadian) Cylinder Head Cover Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

$1.28

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$1.57

551

PIN-DOWEL

551A0412

$1.39

670

O RING,18MM

670D2018

$1.39

11061

GASKET

11061-0107

$1.82

11061A

GASKET,HEAD COVER

11061-0331

$36.26

11061B

GASKET,ROCKER CASE COVER

11061-0332

$12.44

11061C

GASKET,BREATHER COVER

11061-0334

$7.42

13272

PLATE

13272-0307

$3.27

13272A

PLATE

13272-0711

$8.25

14091

COVER,HEAD,INSIDE

14091-0966

$196.03

14091A

COVER,HEAD,OUTSIDE

14091-0967

$205.03

14091B

COVER,HEAD,OUTSIDE

14091-0968

$205.03

14091C

COVER,BREATHER

14091-0969

$37.15

16126

VALVE

16126-2051

$4.58

53044

TRIM,L=75

53044-0009

$3.51

92143

COLLAR

92143-1331

$3.01

92153

BOLT,6X16

92153-0825

$2.15
