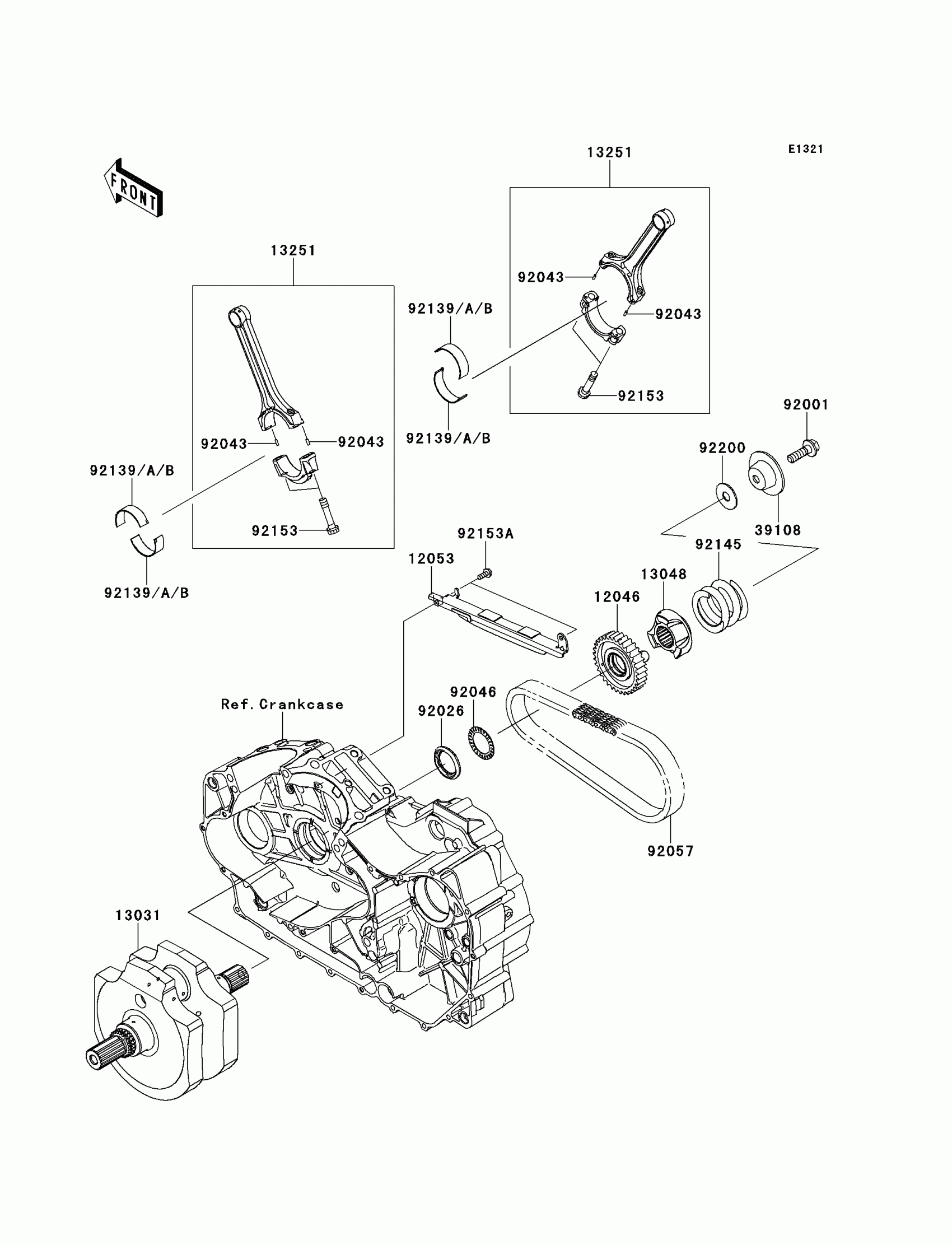

Kawasaki VULCAN 1700 VAQUERO (Canadian) Crankshaft Diagram

Description

Price

12046

SPROCKET,PRIMARY,33T

12046-0065

$89.27

12053

GUIDE-CHAIN,PRIMARY,UPP

12053-0122

$105.78

13031

CRANKSHAFT-COMP

13031-0104

$1,408.59

13048

CAM-DAMPER

13048-0017

$107.66

13251

ROD-ASSY-CONNECTING

13251-0026

$396.28

39108

RETAINER-SPRING

39108-0014

$60.11

92001

BOLT,FLANGED,12X40

92001-1146

$9.91

92026

SPACER

92026-0145

$36.79

92043

PIN,3X8.5

92043-0033

$1.54

92046

BEARING-NEEDLE

92046-0033

$13.69

92057

CHAIN,PRIMARY,89HV303CF-92

92057-0155

$312.02

92139

BUSHING,CONNECTING ROD,BLUE

92139-0225

$21.82

92139A

BUSHING,CONNECTING ROD,BLACK

92139-0226

Unavailable

92139B

BUSHING,CONNECTING ROD,BROWN

92139-0227

Unavailable

92145

SPRING,58X11X46.5

92145-0592

$72.55

92153

BOLT,CONNECTING ROD

92153-0314

$9.21

92153A

BOLT,FLANGED,6X16

92153-0713

$2.12

92200

WASHER,12X34X1.6

92200-0478

$3.71
