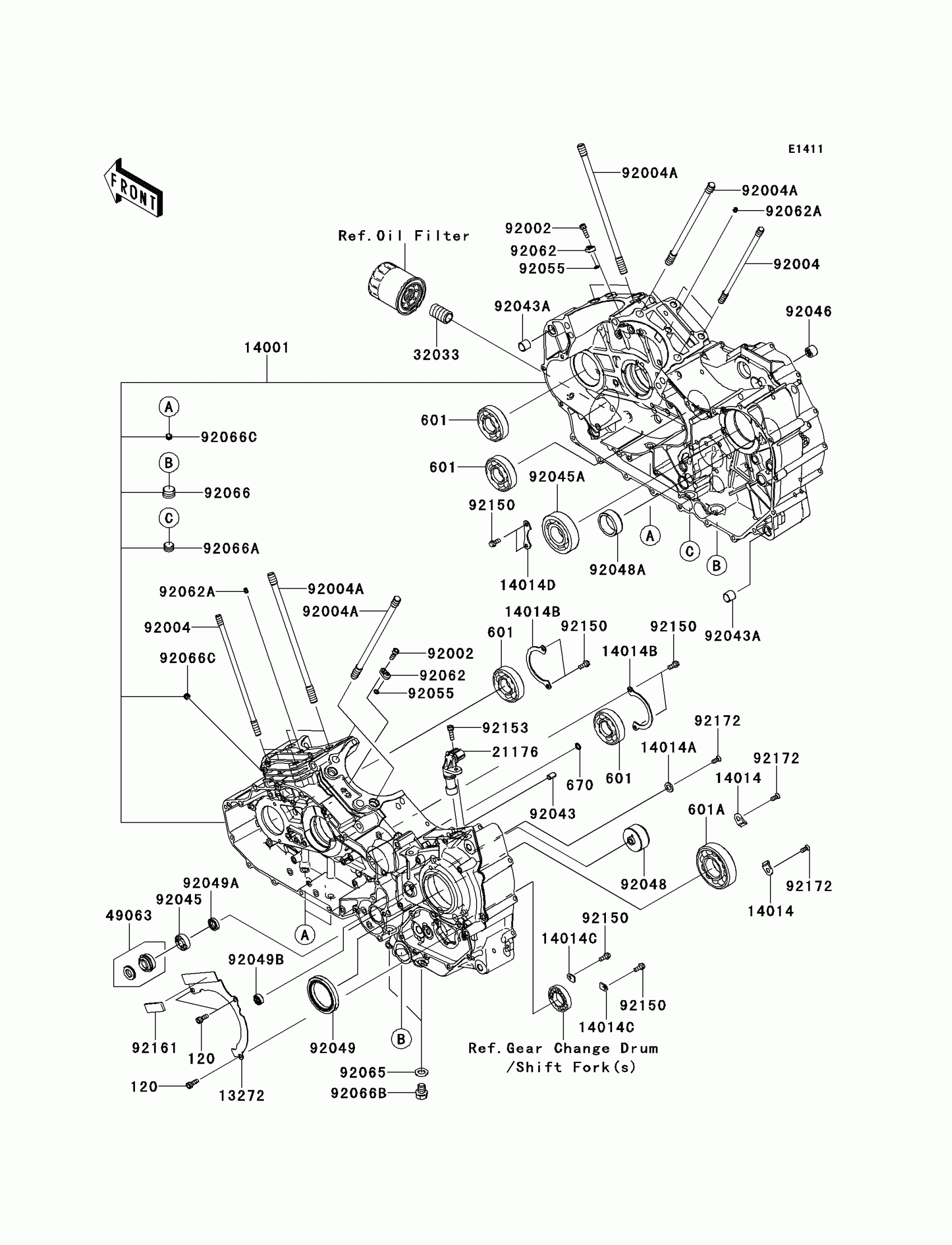

Kawasaki VULCAN 1700 VAQUERO (Canadian) Crankcase Diagram
#
120
BOLT-SOCKET,6X16
120CA0616
$2.49
601
BEARING-BALL,#6305
601A6305
$18.63
601A
BEARING-BALL
601A6307
$37.57
670
O RING,8MM
670D1508
$4.31
13272
PLATE,EG OUTPUT
13272-0319
$8.10
14001
SET-CRANKCASE
14001-0134
$1,975.76
14014
PLATE-POSITION
14014-0003
$4.69
14014A
PLATE-POSITION,9.5X17X2.3
14014-0019
$3.90
14014B
PLATE-POSITION,BALANCER
14014-0033
$5.59
14014C
PLATE-POSITION,CHANGE DRUM
14014-0034
$5.59
14014D
PLATE-POSITION
14014-1084
$6.47
21176
SENSOR,SPEED
21176-0042
$131.52
32033
PIPE,OIL FILTER
32033-1535
$12.96
49063
SEAL-MECHANICAL
49063-1055
$20.06
92002
BOLT,SOCKET,5X18
92002-1805
$4.69
92004
STUD,10X201
92004-0038
$20.08
92004A
STUD,12X217
92004-0039
$28.58
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,13X16X14
92043-1608
$5.00
92045
BEARING-BALL,6001JRXLLU/5K
92045-1151
$27.31
92045A
BEARING-BALL,6306SH2
92045-1190
$40.80
92046
BEARING-NEEDLE,HK1212V11
92046-1292
$16.92
92048
RACE
92048-0017
$35.44
92048A
RACE
92048-1103
$24.36
92049
SEAL-OIL,50X68X9
92049-0107
$26.40
92049A
SEAL-OIL,SC 12X22X5
92049-1228
$9.28
92049B
SEAL-OIL
92049-1566
$7.65
92055
RING-O,5.5X1.5
92055-1339
$4.32
92062
NOZZLE,OIL JET
92062-0016
$9.61
92062A
NOZZLE,6X8,YELLOW
92062-1080
$8.58
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,PT1/2X12.5
92066-0002
$8.98
92066A
PLUG,PT3/8X10
92066-0003
$3.31
92066B
PLUG,12X15
92066-0079
$6.02
92066C
PLUG,PT1/8X7
92066-1227
$5.90
92150
BOLT,6X14
92150-1916
$3.32
92153
BOLT,SOCKET,6X20
92153-1031
$2.15
92161
DAMPER
92161-0124
$3.44
92172
SCREW,6X14
92172-0187
$1.78
