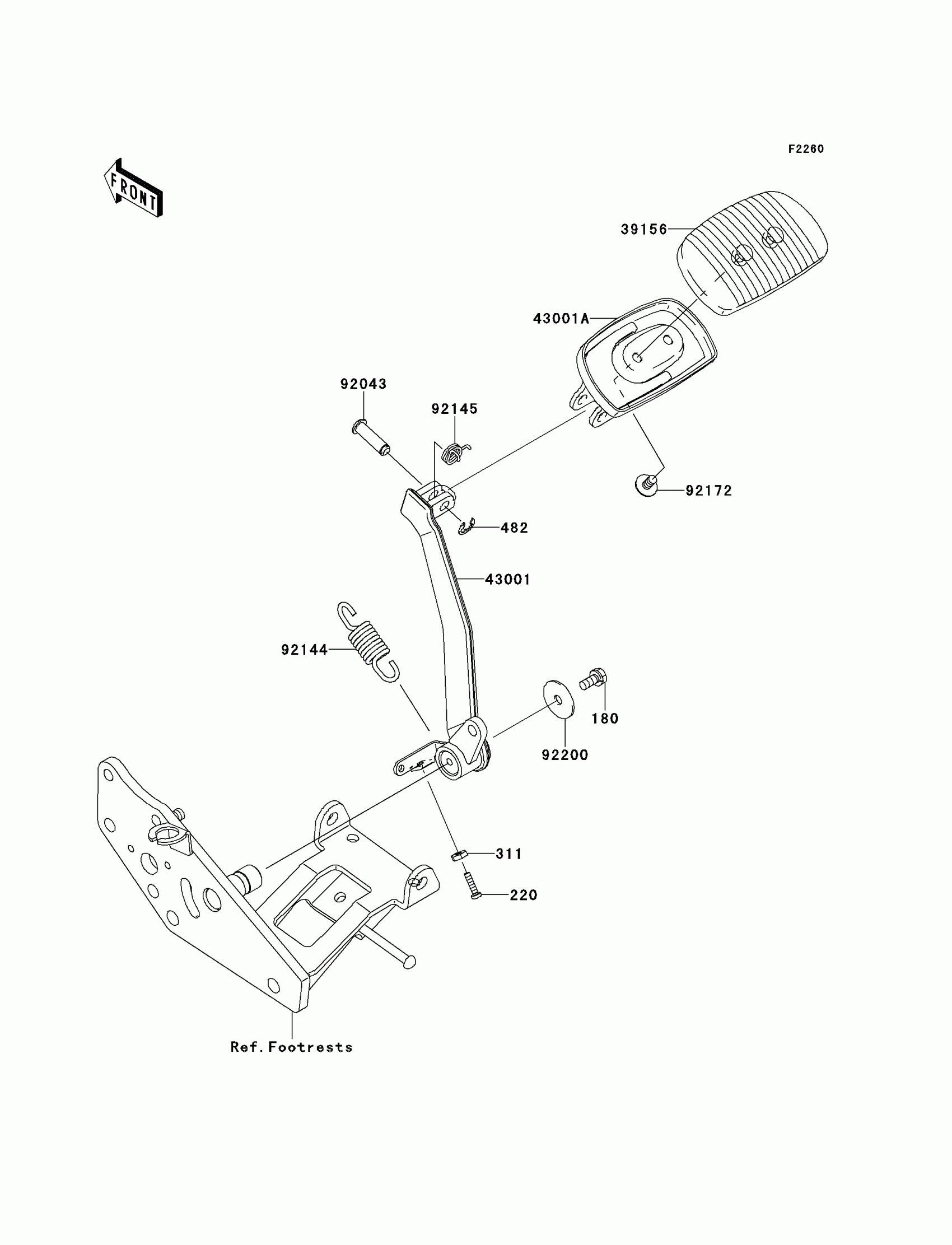

Kawasaki VULCAN 1700 VAQUERO (Canadian) Brake Pedal/Torque Link Diagram

Description

Price

180

BOLT-UPSET-WS,6X14

180BA0614

$1.28

220

SCREW-PAN-CROS,4X16

220AB0416

$1.81

311

NUT-HEX,4MM

311AB0400

$0.62

482

CIRCLIP-TYPE-E

482EA7000

$3.92

39156

PAD,BRAKE PEDAL

39156-0045

$38.32

43001

LEVER-BRAKE

43001-0708

$115.93

43001A

LEVER-BRAKE

43001-0709

$32.10

92043

PIN,8X24.5

92043-0047

$7.95

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

$9.43

92145

SPRING

92145-0168

$7.88

92172

SCREW,6X10

92172-0098

$2.80

92200

WASHER,7X28X1.6

92200-0279

$1.78
