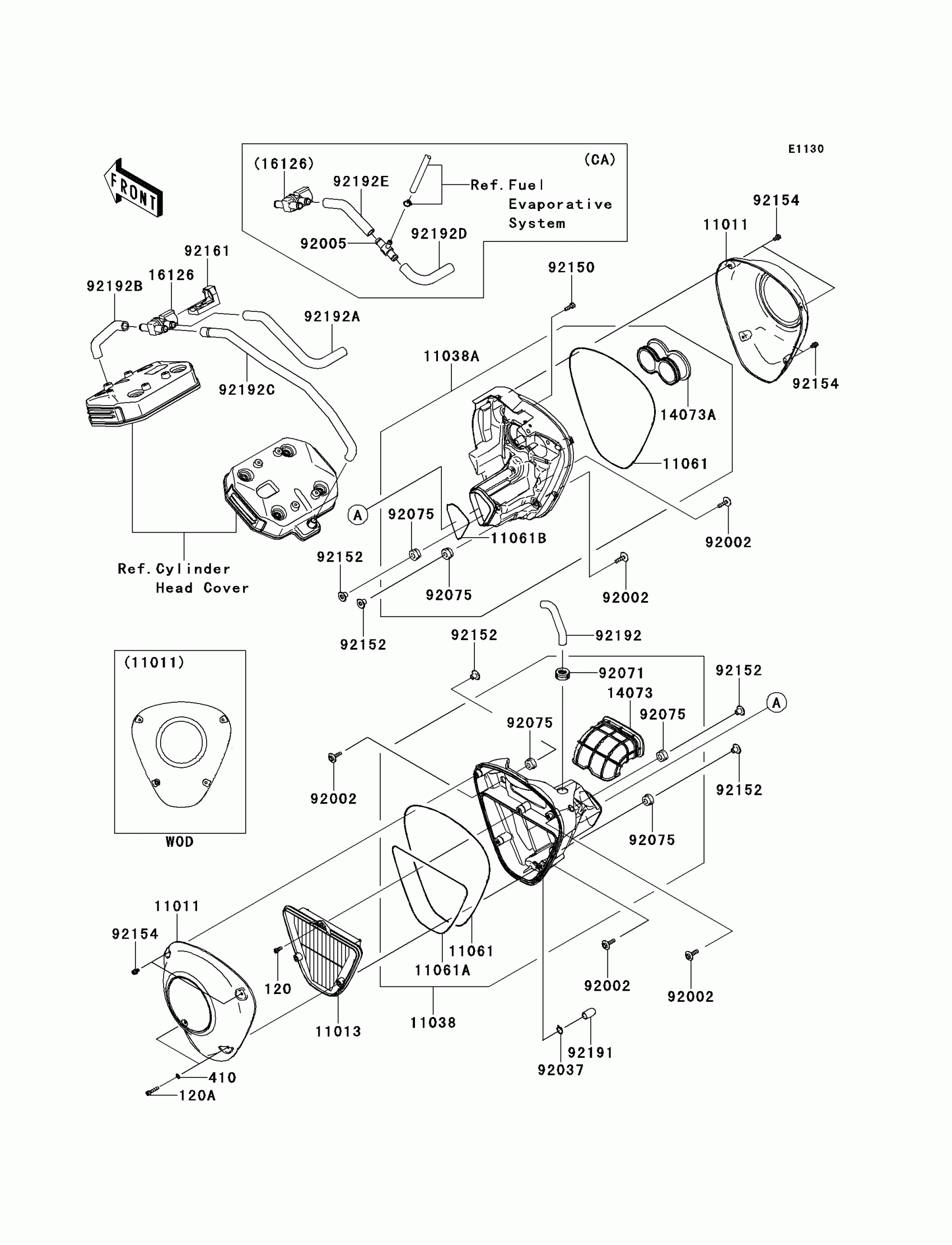

Kawasaki VULCAN 1700 VAQUERO (Canadian) Air Cleaner Diagram

Description

Price

120

BOLT-SOCKET,5X12

120CA0512

$1.19

120A

BOLT-SOCKET,5X25

120R0525

$1.81

410

W-PLAIN-S,5MM

410S0500

$1.20

11011

CASE-AIR FILTER,F.S.BLACK

11011-0172-18R

Unavailable

11013

ELEMENT-AIR FILTER

11013-0031

$38.30

11038

CASE-ASSY-AIR FILTER,LH

11038-0022

$111.82

11038A

CASE-ASSY-AIR FILTER,RH

11038-0023

$111.82

11061

GASKET,3X812

11061-0346

$7.58

11061A

GASKET,3X630

11061-0347

$8.19

11061B

GASKET,3X222

11061-0367

$4.81

14073

DUCT,INTAKE

14073-0202

$24.56

14073A

DUCT,THROBO. FUNNEL

14073-0203

$30.46

16126

VALVE,AIR SWITCHING

16126-1437

$165.68

92002

BOLT,6X25

92002-1135

$3.85

92037

CLAMP,14.5MM

92037-1900

$3.71

92071

GROMMET,AIR SUCTION VALVE

92071-1249

$3.68

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X18

92150-1645

$2.74

92152

COLLAR,6.3X10X12

92152-0694

$4.85

92154

BOLT,SOCKET,5X10

92154-0131

$1.54

92161

DAMPER

92161-0309

$13.81

92191

TUBE

92191-1704

$7.44

92192

TUBE,BREATHER

92192-0650

$4.81

92192A

TUBE,A/C-ASWV

92192-0651

$11.32

92192B

TUBE,FR HEAD-ASWV

92192-0652

$8.44

92192C

TUBE,RR HEAD-ASWV

92192-0653

$19.90
