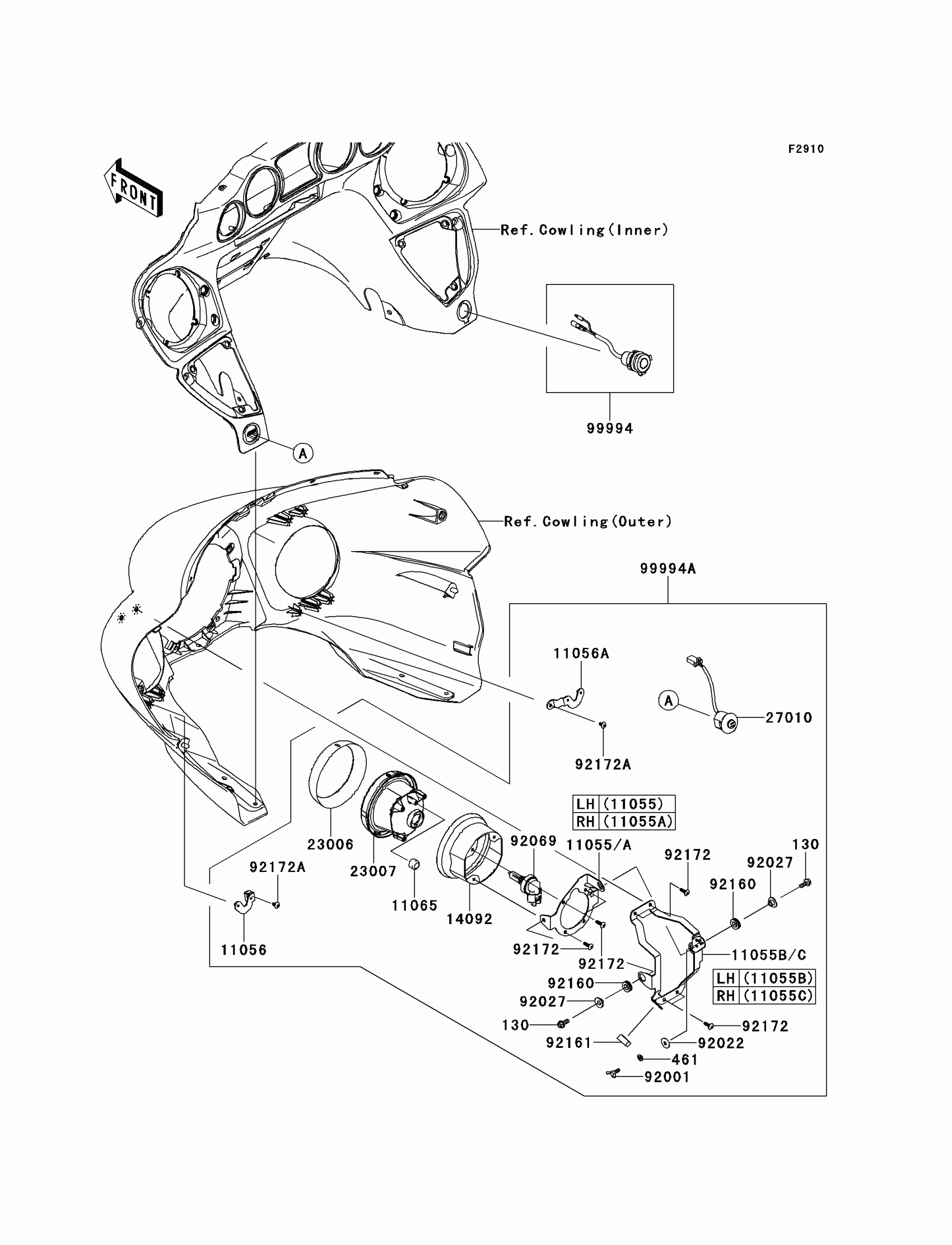

Kawasaki VULCAN 1700 VAQUERO (Canadian) Accessory(Aux Driving Light) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130AA0616

$0.51

461

WASHER-SPRING,6MM

461DA0600

$0.66

11055

BRACKET,AIMING,LH

11055-0730

$20.08

11055A

BRACKET,AIMING,RH

11055-0990

$20.08

11055B

BRACKET,AIMING,LH

11055-1779

$44.23

11055C

BRACKET,AIMING,RH

11055-1780

$44.23

11056

BRACKET,SUB LAMP,LH,LWR

11056-1145

$5.76

11056A

BRACKET,SUB LAMP,RH,LWR

11056-1146

$5.76

11065

CAP

11065-0135

$4.92

14092

COVER

14092-0130

$43.95

23006

RIM-LAMP

23006-0015

$60.57

23007

LENS-COMP,SUB LAMP

23007-0118

$104.68

27010

SWITCH,SUB LAMP

27010-0107

$99.33

92001

BOLT,WING,6X15

92001-1703

$2.36

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,L=7.4

92027-1848

$3.57

92069

BULB,12V 35W,H8

92069-0054

$52.53

92160

DAMPER

92160-1278

$3.35

92161

DAMPER

92161-0718

$1.17

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92172A

SCREW,TAPPING,5X10

92172-0262

$1.04

99994

KIT-ACCESSORY,DC SOCKET

99994-0237

$49.59

99994A

KIT-ACCESSORY,AUX DRIVING LT

99994-0358

$322.43
