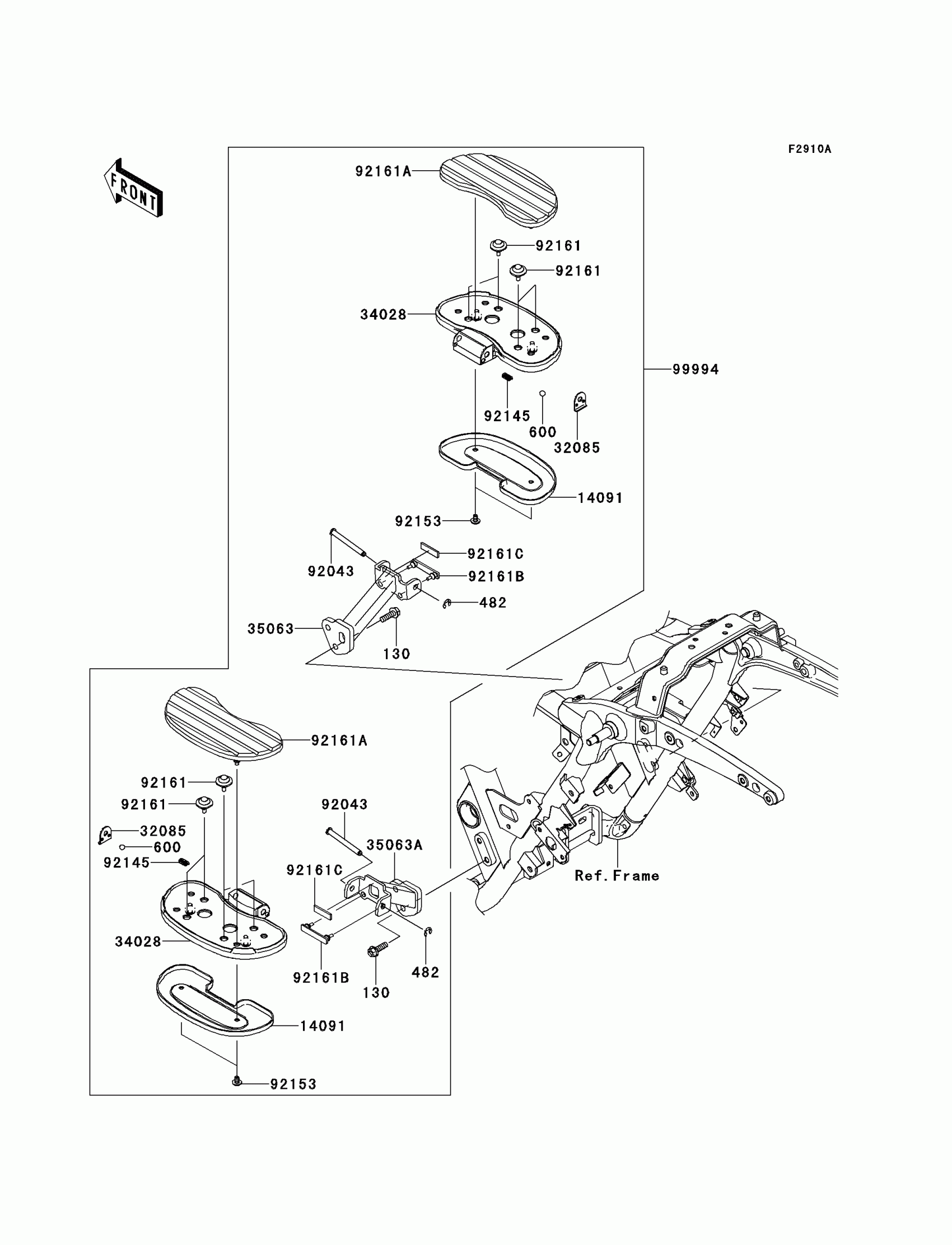

Kawasaki VULCAN® 1700 VAQUERO® Accessory(PASS. Floorbord) Diagram

Description

Price

130

BOLT-FLANGED,8X25

130BB0825

$4.45

482

CIRCLIP-TYPE-E

482EA7000

$3.92

600

BALL-STEEL,1/4

600A0800

$0.62

14091

COVER,REAR STEP

14091-1808

$33.22

32085

STOPPER,REAR STEP

32085-0045

$3.29

34028

STEP,RR

34028-0145

$66.61

35063

STAY,RR,RH,F.S.BLACK

35063-0649-18R

$80.77

35063A

STAY,RR,LH,F.S.BLACK

35063-0669-18R

$80.77

92043

PIN,8X76.5

92043-0054

$2.90

92145

SPRING

92145-1319

$1.81

92153

BOLT,SOCKET,6X10

92153-1096

$2.80

92161

DAMPER,STEP

92161-0766

$5.29

92161A

DAMPER,REAR STEP

92161-0771

$54.46

92161B

DAMPER,REAR STEP

92161-0772

$7.24

92161C

DAMPER,10X35X3

92161-0840

$2.03

99994

KIT-ACCESSORY,PASS. FLOORBORD

99994-0238

$125.72
