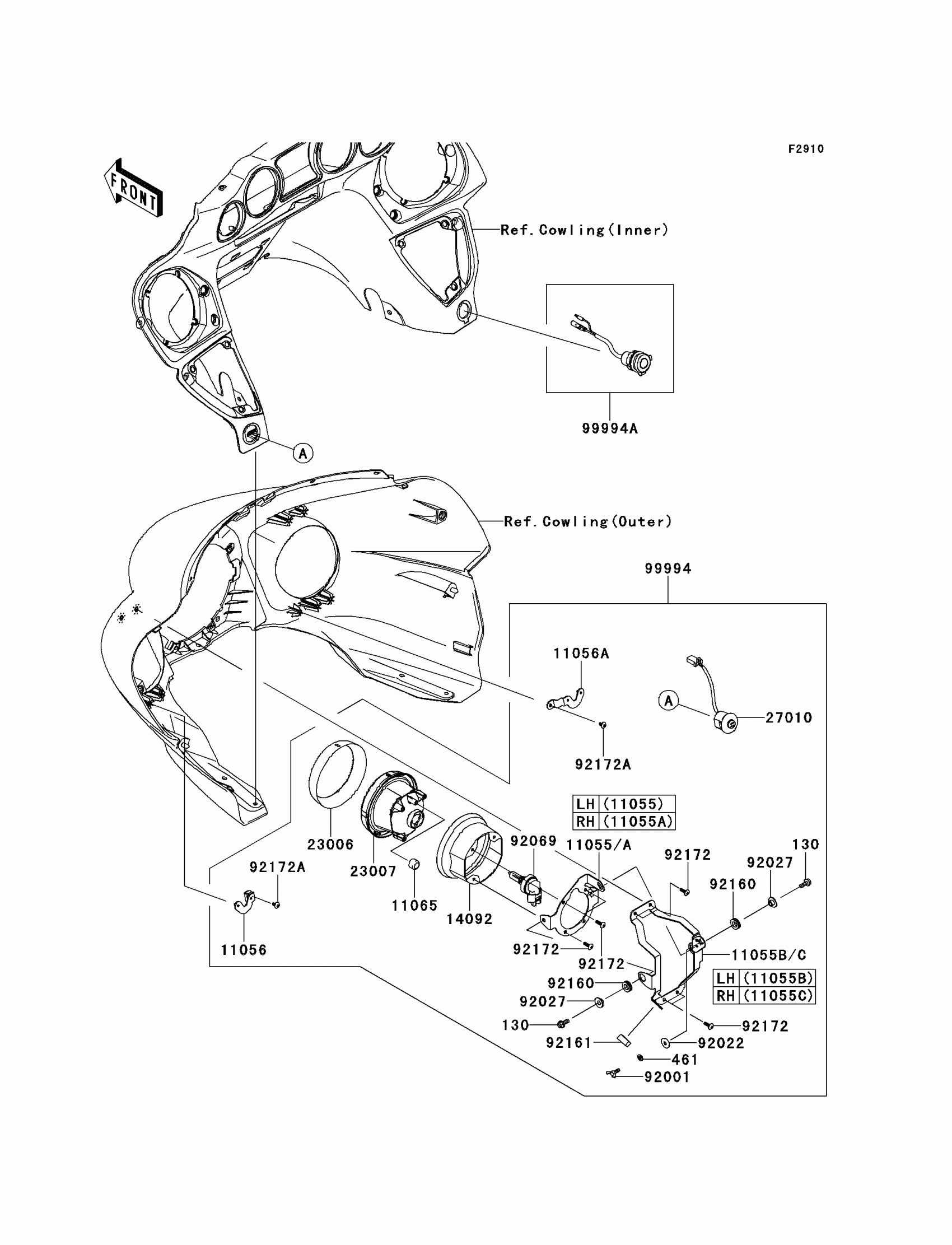

Kawasaki VULCAN® 1700 VAQUERO® Accessory(Aux Driving Light) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130AA0616

$0.56

461

WASHER-SPRING,6MM

461DA0600

$0.71

11055

BRACKET,AIMING,LH

11055-0730

$21.42

11055A

BRACKET,AIMING,RH

11055-0990

$21.42

11055B

BRACKET,AIMING,LH

11055-1779

$43.39

11055C

BRACKET,AIMING,RH

11055-1780

$43.39

11056

BRACKET,SUB LAMP,LH,LWR

11056-1145

$6.63

11056A

BRACKET,SUB LAMP,RH,LWR

11056-1146

$6.63

11065

CAP

11065-0135

$5.60

14092

COVER

14092-0130

$43.12

23006

RIM-LAMP

23006-0015

$59.41

23007

LENS-COMP,SUB LAMP

23007-0118

$116.89

27010

SWITCH,SUB LAMP

27010-0107

$97.45

92001

BOLT,WING,6X15

92001-1703

$3.44

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,L=7.4

92027-1848

$4.69

92069

BULB,12V 35W,H8

92069-0054

$51.53

92160

DAMPER

92160-1278

$4.39

92161

DAMPER

92161-0718

$1.28

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,TAPPING,5X10

92172-1061

Unavailable

99994

KIT-ACCESSORY,AUX DRIVING LT

99994-0236

$318.16

99994A

KIT-ACCESSORY,DC SOCKET

99994-0237

$48.98
