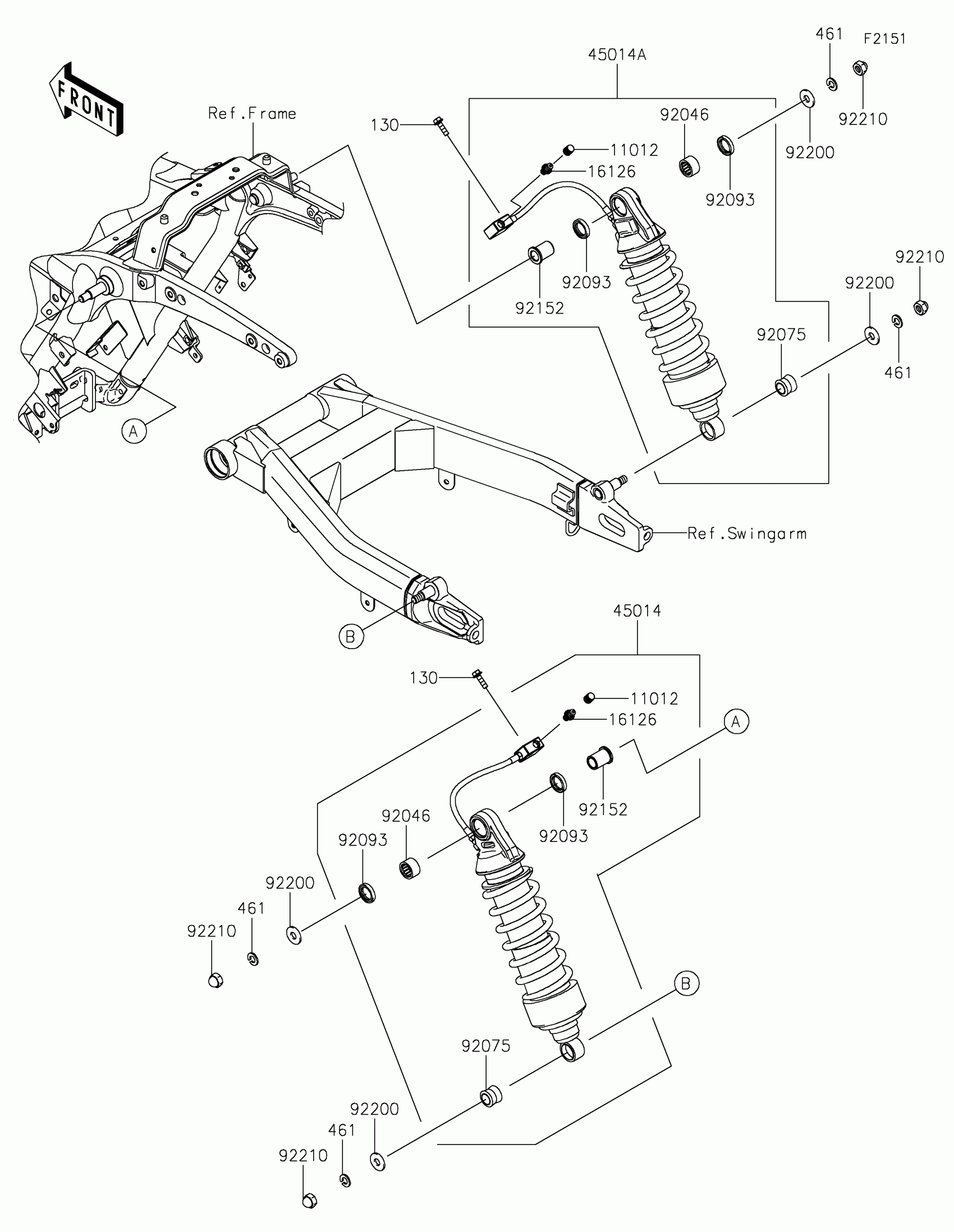

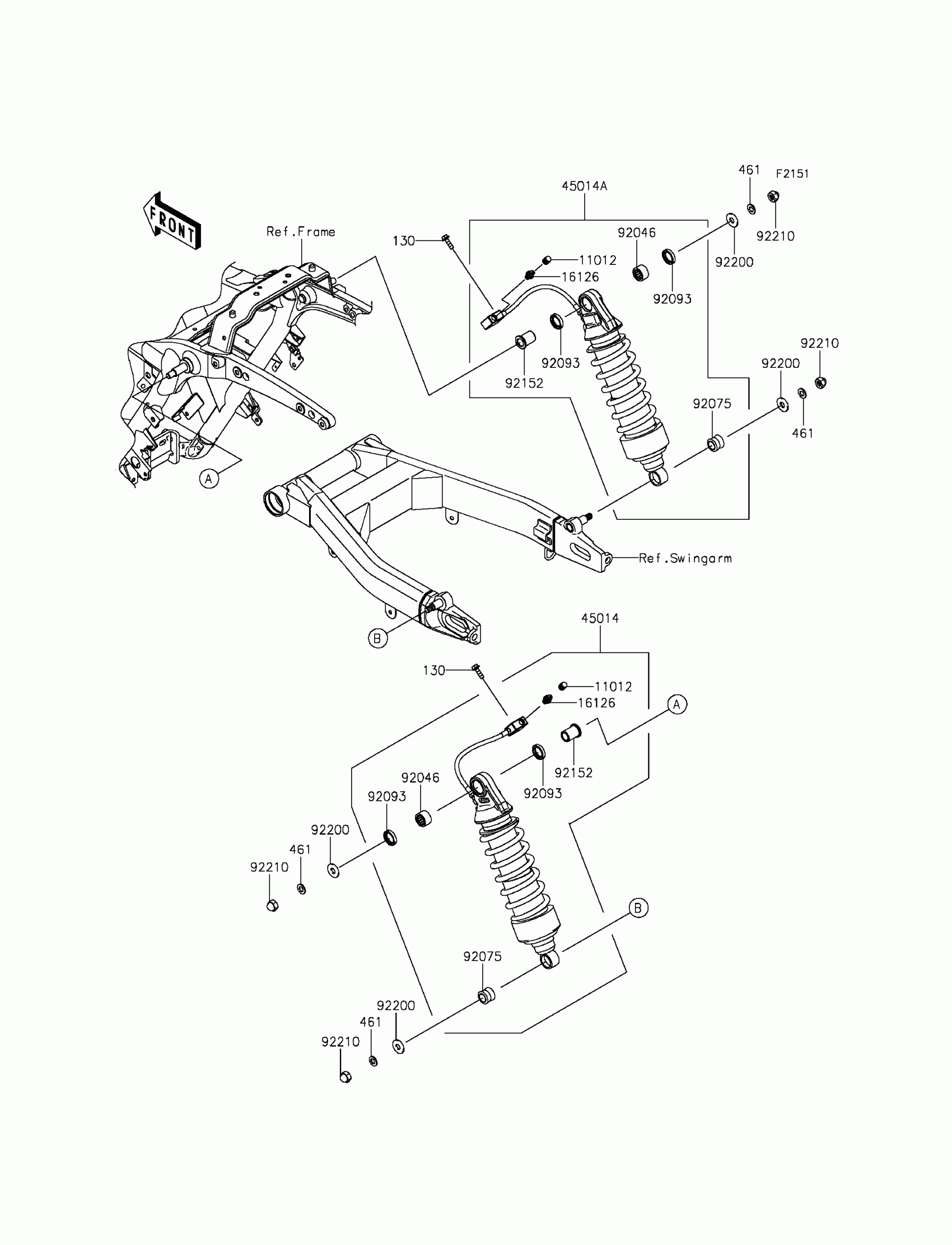

Kawasaki Vulcan 1700 Vaquero ABS Suspension/Shock Absorber Diagram

Description

Price

11012

CAP

11012-1283

$8.51

16126

VALVE,AIR

16126-0013

$32.89

45014

SHOCKABSORBER,LH

45014-0317

$1,005.51

45014A

SHOCKABSORBER,RH

45014-0318

$1,005.51

92046

BEARING-NEEDLE

92046-1296

$9.96

92075

DAMPER,SHOCKABSORBER

92075-1387

$14.90

92093

SEAL

92093-1552

$9.34

92152

COLLAR

92152-1336

$7.65

92200

WASHER,10.5X26X2.5

92200-1565

$2.80

92210

NUT,CAP,10MM

92210-1128

$3.09

130

BOLT-FLANGED,6X25

130AA0625

$0.56

461

WASHER-SPRING,10MM

461S1000

$1.03
