Saddlebags(Side Bag)

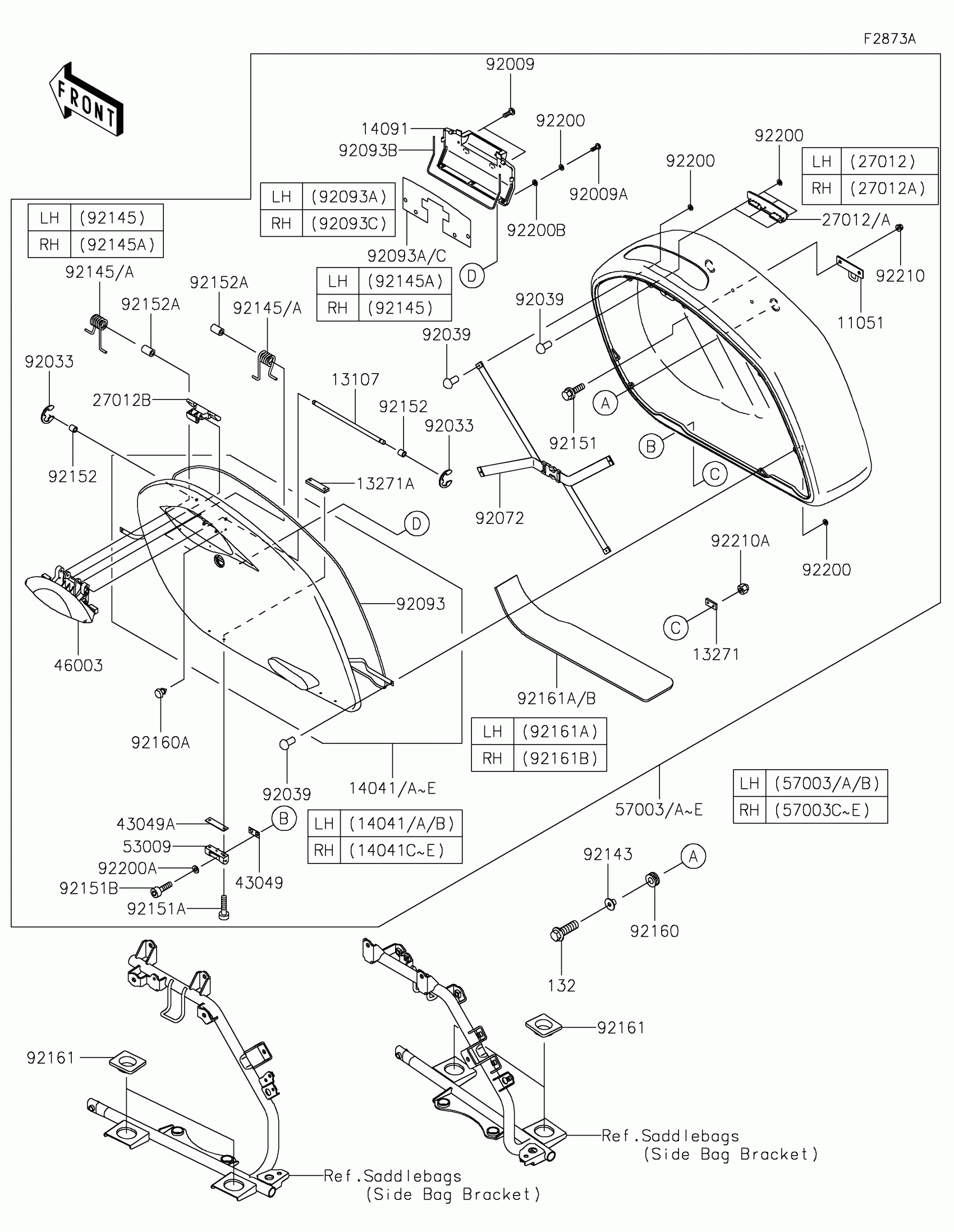

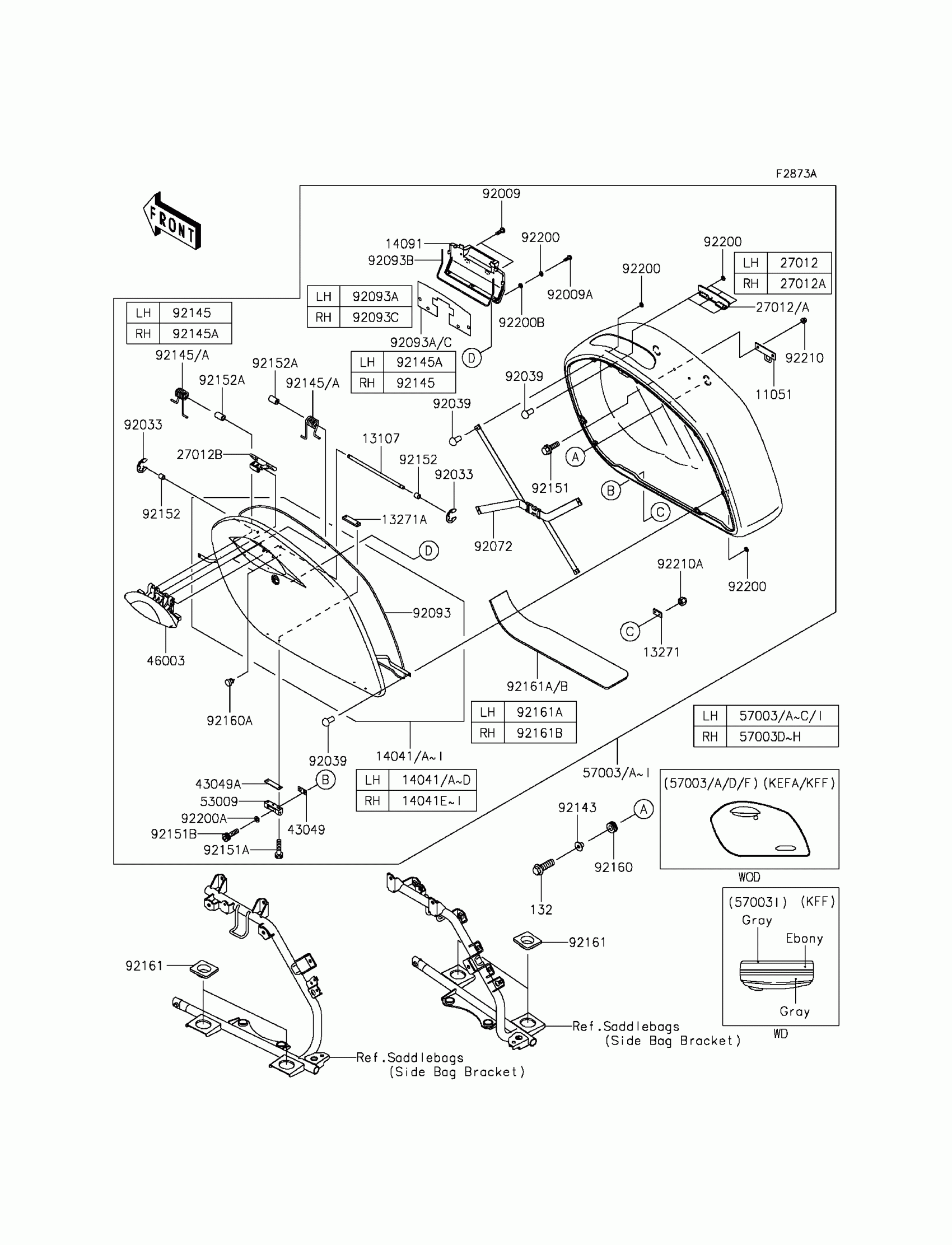

Kawasaki Vulcan 1700 Vaquero ABS Saddlebags(Side Bag) Diagram
#
11051
BRACKET,SIDE BAG BODY
11051-1104
$10.65
13107
SHAFT
13107-1403
$4.69
13271
PLATE
13271-1146
$4.18
13271A
PLATE
13271-1147
$7.95
14041
COVER-COMP,BAG,LH,M.M.T.BLUE
14041-0056-68M
$232.78
14041B
COVER-COMP,BAG,LH,M.B.G.BLACK
14041-0056-76B
$225.68
14041C
COVER-COMP,BAG,RH,M.M.T.BLUE
14041-0057-68M
$243.99
14041E
COVER-COMP,BAG,RH,M.B.G.BLACK
14041-0057-76B
$237.13
14091
COVER,LID MAINTENANCE
14091-1069
$19.32
27012
HOOK,LOCK PLATE,LH
27012-1571
$14.80
27012A
HOOK,LOCK PLATE,RH
27012-1572
$14.80
27012B
HOOK,HANDLE
27012-1575
$19.55
43049
PACKING
43049-1084
$2.44
43049A
PACKING
43049-1086
$2.44
46003
HANDLE,SIDE BAG
46003-1505
$187.83
53009
HINGE,SIDE BAG
53009-1104
$25.83
57003
BAG-ASSY,LH,M.M.T.BLUE
57003-0060-68M
$1,110.70
57003B
BAG-ASSY,LH,M.B.G.BLACK
57003-0060-76B
$1,069.52
57003C
BAG-ASSY,RH,M.M.T.BLUE
57003-0061-68M
$1,110.70
57003E
BAG-ASSY,RH,M.B.G.BLACK
57003-0061-76B
$1,069.52
92009
SCREW,TAPPING,4X12
92009-1870
$1.59
92009A
SCREW,TAPPING,3X8
92009-1871
$1.59
92033
RING-SNAP
92033-1300
$1.58
92039
RIVET
92039-1236
$2.46
92072
BAND
92072-1368
$49.80
92093
SEAL,SIDE BAG COVER
92093-1486
$12.20
92093A
SEAL,SIDE BAG,LH
92093-1487
$6.20
92093B
SEAL
92093-1488
$3.56
92093C
SEAL,SIDE BAG,RH
92093-1489
$6.20
92143
COLLAR
92143-1450
$9.91
92145
SPRING
92145-1175
$7.88
92145A
SPRING
92145-1200
$7.88
92151
BOLT,FLANGED,6X16
92151-1435
$2.41
92151A
BOLT,SOCKET,4X22
92151-1436
$2.46
92151B
BOLT,SOCKET,4X18
92151-1437
$2.46
92152
COLLAR
92152-1121
$3.92
92152A
COLLAR
92152-1122
$3.60
92160
DAMPER
92160-1012
$5.52
92160A
DAMPER
92160-1976
$2.46
92161
DAMPER
92161-0895
$7.71
92161A
DAMPER,SIDE BAG,LH
92161-1171
$37.46
92161B
DAMPER,SIDE BAG,RH
92161-1176
$37.46
92200
WASHER,3MM
92200-1442
$1.59
92200A
WASHER,4MM
92200-1443
$1.59
92200B
WASHER,3MM
92200-1444
$1.59
92210
NUT,CAP,6MM
92210-1167
$2.67
92210A
NUT,CAP,4MM
92210-1168
$1.83
132
BOLT-FLANGED-SMALL,8X25
132BB0825
$4.12
