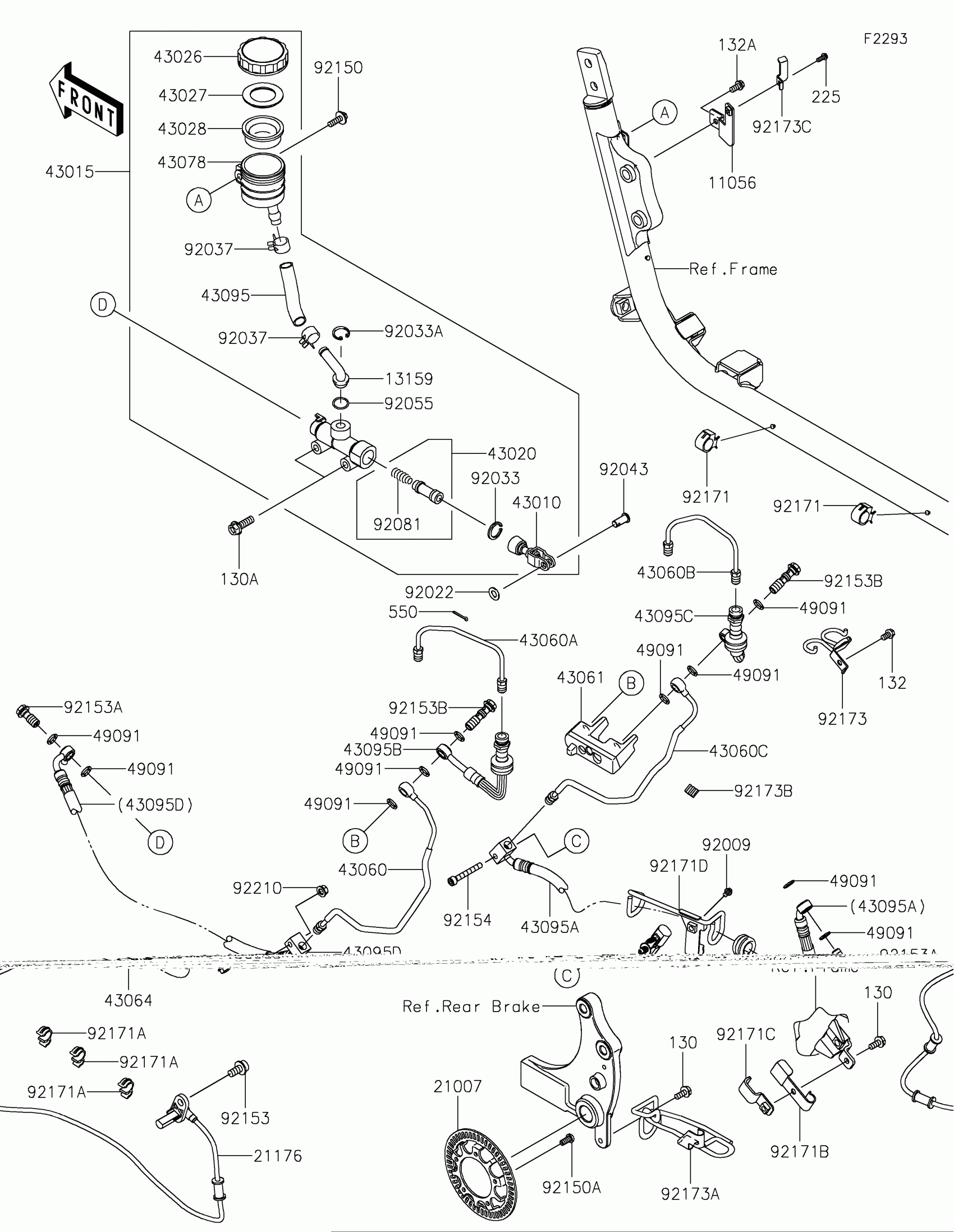

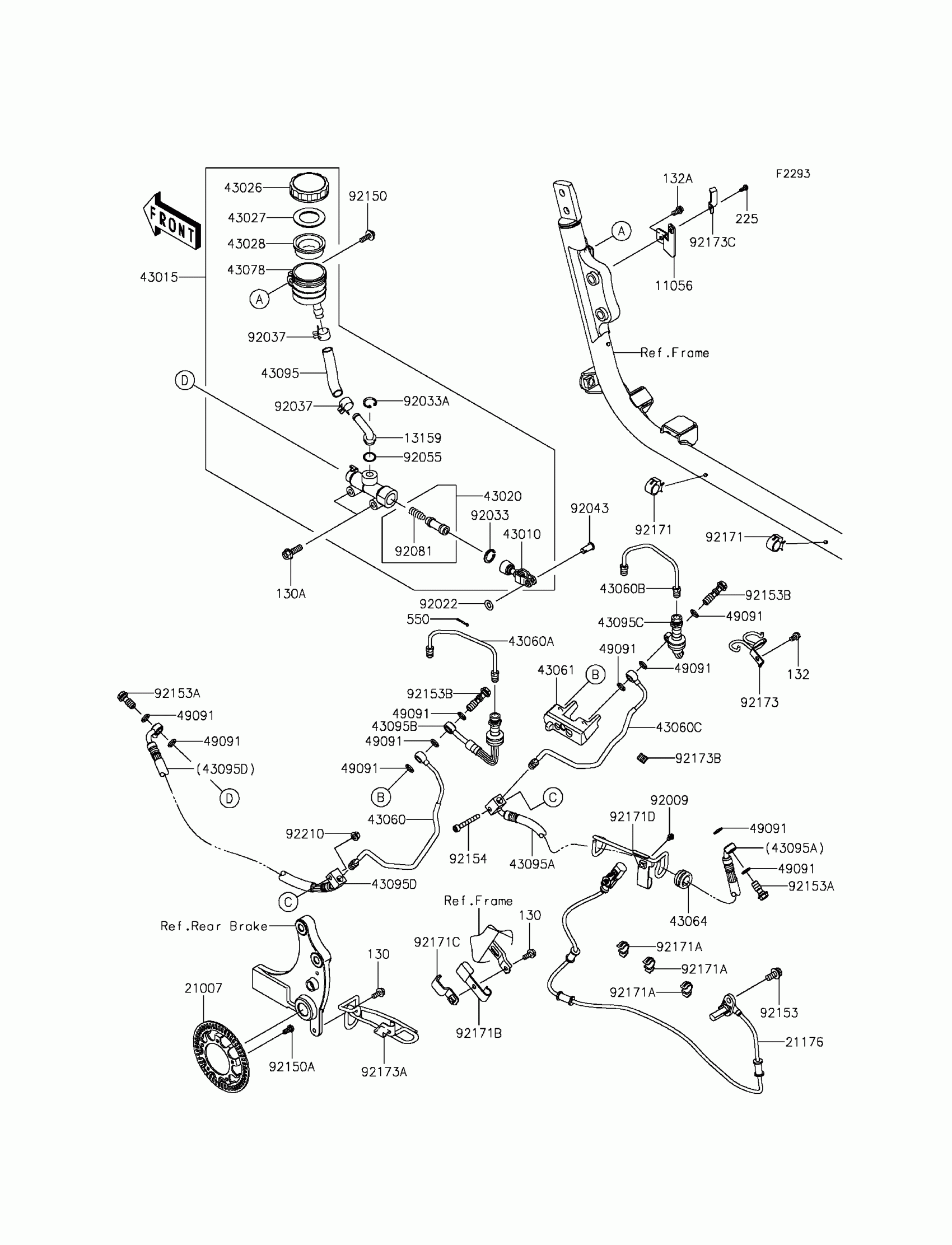

Kawasaki Vulcan 1700 Vaquero ABS Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,RESERVE TANK

11056-1051

$9.17

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

21007

ROTOR,SPEED SENSOR

21007-0115

$43.39

21176

SENSOR,SPEED,RR

21176-0104

$153.19

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0081

$260.14

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43060

PIPE-BRAKE,RR M/CYLINDER-(HU)

43060-0078

$95.31

43060A

PIPE-BRAKE,(RR M/CYLINDER)-HU

43060-0079

$37.55

43060B

PIPE-BRAKE,HU-(RR CALIPER)

43060-0080

$37.55

43060C

PIPE-BRAKE,(HU)-RR CALIPER

43060-0081

$95.31

43061

JOINT-BRAKE

43061-0006

$34.79

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$26.19

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0306

$16.18

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-0391

$137.48

43095B

HOSE-BRAKE,(RR M/CYLINDER)-HU

43095-0520

$70.25

43095C

HOSE-BRAKE,HU-(RR CALIPER)

43095-0521

$48.51

43095D

HOSE-BRAKE,RR M/CYLINDER-(HU)

43095-0524

$90.20

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW,6X10

92009-1661

$4.31

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,6X20

92150-1339

$4.39

92150A

BOLT,SOCKET,6X14

92150-1836

$4.69

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92153B

BOLT,OIL,L=37

92153-1438

$4.92

92154

BOLT,SOCKET,6X45

92154-0134

$2.75

92171

CLAMP,DIA=15

92171-1424

$4.18

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92171B

CLAMP

92171-1826

$12.95

92171C

CLAMP

92171-1827

$11.71

92171D

CLAMP

92171-1828

$45.05

92173

CLAMP,RR BRAKE HOSE

92173-0099

$22.38

92173A

CLAMP,BRAKE HOSE

92173-0138

$46.75

92173B

CLAMP

92173-0181

$4.65

92173C

CLAMP

92173-0743

$6.63

92210

NUT,FLANGED,6MM

92210-0630

$2.00

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X25

130BB0825

$4.45

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12
