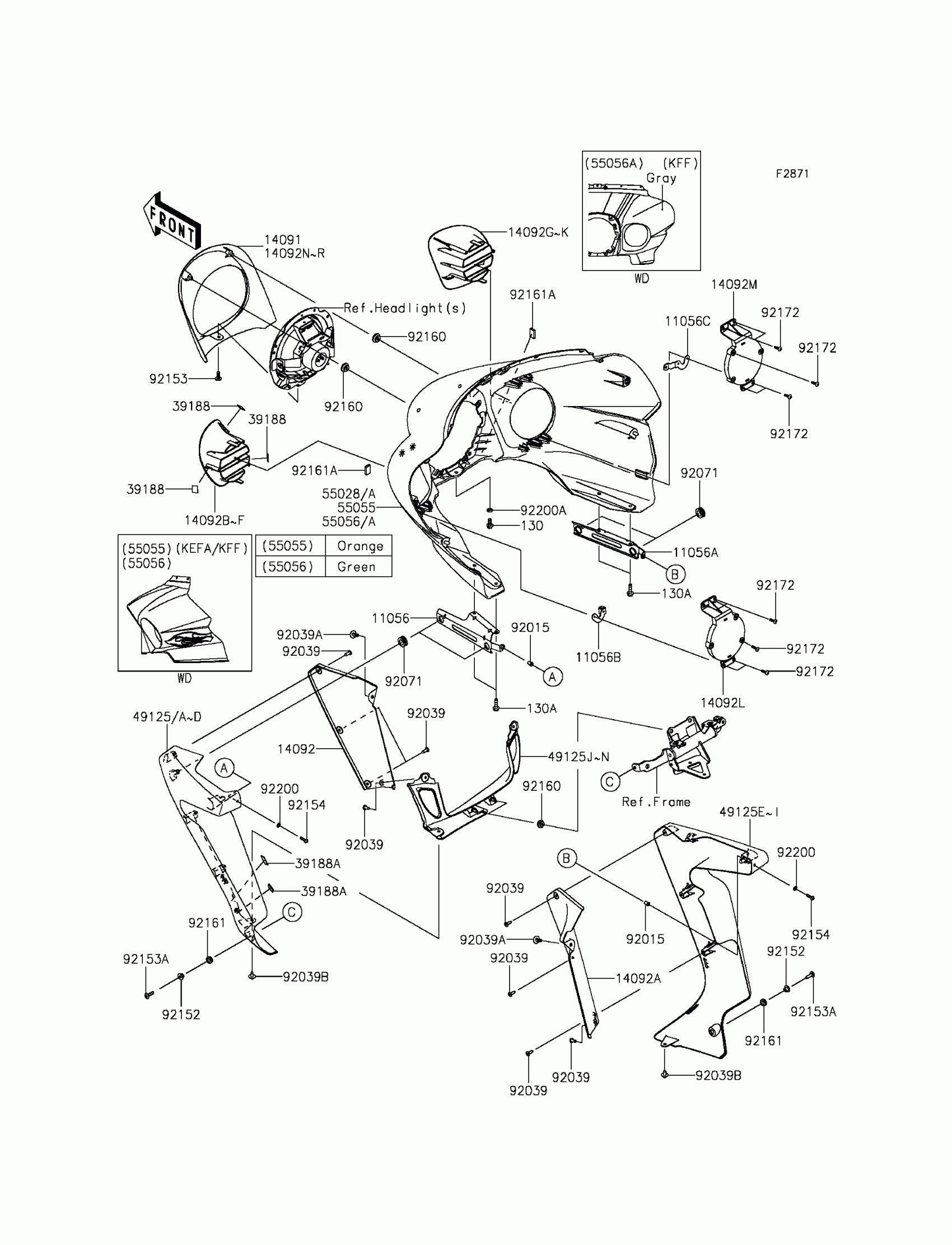

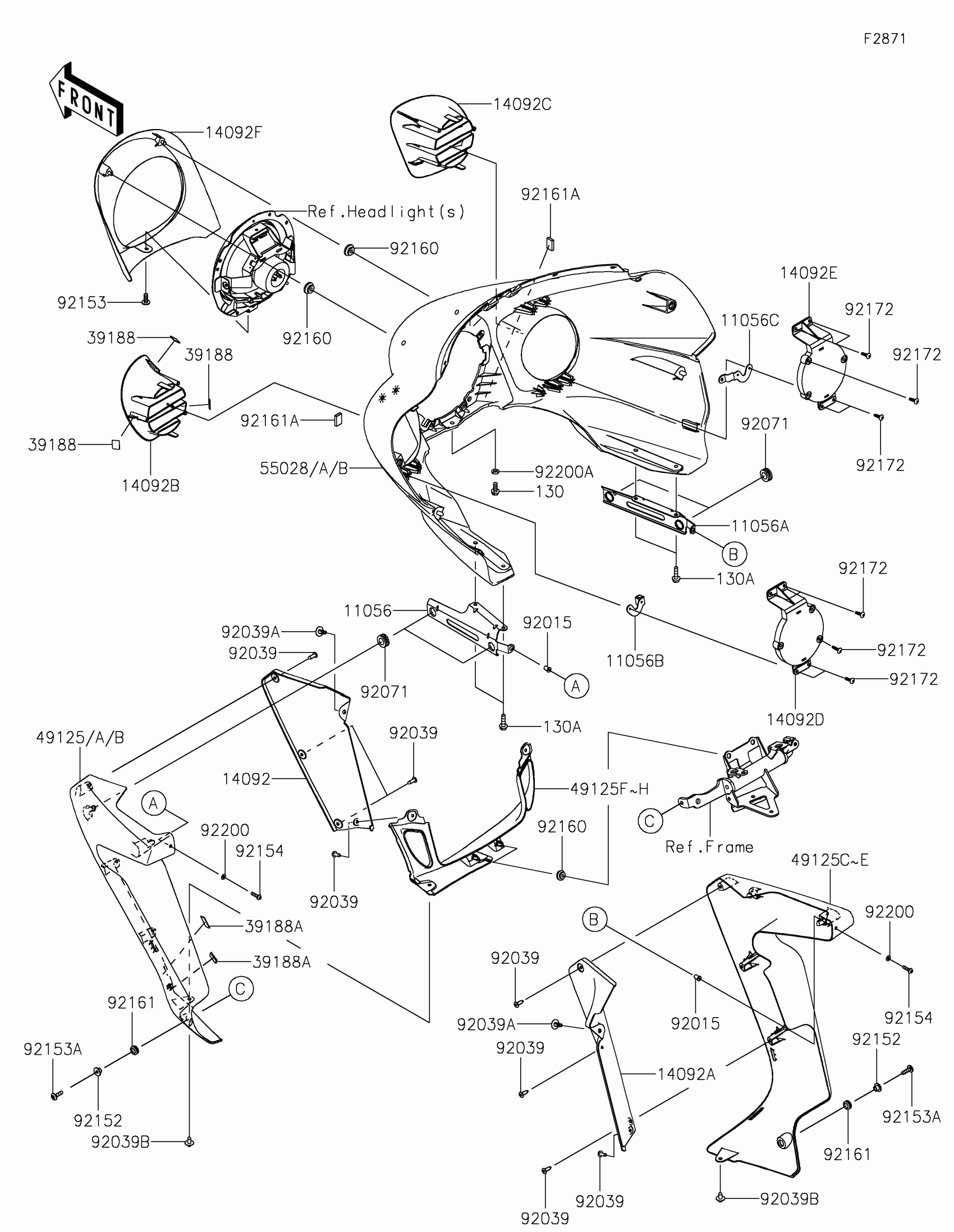

Kawasaki Vulcan 1700 Vaquero ABS Cowling(Outer) Diagram

#

Description
Price

11056

BRACKET,SHROUD,LH

11056-0344

$17.91

11056A

BRACKET,SHROUD,RH

11056-0345

$17.91

11056B

BRACKET,SUB LAMP,LH,LWR

11056-1145

$6.63

11056C

BRACKET,SUB LAMP,RH,LWR

11056-1146

$6.63

14092

COVER,SHROUD,INNNER,LH

14092-0204

$33.24

14092A

COVER,SHROUD,INNNER,RH

14092-0205

$33.24

14092B

COVER,SUB LAMP,LH,EBONY

14092-0209-H8

$118.13

14092C

COVER,SUB LAMP,RH,EBONY

14092-0210-H8

$118.13

14092D

COVER,SUB LAMP,INNNER,LH

14092-0211

$29.82

14092E

COVER,SUB LAMP,INNNER,RH

14092-0212

$29.82

14092F

COVER,HEAD LAMP,EBONY

14092-0770-H8

$218.76

39188

TAPE

39188-0552

$3.70

39188A

TAPE

39188-0553

$3.70

49125

SHROUD,OUTER,LH,M.M.T.BLUE

49125-0063-68M

$164.79

49125B

SHROUD,OUTER,LH,M.B.G.BLACK

49125-0063-76B

$161.68

49125C

SHROUD,OUTER,RH,M.M.T.BLUE

49125-0064-68M

$164.79

49125E

SHROUD,OUTER,RH,M.B.G.BLACK

49125-0064-76B

$161.68

49125F

SHROUD,LWR,CNT,M.M.T.BLUE

49125-0065-68M

$186.99

49125H

SHROUD,LWR,CNT,M.B.G.BLACK

49125-0065-76B

$183.44

55028

COWLING,UPP,OUTER,M.M.T.BLUE

55028-0401-68M

$798.60

55028B

COWLING,UPP,OUTER,M.B.G.BLACK

55028-0401-76B

$768.68

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92039A

RIVET

92039-0086

$5.54

92039B

RIVET

92039-1289

$2.80

92071

GROMMET

92071-1131

$7.77

92152

COLLAR

92152-0295

$5.65

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92153A

BOLT,SOCKET,6X22

92153-1356

$2.15

92154

BOLT,SOCKET,5X20

92154-0210

$2.12

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0266

$1.78

92161A

DAMPER

92161-0717

$0.88

92172

SCREW,TAPPING,5X20

92172-0382

$2.55

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,6.5X12X2

92200-0511

$2.75

130

BOLT-FLANGED,6X16

130AA0616

$0.56

130A

BOLT-FLANGED,6X25

130BB0625

$2.80
