- Vulcan 1700 Vaquero ABS
Cowling(Inner)

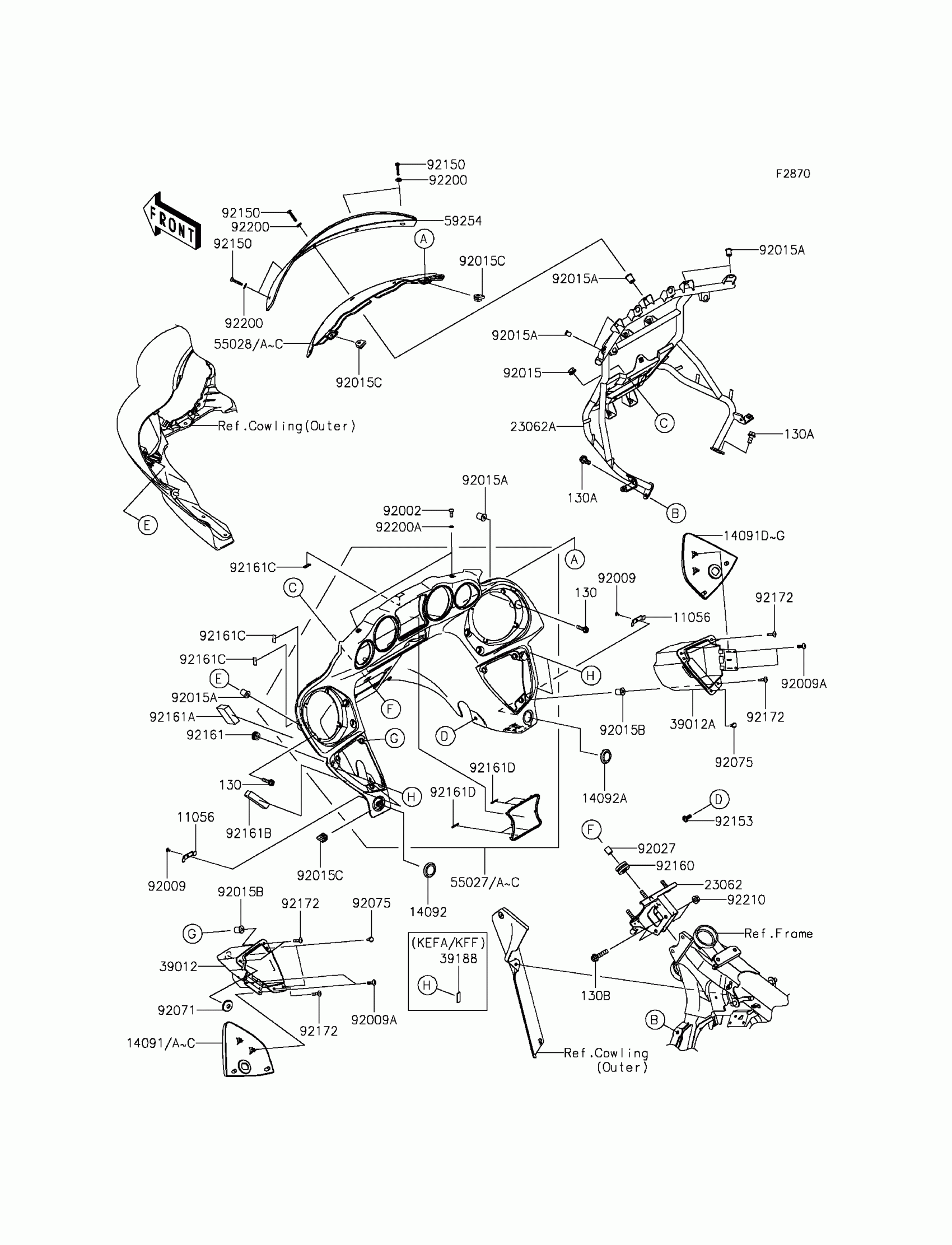

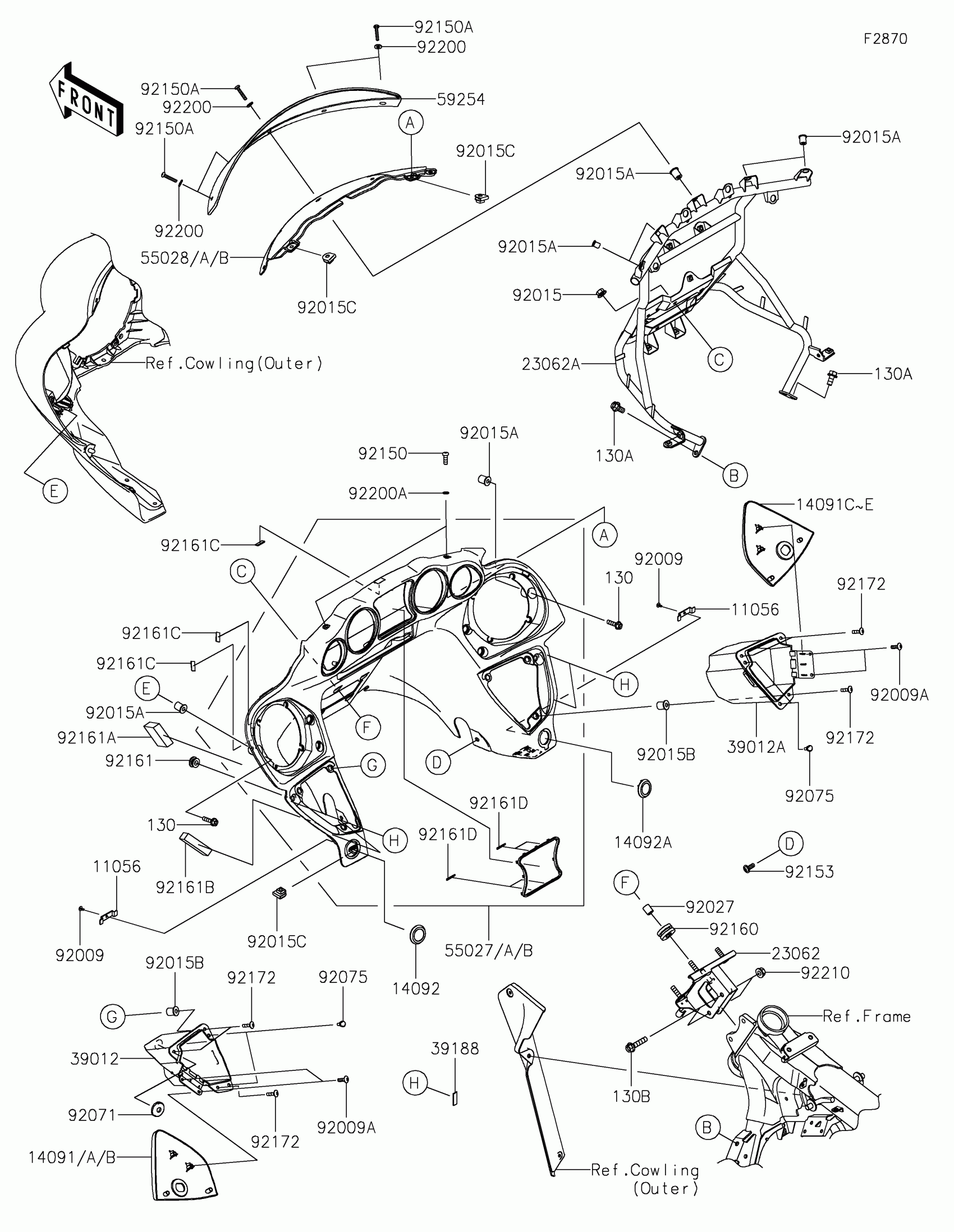

Kawasaki Vulcan 1700 Vaquero ABS Cowling(Inner) Diagram
#
11056
BRACKET
11056-0373
$3.74
14091
COVER,STORAGE CASE,LH,M.M.T.BL
14091-0946-68M
$73.57
14091B
COVER,STORAGE CASE,LH,M.B.G.BL
14091-0946-76B
$71.54
14091C
COVER,STORAGE CASE,RH,M.M.T.BL
14091-0947-68M
$73.57
14091E
COVER,STORAGE CASE,RH,M.B.G.BL
14091-0947-76B
$71.54
14092
COVER,SUB LAMP SW.
14092-0213
$6.57
14092A
COVER,DC SOCKET
14092-0214
$6.57
23062
BRACKET-COMP,HEAD PIPE
23062-0106
$96.20
23062A
BRACKET-COMP,COWLING
23062-0720
$378.50
39012
CASE-STORAGE,LH
39012-0027
$57.20
39012A
CASE-STORAGE,RH
39012-0028
$57.20
39188
TAPE,10X30
39188-0555
$3.70
55027
COWLING-ASSY,UPP,INNER,M.M.T.B
55027-0043-68M
$804.73
55027B
COWLING-ASSY,UPP,INNER,M.B.G.B
55027-0043-76B
$774.63
55028
COWLING,CNT,M.M.T.BLUE
55028-0227-68M
$105.58
55028B
COWLING,CNT,M.B.G.BLACK
55028-0227-76B
$102.63
59254
DEFLECTOR
59254-0001
$84.27
92009
SCREW,TAPPING,4X8
92009-1155
$2.97
92009A
SCREW,TAPPING,5X10
92009-1332
$3.92
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92015A
NUT
92015-1700
$8.58
92015B
NUT,WELL,5MM
92015-1757
$7.29
92015C
NUT,CLIP,6MM
92015-1904
$6.57
92027
COLLAR,8.8X12X14
92027-012
$6.22
92071
GROMMET,TAIL LAMP WIRE
92071-079
$3.72
92075
DAMPER,6X10X15
92075-1808
$1.39
92150
BOLT,SOCKET,6X18
92150-1553
$6.22
92150A
BOLT,SOCKET,6X30
92150-1554
$5.52
92153
BOLT,SOCKET,6X15
92153-1451
$1.78
92160
DAMPER
92160-1007
$5.52
92161
DAMPER
92161-0317
$3.39
92161A
DAMPER
92161-0784
$2.75
92161B
DAMPER
92161-0785
$2.75
92161C
DAMPER
92161-0965
$1.63
92161D
DAMPER,3X25X0.3
92161-0996
$0.85
92172
SCREW,5X18
92172-0428
$0.88
92200
WASHER,6.5X14X1
92200-1388
$2.46
92200A
WASHER,6.2X10X1
92200-1465
$1.59
92210
NUT,FLANGED,8MM
92210-0004
$5.38
130
BOLT-FLANGED,6X22
130BB0622
$3.67
130A
BOLT-FLANGED,8X16
130BB0816
$1.71
130B
BOLT-FLANGED,8X35
130BB0835
$4.45
