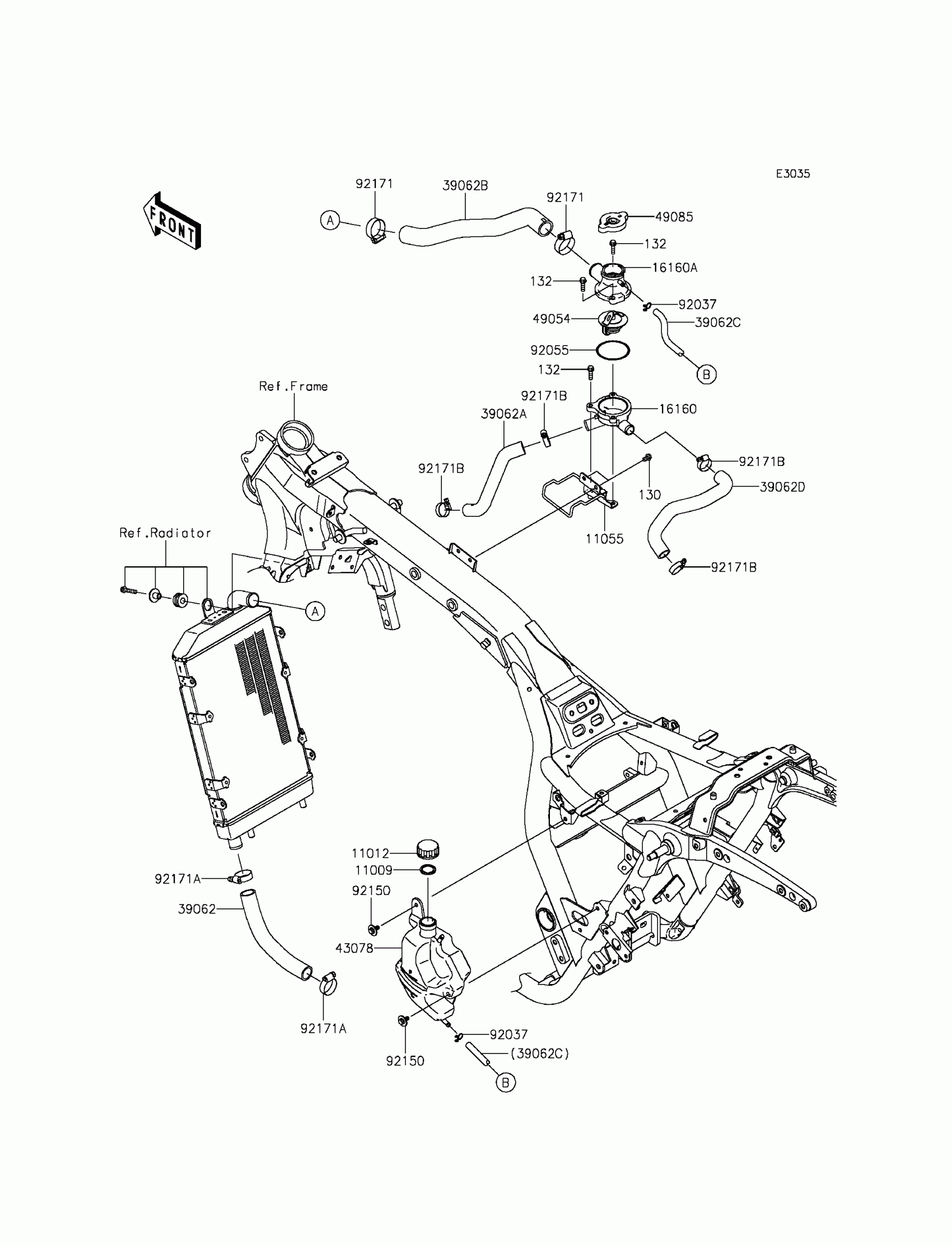

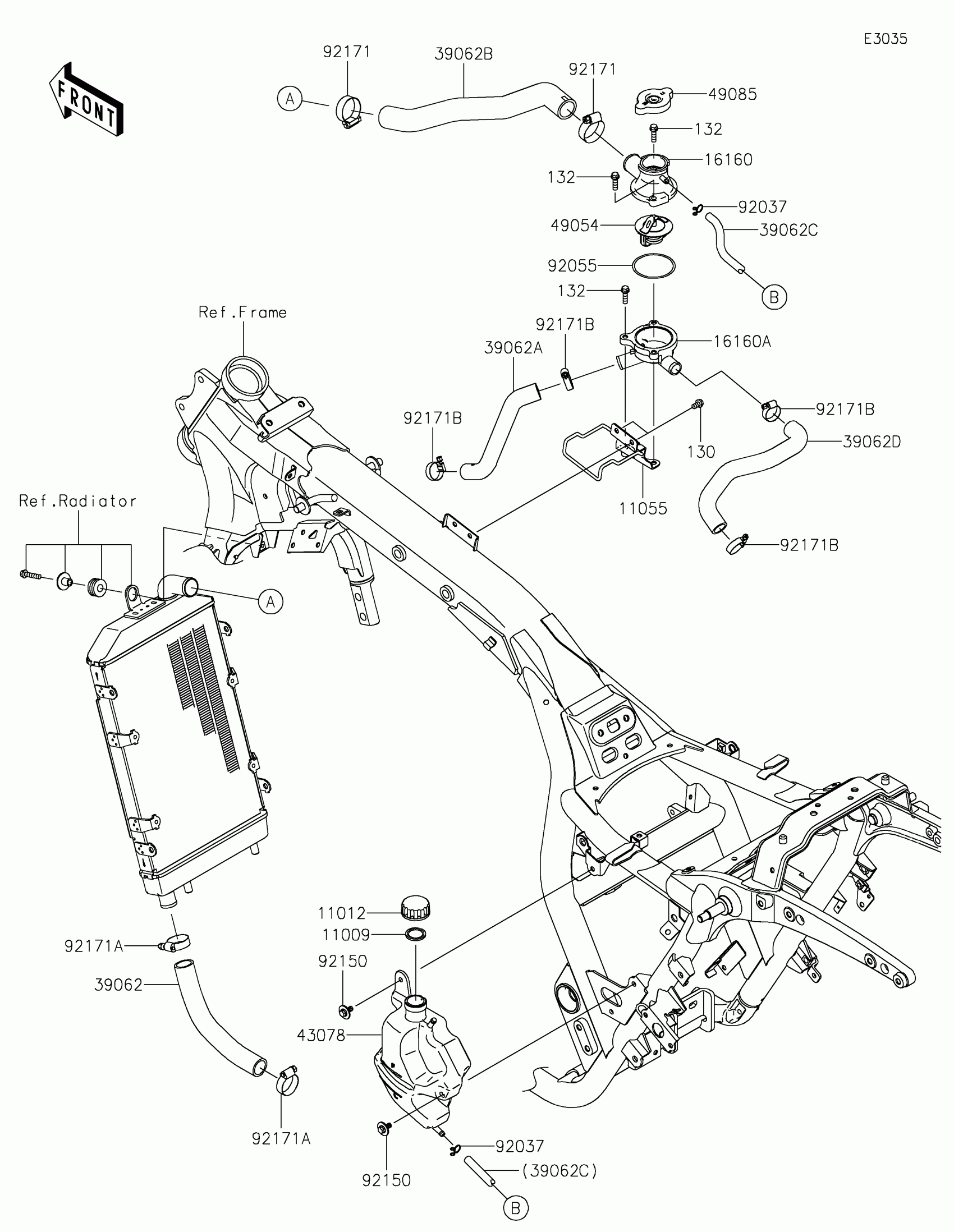

Kawasaki Vulcan 1700 Vaquero ABS Cooling Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11055

BRACKET,THERMOCASE

11055-0571

$30.15

16160

BODY,UPP

16160-0775

$67.73

16160A

BODY,LWR

16160-0780

$60.49

39062

HOSE-COOLING,RAD-W/P IN PIPE

39062-0244

$17.90

39062A

HOSE-COOLING,FR HEAD-THERMO

39062-0245

$14.66

39062B

HOSE-COOLING,THERMO-RAD

39062-0247

$36.45

39062C

HOSE-COOLING

39062-0291

$16.24

39062D

HOSE-COOLING,RR HEAD-THERMO

39062-0315

$21.40

43078

RESERVOIR

43078-0067

$43.39

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$50.52

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,53.5X2.6

92055-0831

$7.85

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0261

$16.83

92171B

CLAMP

92171-0338

$8.36

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49
