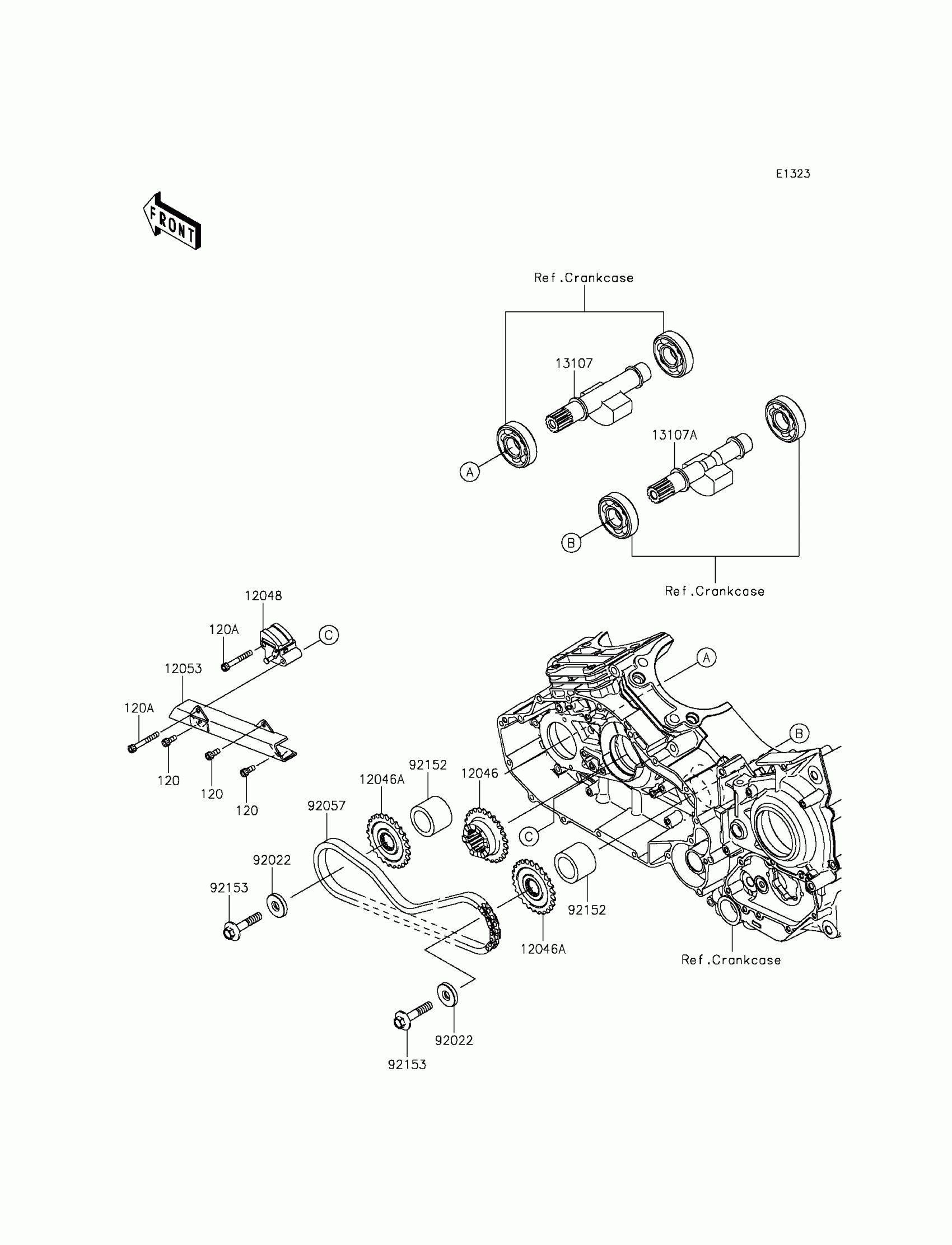

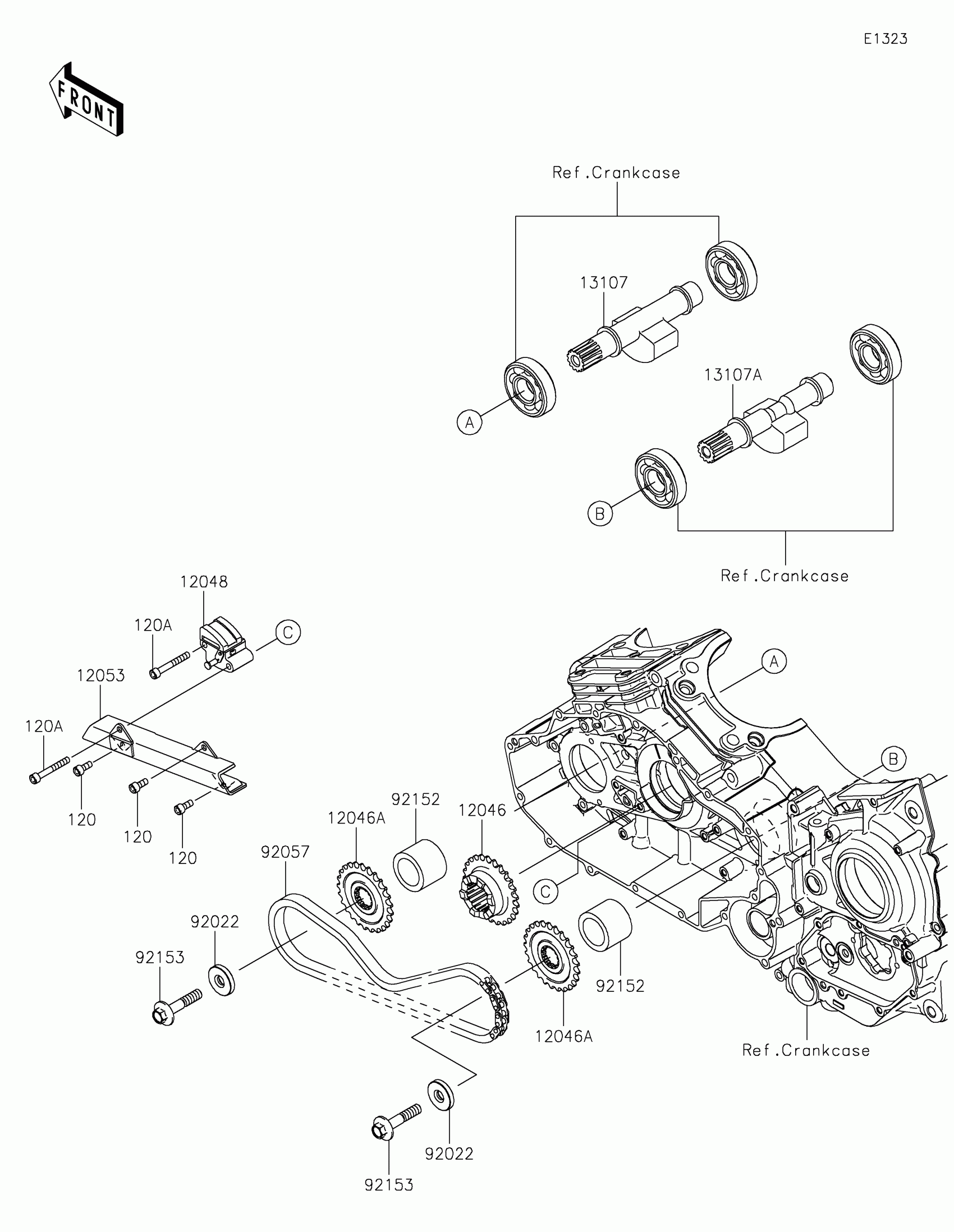

Kawasaki Vulcan 1700 Vaquero ABS Balancer Diagram

Description

Price

12046

SPROCKET,CRANK,25T

12046-0066

$95.81

12046A

SPROCKET,BALANCER,25T

12046-0087

$65.08

12048

TENSIONER-ASSY

12048-0005

$178.69

12053

GUIDE-CHAIN,LONG

12053-0003

$76.26

13107

SHAFT,BALANCER,FR

13107-0185

$328.28

13107A

SHAFT,BALANCER,RR

13107-0211

$328.28

92022

WASHER,10X33X6

92022-1906

$14.23

92057

CHAIN,DID 06FS-SDH

92057-0563

$87.02

92152

COLLAR

92152-0840

$22.38

92153

BOLT,10X50

92153-0317

$7.95

120

BOLT-SOCKET,6X14

120CA0614

$4.10

120A

BOLT-SOCKET,6X45

120CA0645

$2.06
