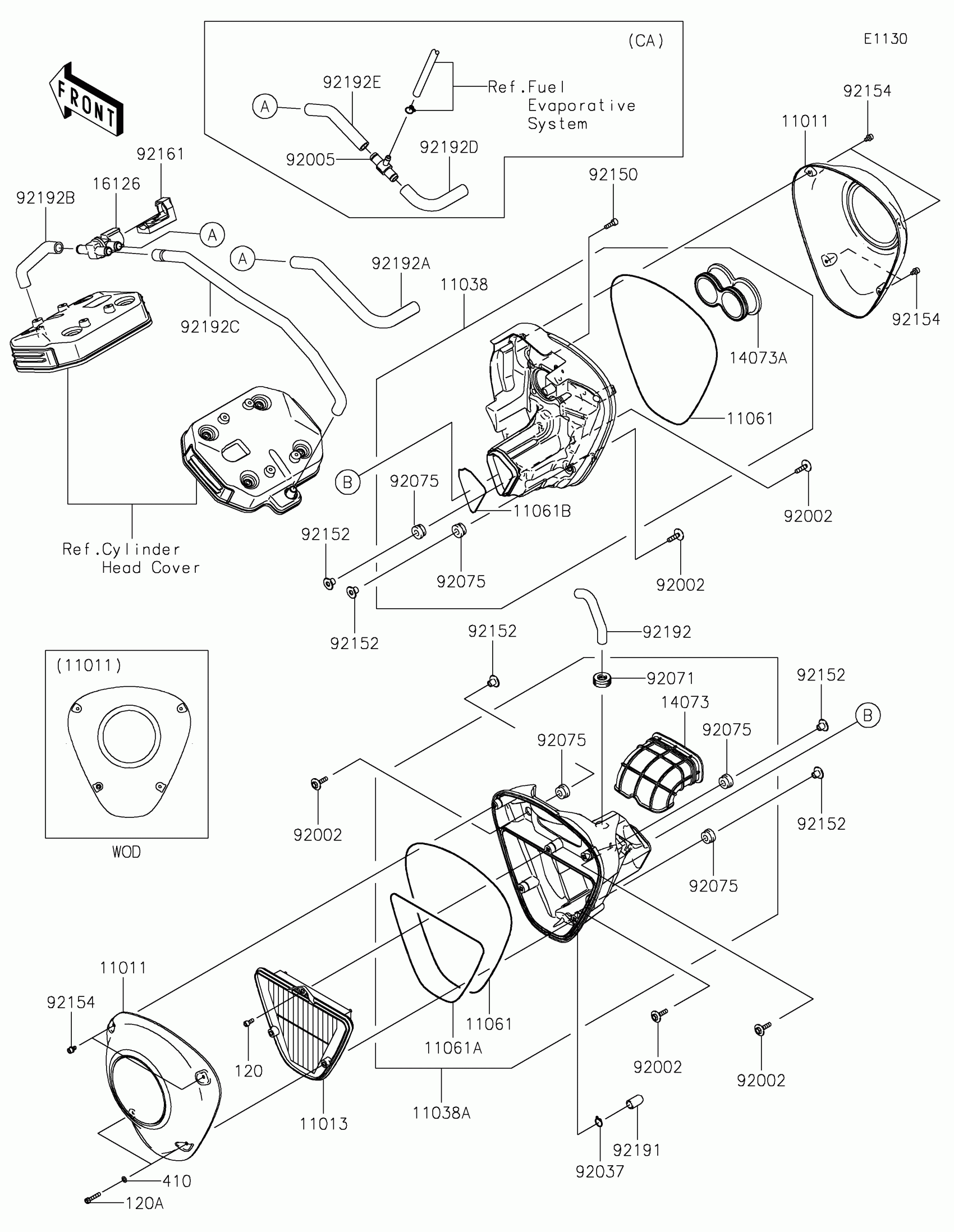

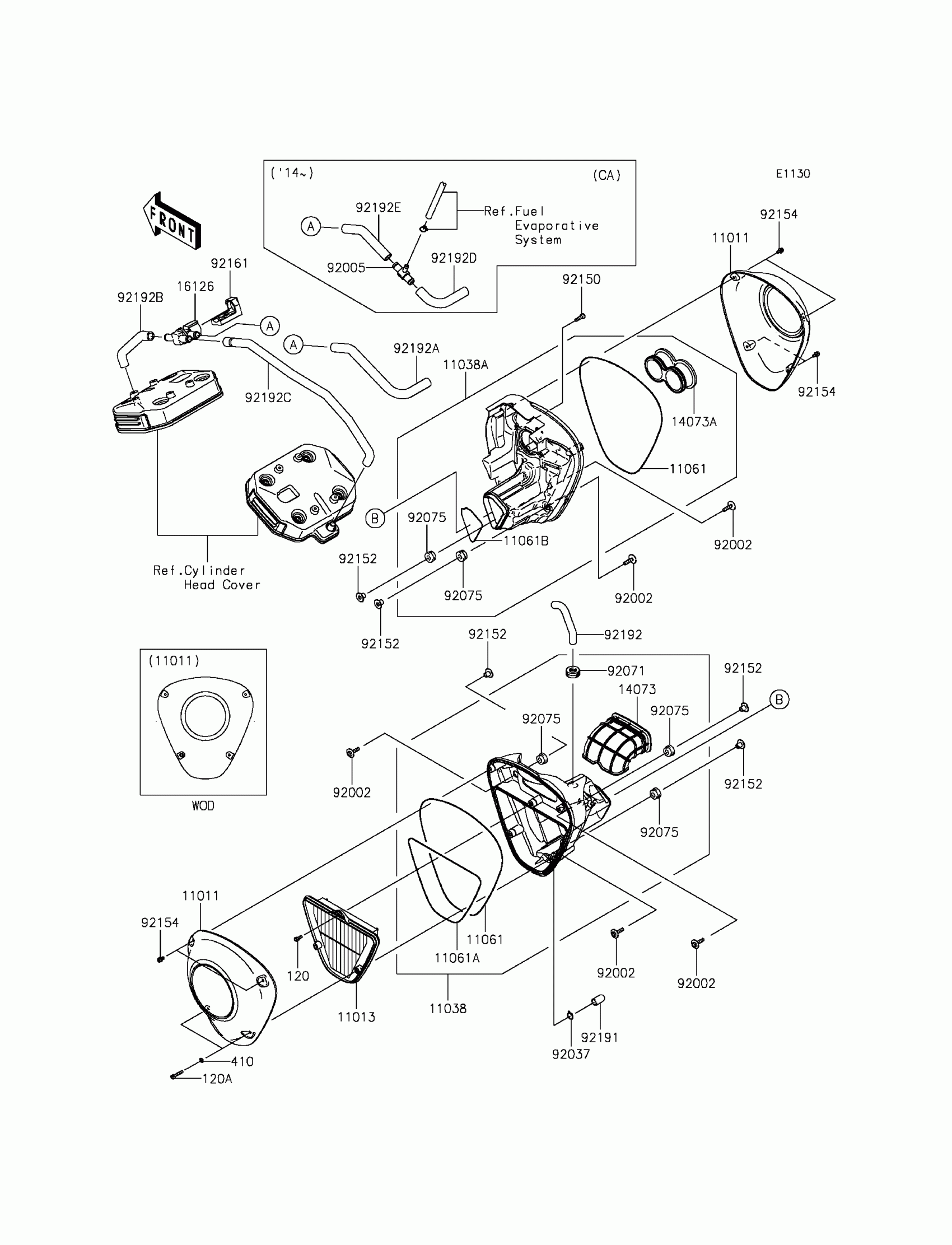

Kawasaki Vulcan 1700 Vaquero ABS Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER,F.S.BLACK

11011-0172

$96.87

11013

ELEMENT-AIR FILTER

11013-0031

$43.13

11038

CASE-ASSY-AIR FILTER,RH

11038-0708

$109.50

11038A

CASE-ASSY-AIR FILTER,LH

11038-0710

$109.50

11061

GASKET,3X812

11061-0346

$9.96

11061A

GASKET,3X630

11061-0347

$8.37

11061B

GASKET,3X222

11061-0367

$5.48

14073

DUCT,INTAKE

14073-0202

$26.15

14073A

DUCT,THROBO. FUNNEL

14073-0203

$29.88

16126

VALVE,AIR SWITCHING

16126-0746

$185.64

92002

BOLT,6X25

92002-1135

$4.31

92037

CLAMP,14.5MM

92037-1900

$4.87

92071

GROMMET,AIR SUCTION VALVE

92071-1249

$4.11

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X18

92150-1645

$3.60

92152

COLLAR,6.3X10X12

92152-0694

$5.54

92154

BOLT,SOCKET,5X10

92154-0131

$2.12

92161

DAMPER

92161-0309

$14.56

92191

TUBE

92191-1704

$7.56

92192

TUBE,BREATHER

92192-0650

$5.48

92192B

TUBE,FR HEAD-ASWV

92192-0652

$8.66

92192C

TUBE,RR HEAD-ASWV

92192-0653

$21.22

120

BOLT-SOCKET,5X12

120CA0512

$1.57

120A

BOLT-SOCKET,5X25

120R0525

$2.55

410

W-PLAIN-S,5MM

410S0500

$1.59
