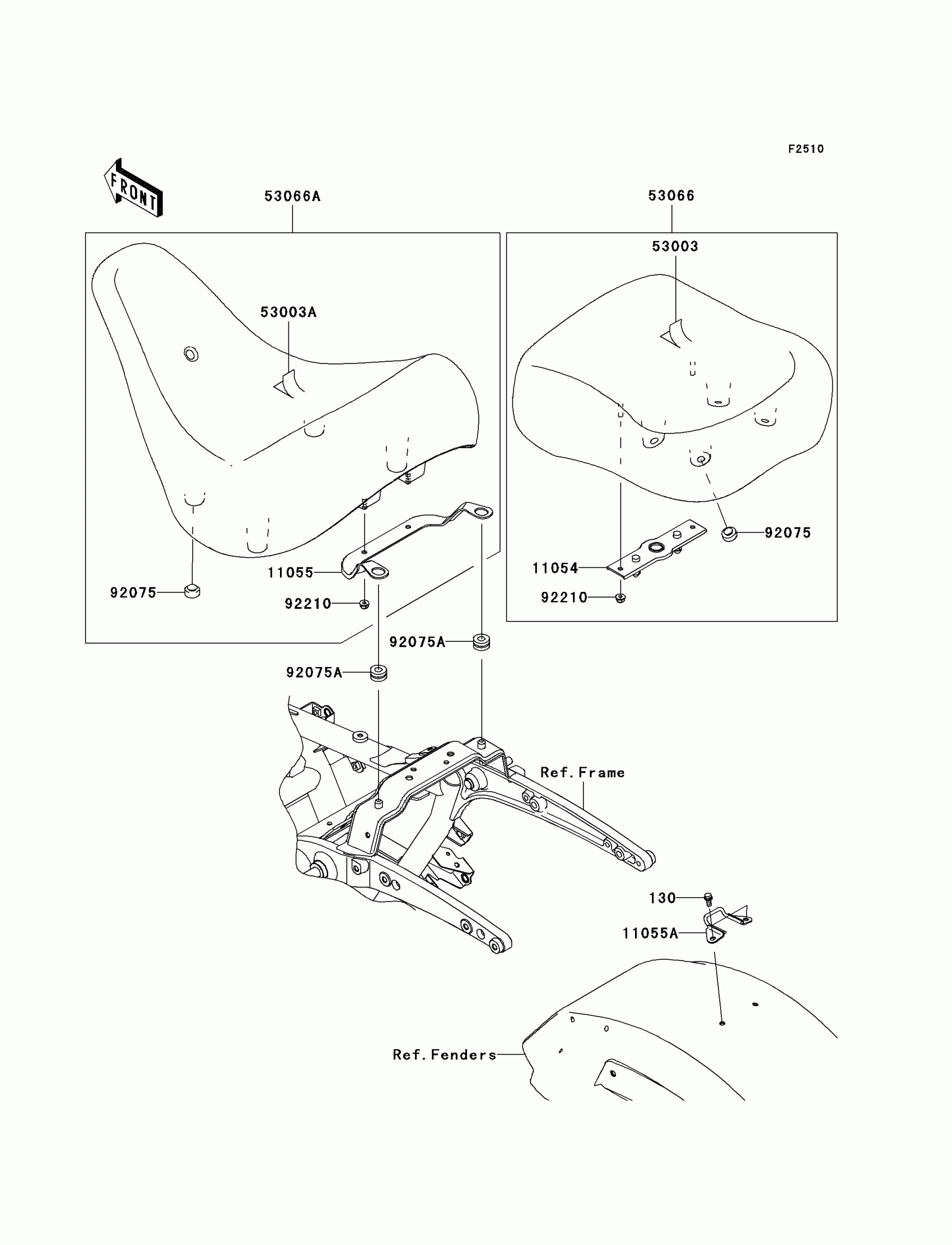

Kawasaki VULCAN® 1700 NOMAD™ Seat Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

11054

BRACKET,SEAT

11054-0417

$40.28

11055

BRACKET

11055-0612

$24.87

11055A

BRACKET,REAR SEAT

11055-1211

$16.39

53003

LEATHER,REAR SEAT,BLACK

53003-0155-MA

Unavailable

53003A

LEATHER,FRONT SEAT,BLACK

53003-0156-MA

Unavailable

53066

SEAT-ASSY,RR,BLACK

53066-0204-MA

$464.42

53066A

SEAT-ASSY,FR,BLACK

53066-0232-MA

$717.46

92075

DAMPER,10X20X8

92075-1927

$4.39

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92210

NUT

92210-0401

$3.86
