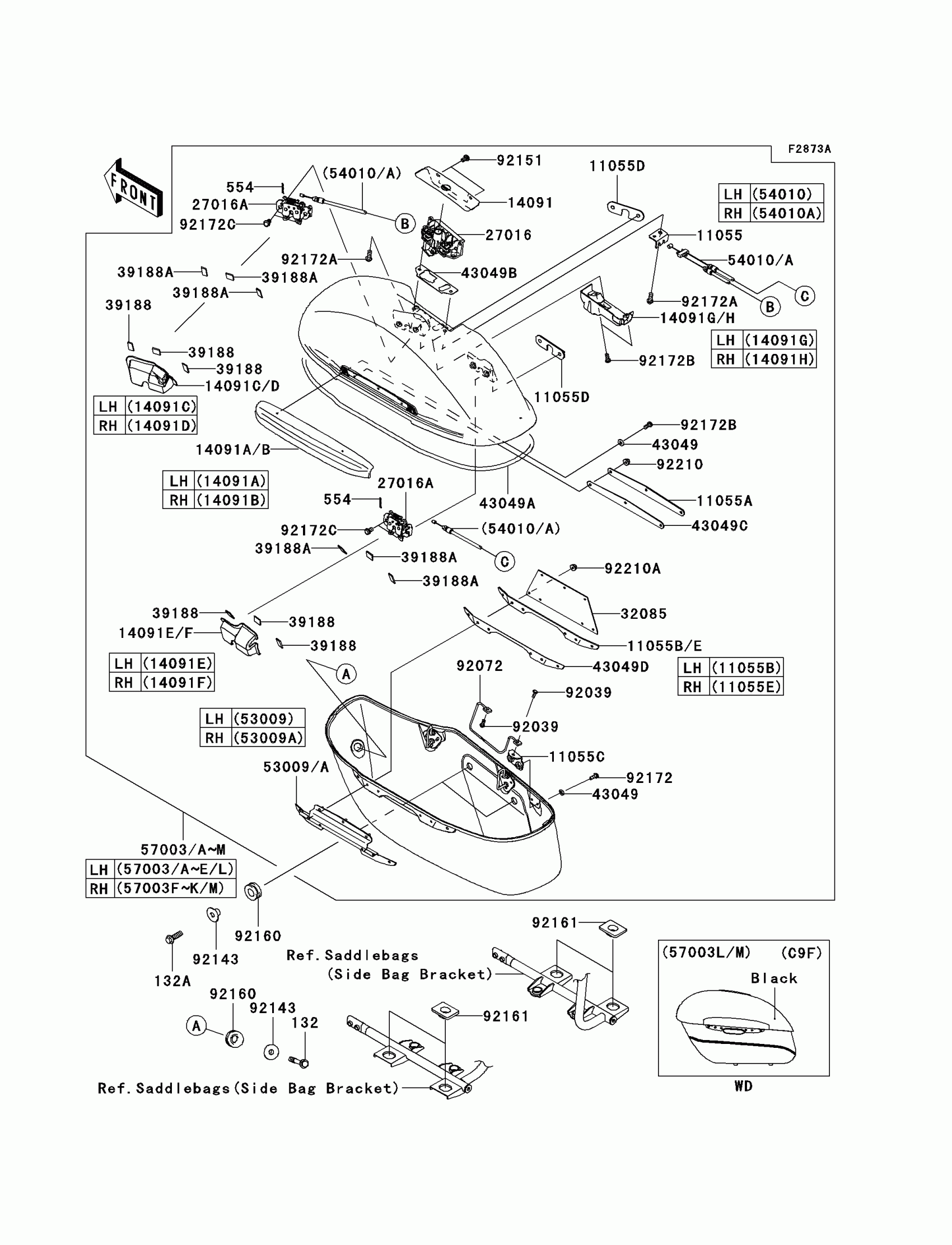

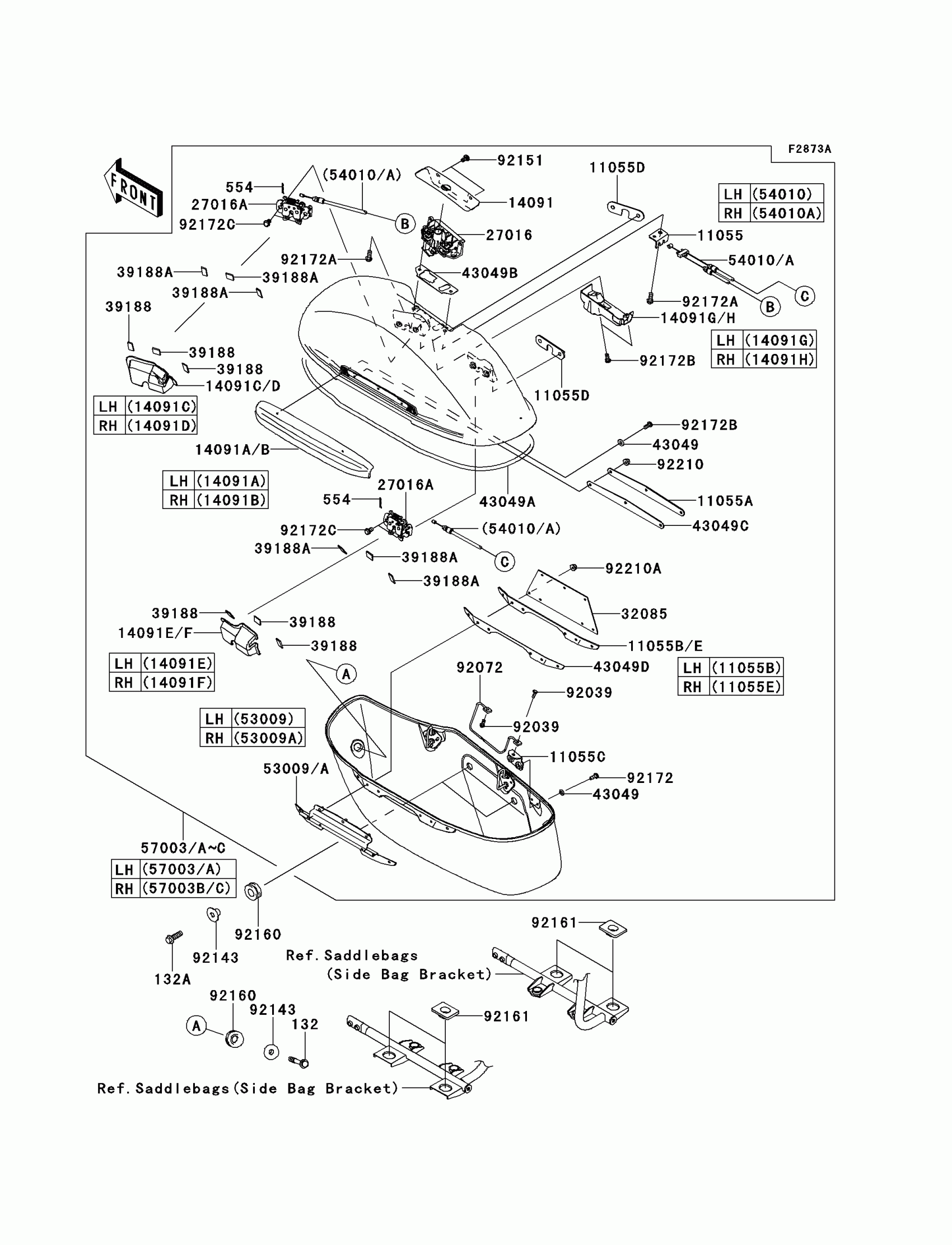

Kawasaki VULCAN® 1700 NOMAD™ Saddlebags(Side Bag) Diagram

#

Description
Price

11055

BRACKET

11055-1910

$4.34

11055A

BRACKET

11055-1911

$7.15

11055B

BRACKET,LH

11055-1912

$46.78

11055C

BRACKET,BELT

11055-1913

$15.36

11055D

BRACKET

11055-1916

$30.47

11055E

BRACKET,RH

11055-1917

$45.92

14091

COVER,PANNIER LOCK

14091-1667

$60.57

14091A

COVER,PANNIER HINGE,LH

14091-1668

$101.81

14091B

COVER,PANNIER HINGE,RH

14091-1669

$101.81

14091C

COVER,PANNIER LOCK,FR,LH

14091-1749

$29.08

14091D

COVER,PANNIER LOCK,FR,RH

14091-1750

$29.08

14091E

COVER,PANNIER LOCK,RR,LH

14091-1751

$29.08

14091F

COVER,PANNIER LOCK,RR,RH

14091-1752

$29.08

14091G

COVER,PANNIER LOCK,CNT,LH

14091-1753

$29.08

14091H

COVER,PANNIER LOCK,CNT,RH

14091-1754

$29.08

27016

LOCK-ASSY,PANNIER CASE

27016-0026

$195.49

27016A

LOCK-ASSY,PANNIER CASE,STRIKER

27016-0029

$32.97

32085

STOPPER

32085-0187

$98.06

39188

TAPE,10X15

39188-0014

$2.78

39188A

TAPE,15X10

39188-0015

$2.78

43049

PACKING

43049-0019

$2.24

43049A

PACKING

43049-0022

$16.31

43049B

PACKING

43049-0023

$5.97

43049C

PACKING

43049-0024

$5.41

43049D

PACKING

43049-0026

$10.85

53009

HINGE,LH

53009-0029

$135.97

53009A

HINGE,RH

53009-0030

$135.97

54010

CABLE,PANNIER CASE,LH

54010-0113

$53.69

54010A

CABLE,PANNIER CASE,RH

54010-0114

$53.69

57003D

BAG,LH,BODY SILVER+COVER RED

57003-0041-40A

$1,711.99

132

BOLT-FLANGED-SMALL,8X60

132BA0860

$4.46

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$3.14

554

PIN-SNAP

554DA0500

$2.08

57003J

BAG,RH,BODY SILVER+COVER RED

57003-0042-40A

$1,711.99

92039

RIVET

92039-0063

$2.09

92072

BAND,L=320MM

92072-0140

$14.78

92143

COLLAR

92143-1450

$7.54

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92160

DAMPER

92160-1012

$4.18

92161

DAMPER

92161-0607

$7.93

92172

SCREW

92172-0450

$1.71

92172A

SCREW,6X16

92172-0452

$2.59

92172B

SCREW,TAPPING,5X12

92172-0453

$1.47

92172C

SCREW,6X16

92172-0454

$2.59

92210

NUT,CAP,4MM

92210-0434

$2.15

92210A

NUT

92210-0577

$3.12

57003E

BAG,LH,BODY BLACK+COVER BLNE

57003-0041-40B

$1,711.99

57003K

BAG,RH,BODY BLACK+COVER BLNE

57003-0042-40B

$1,711.99
