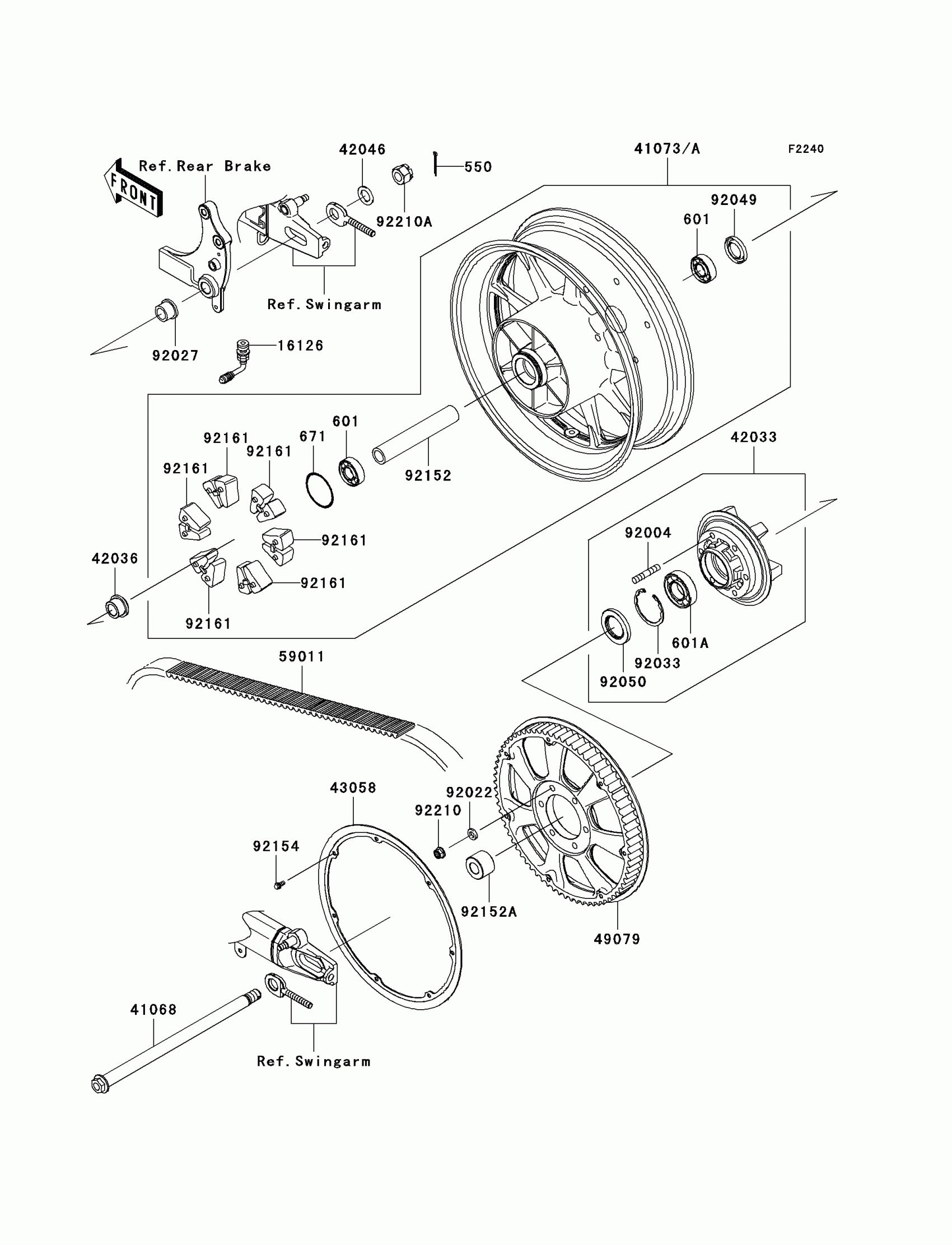

Kawasaki VULCAN® 1700 NOMAD™ Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,6204UUC3

601B6204UU

$29.98

601A

BEARING-BALL,#6206UUC3

601B6206UU

$40.38

671

O RING,60MM

671B2560

$6.91

16126

VALVE

16126-1365

$25.53

41068

AXLE,RR

41068-0057

$83.51

41073

WHEEL-ASSY,RR,BLACK

41073-0136-18

$1,065.37

42033

COUPLING-ASSY,RR HUB

42033-0031

$241.76

42036

SLEEVE,RR HUB COUPLING

42036-0060

$38.17

42046

WASHER,21X33X2.6

42046-003

$4.31

43058

RING,PULLEY

43058-0033

$67.95

49079

PULLEY-BELT

49079-0018

$707.66

59011

BELT,DRIVE,139T

59011-0020

Unavailable

92004

STUD,10X35

92004-0016

$7.31

92022

WASHER,10.5X19X3.2

92022-1820

$4.31

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$25.27

92033

RING-SNAP,62MM

92033-1044

$11.29

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92050

SEAL-OIL,AJN40627

92050-027

$20.96

92152

COLLAR,RR HUB,L=172

92152-0640

$59.96

92152A

COLLAR,RR AXLE,LH,L=28

92152-0641

$30.15

92154

BOLT,FLANGED,6X12

92154-0346

$2.03

92161

DAMPER,SHOCK,RR HUB

92161-0576

$29.31

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,CASTLE,18MM

92210-1134

$7.62
