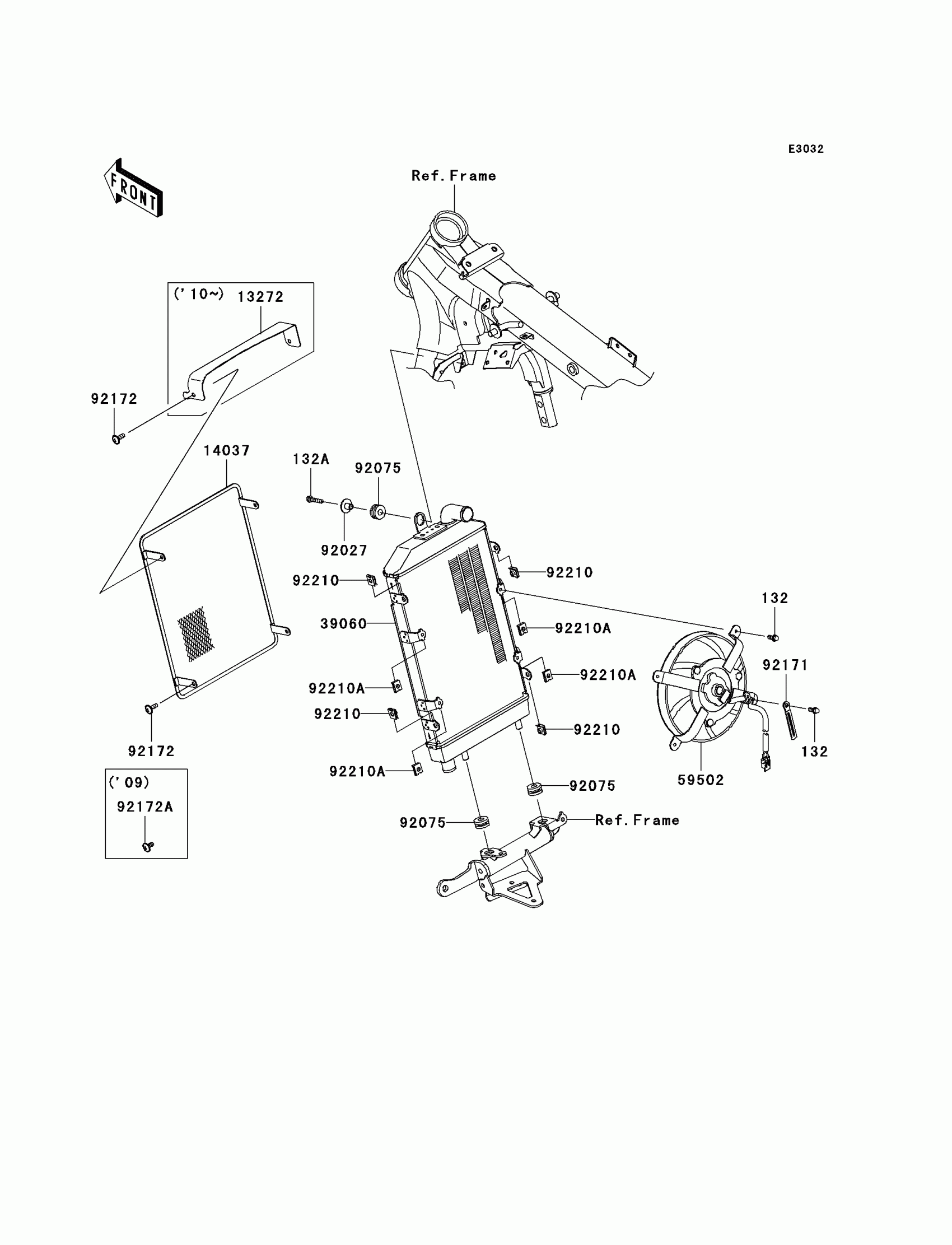

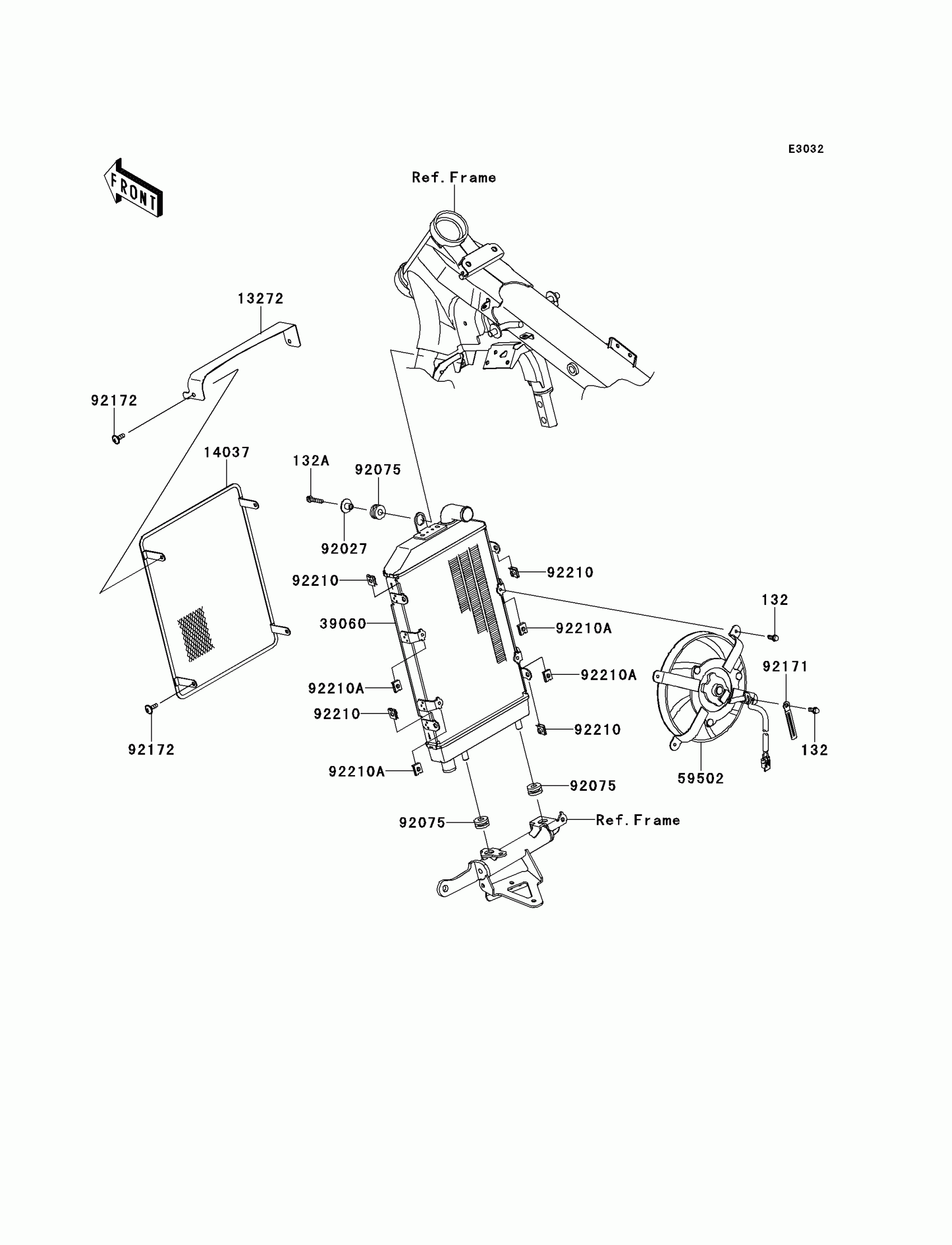

Kawasaki VULCAN® 1700 NOMAD™ Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.49

132A

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99

13272

PLATE

13272-0882

$35.14

14037

SCREEN,INNER

14037-0014

$72.10

39060

RADIATOR

39060-0059

$645.64

59502

FAN-ASSY

59502-0040

$783.05

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92075

DAMPER,10X24X12

92075-1690

$5.00

92171

CLAMP

92171-0791

$6.38

92172

SCREW,6X14

92172-0004

$2.80

92210

NUT

92210-1125

$4.76

92210A

NUT

92210-1323

$4.18
