Fuel Tank

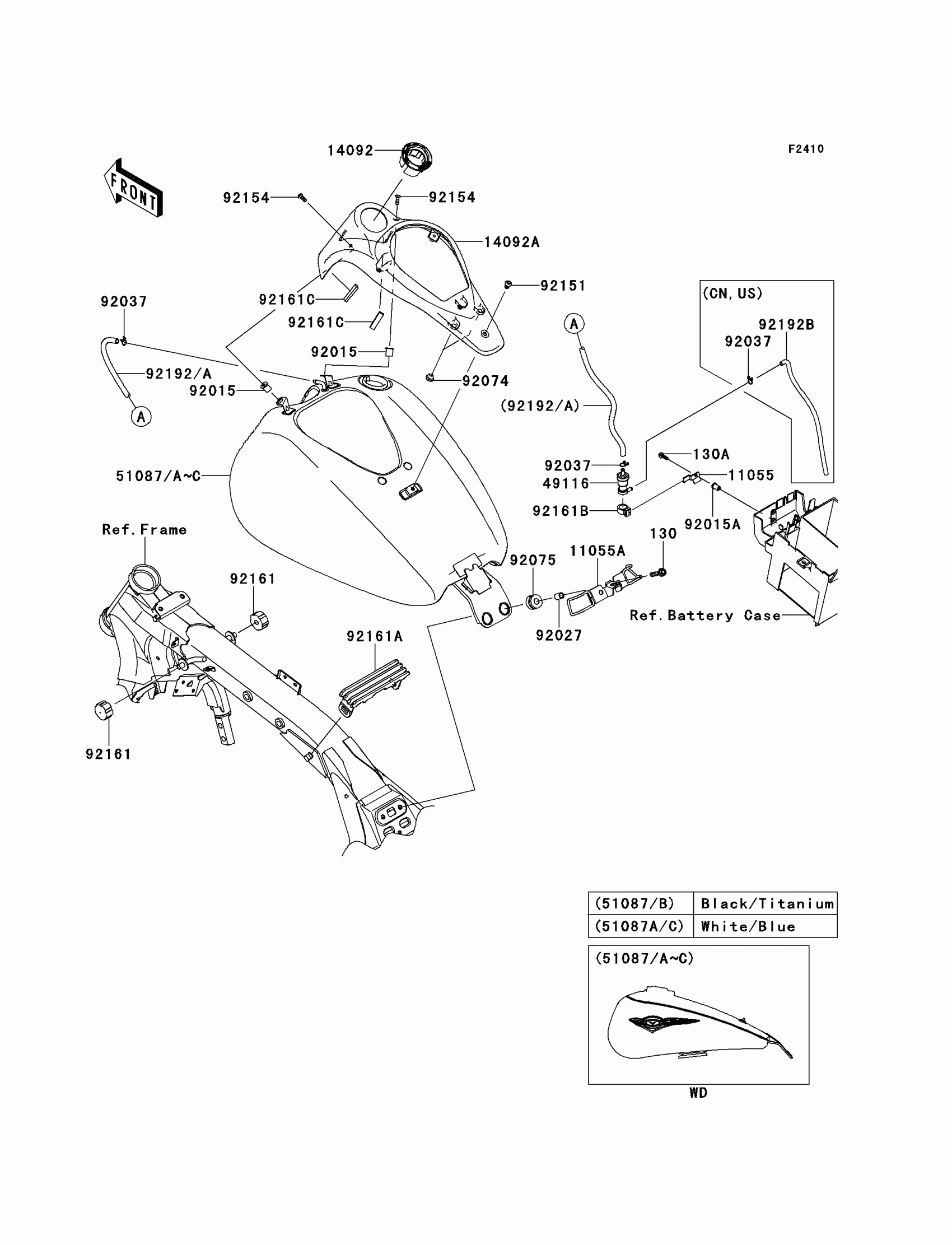

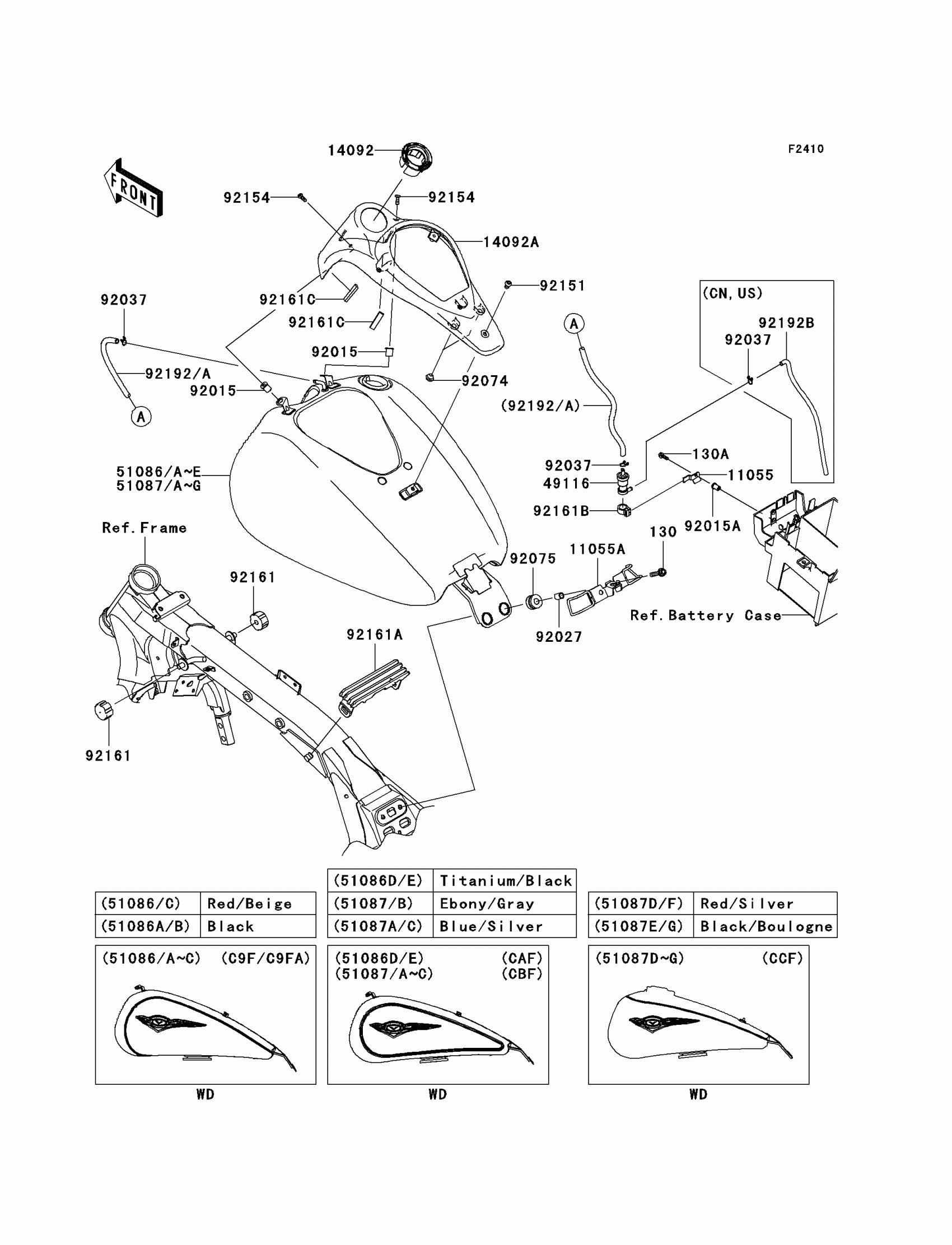

Kawasaki VULCAN® 1700 NOMAD™ Fuel Tank Diagram
#
Description
Price
11055
BRACKET,CHECK VALVE
11055-1512
$7.87
11055A
BRACKET,SEAT
11055-1552
$36.79
14092
COVER,IGNITION SWITCH
14092-0046
$55.32
14092A
COVER,METER
14092-0117
$228.99
49116
VALVE-ASSY,CHECK
49116-0014
$46.35
130
BOLT-FLANGED,8X30
130BA0830
$1.98
130A
BOLT-FLANGED,5X16
130BB0516
$2.06
92015
NUT
92015-1700
$8.58
92015A
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,8.8X12X17
92027-034
$7.24
92074
PLUG,7X2
92074-028
$4.26
92075
DAMPER
92075-1736
$6.57
92151
BOLT,SOCKET,6X10
92151-1449
$2.46
92154
BOLT,SOCKET,6X16
92154-0242
$3.55
92161
DAMPER,FUEL TANK
92161-0293
$7.83
92161A
DAMPER,FUEL TANK
92161-0577
$28.34
92161B
DAMPER,CHECK VALVE
92161-0744
$4.49
92161C
DAMPER,10X40X7
92161-1502
$1.63
51087
TANK-COMP-FUEL,BLACK/TITANIUM
51087-5442-28K
$2,018.46
51087A
TANK-COMP-FUEL,WHITE/BLUE
51087-5443-45B
$1,966.15
51087B
TANK-COMP-FUEL,BLACK/TITANIUM
51087-5444-28K
$2,018.46
51087C
TANK-COMP-FUEL,WHITE/BLUE
51087-5445-45B
$1,966.15
92037
CLAMP,TUBE
92037-147
$7.34
92037
CLAMP,TUBE
92037-147
$7.34
92192
TUBE,5X10X980
92192-0829
$16.07
92192A
TUBE,5X10X980
92192-0830
$82.47
92192B
TUBE
92192-0837
$9.37
