2012 Kawasaki Vulcan® 1700 Nomad™ Fuel Injection Diagram

← All diagrams

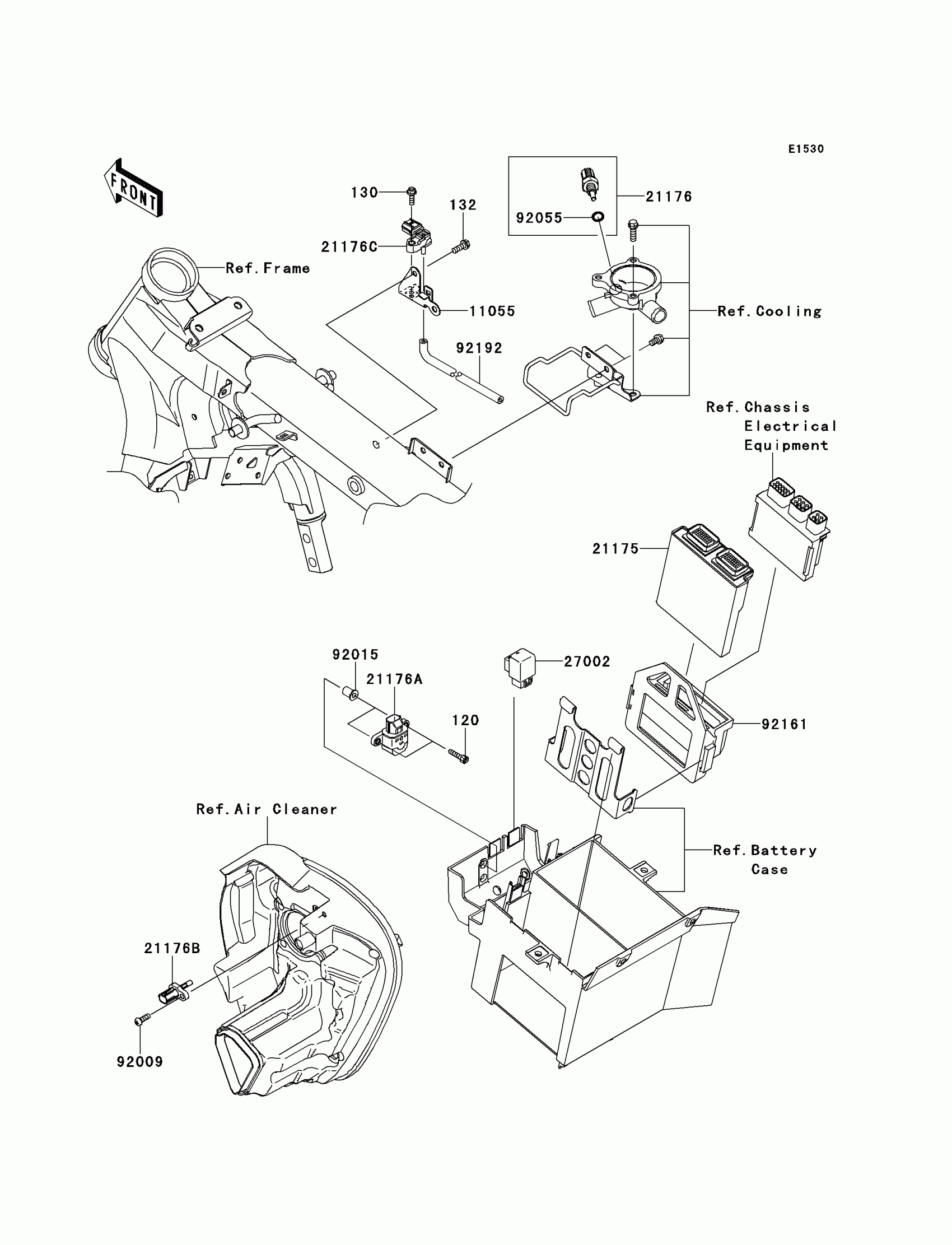

Find the part on the Fuel Injection diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X20

120CA0520

1
Out of stock

130

BOLT-FLANGED,5X16

130BA0516

1

$0.85

In stock

132

1

$1.21

In stock

11055

BRACKET

11055-0569

1

$8.25

In stock

21175

CONTROL UNIT-ELECTRONIC

21175-0339

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR

21176-0025

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,PRESSURE

21176-0111

1
Out of stock

27002

RELAY-ASSY

27002-1062

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER

92161-0092

1
Out of stock

92192

TUBE,FITTING-ASV

92192-0354

1
Out of stock
