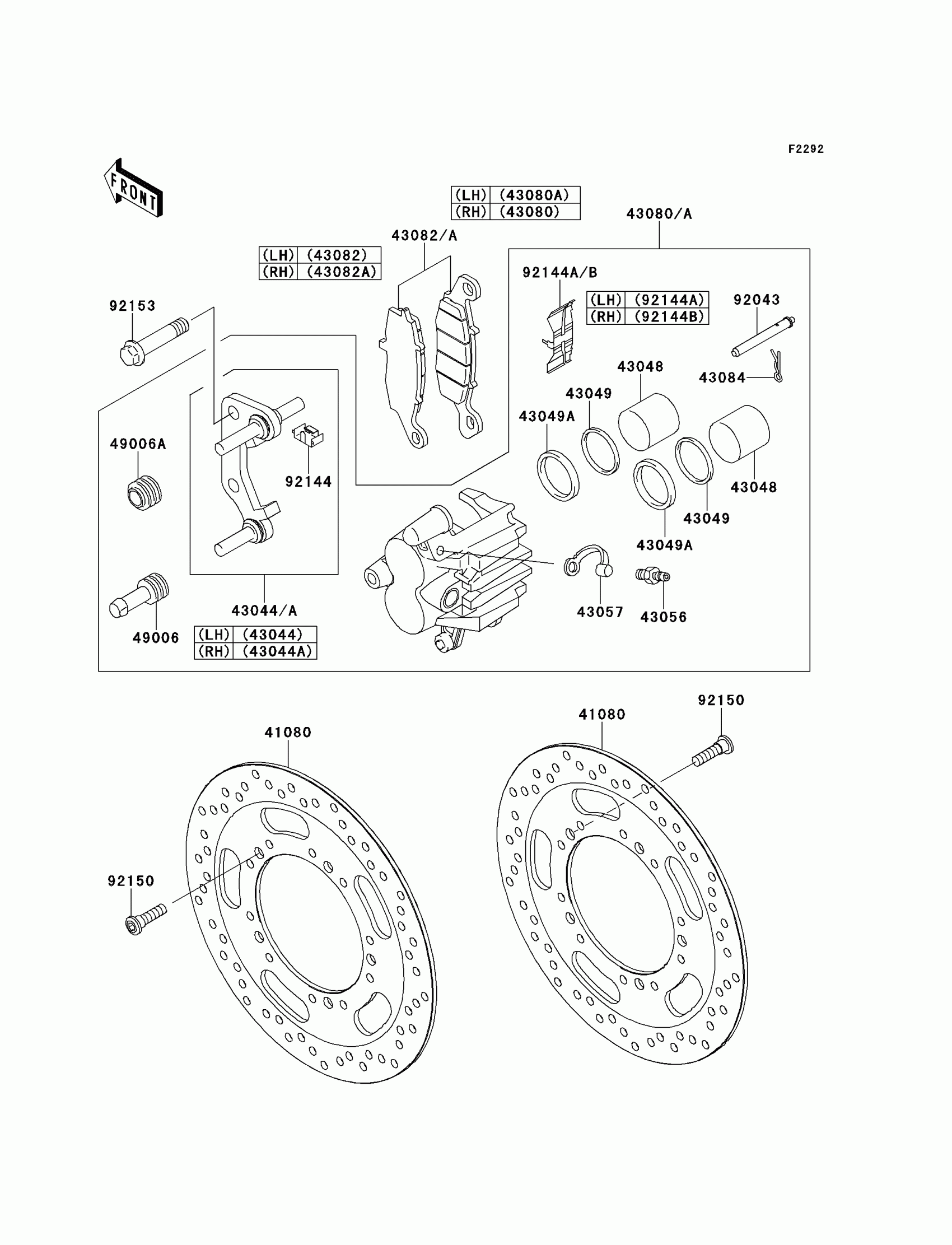

Kawasaki VULCAN® 1700 NOMAD™ Front Brake Diagram

Description

Price

41080A

DISC,FR,BLACK

41080-0181-11H

$455.55

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$148.83

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$144.35

43048

PISTON-CALIPER

43048-1073

$65.22

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5015-DJ

Unavailable

43080B

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-5017-DJ

$429.21

43082

PAD-ASSY-BRAKE,LH

43082-0061

$73.40

43082A

PAD-ASSY-BRAKE,RH

43082-0062

$73.40

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92144B

SPRING,PAD,RH

92144-1844

$10.00

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED,10X47

92153-0740

$6.24
