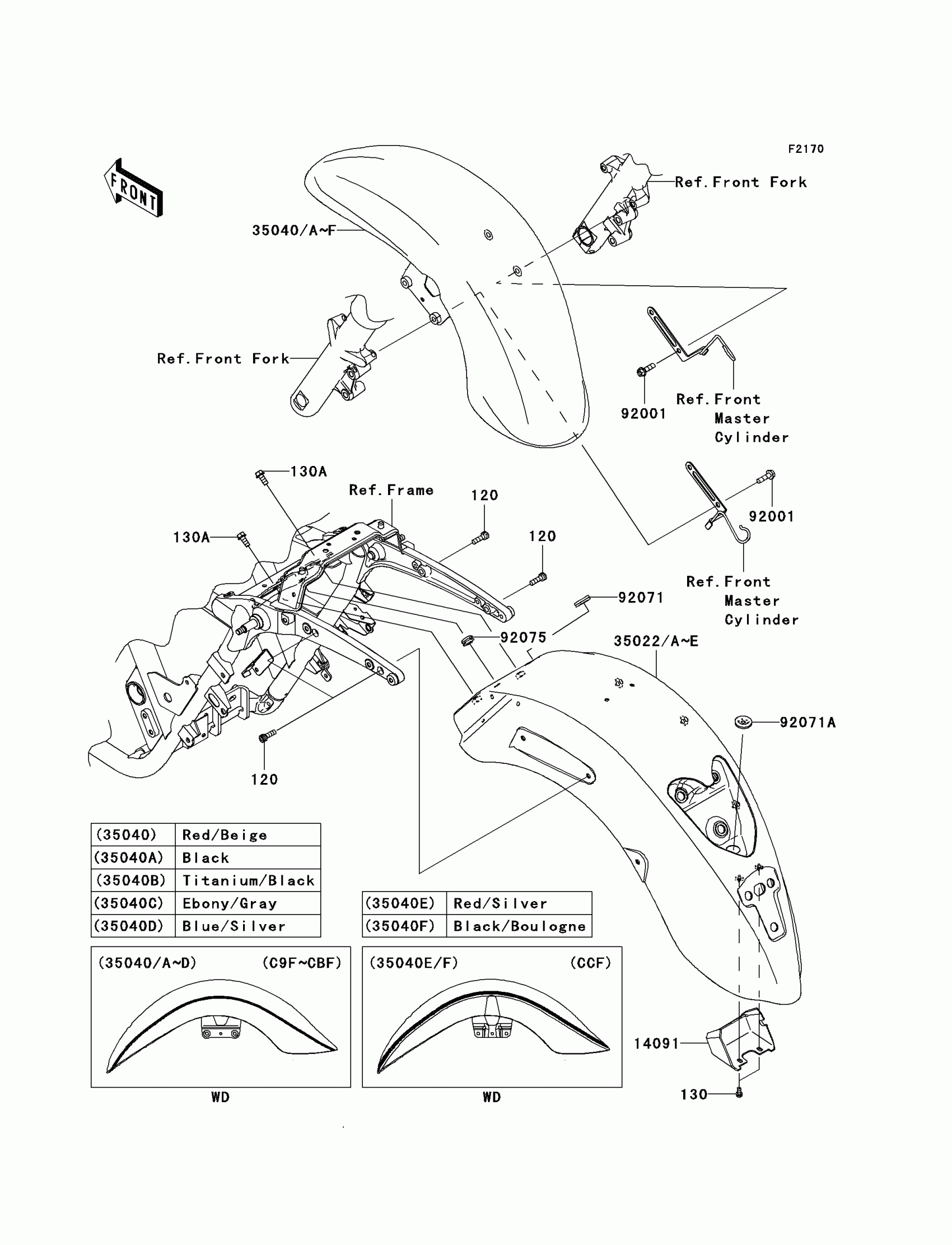

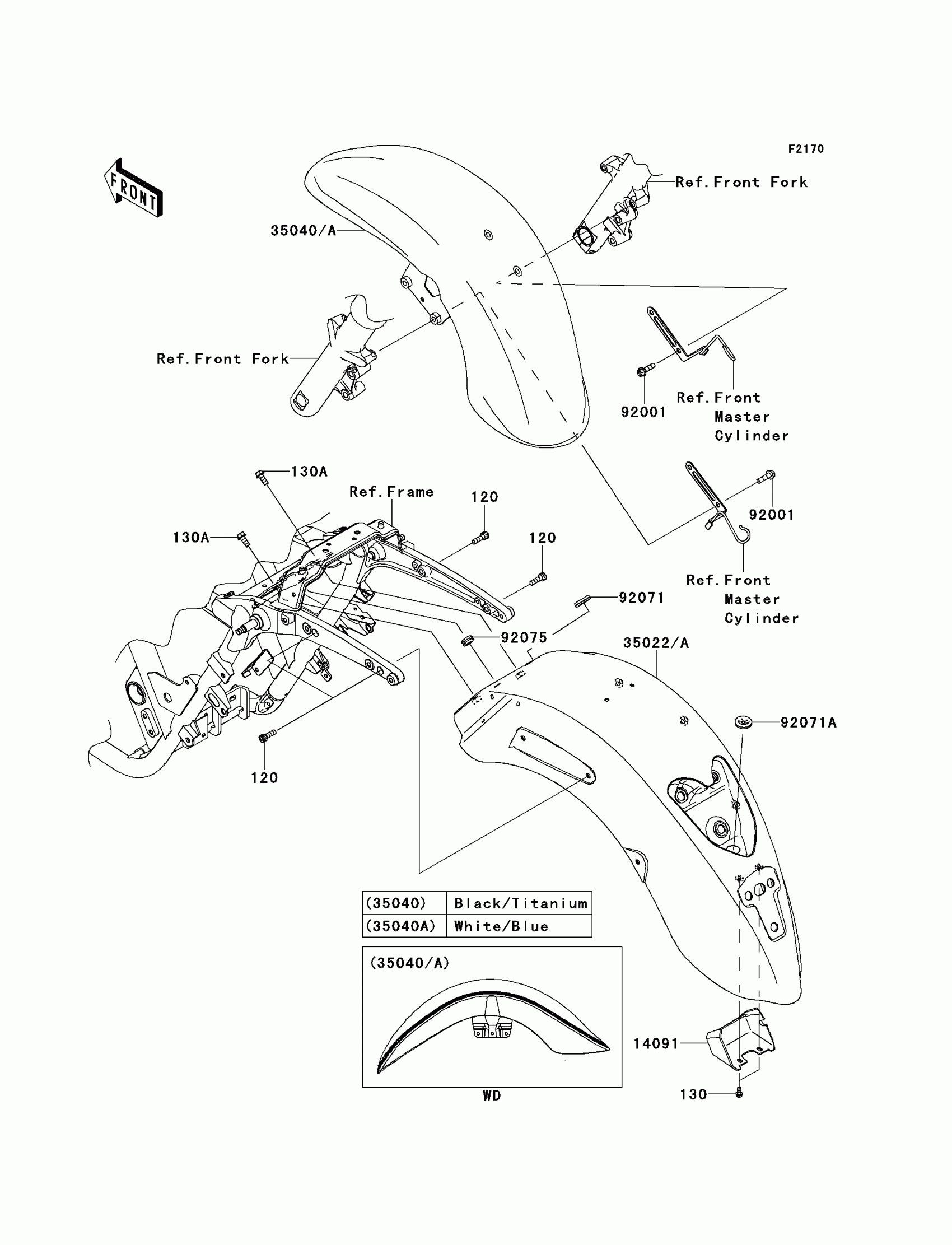

Kawasaki VULCAN® 1700 NOMAD™ Fenders Diagram

Description

Price

120

BOLT-SOCKET,8X25

120CA0825

$2.06

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

14091

COVER,HARNESS CONNECTOR

14091-1630

$9.96

35022A

FENDER-COMP-REAR,M.TITANIUM

35022-0066-740

$1,038.74

35040

FENDER-COMP-FRONT,BLK/TITANIUM

35040-5063-28K

$1,070.43

92001

BOLT,FLANGED,8X28

92001-1095

$6.57

92071

GROMMET

92071-1228

$6.51

92071A

GROMMET

92071-1265

$4.63

92075

DAMPER

92075-1067

$4.69

35022

FENDER-COMP-REAR,C.M.BLUE

35022-0066-25W

$1,030.96

35040A

FENDER-COMP-FRONT,WHITE/BLUE

35040-5064-45B

$1,070.43
