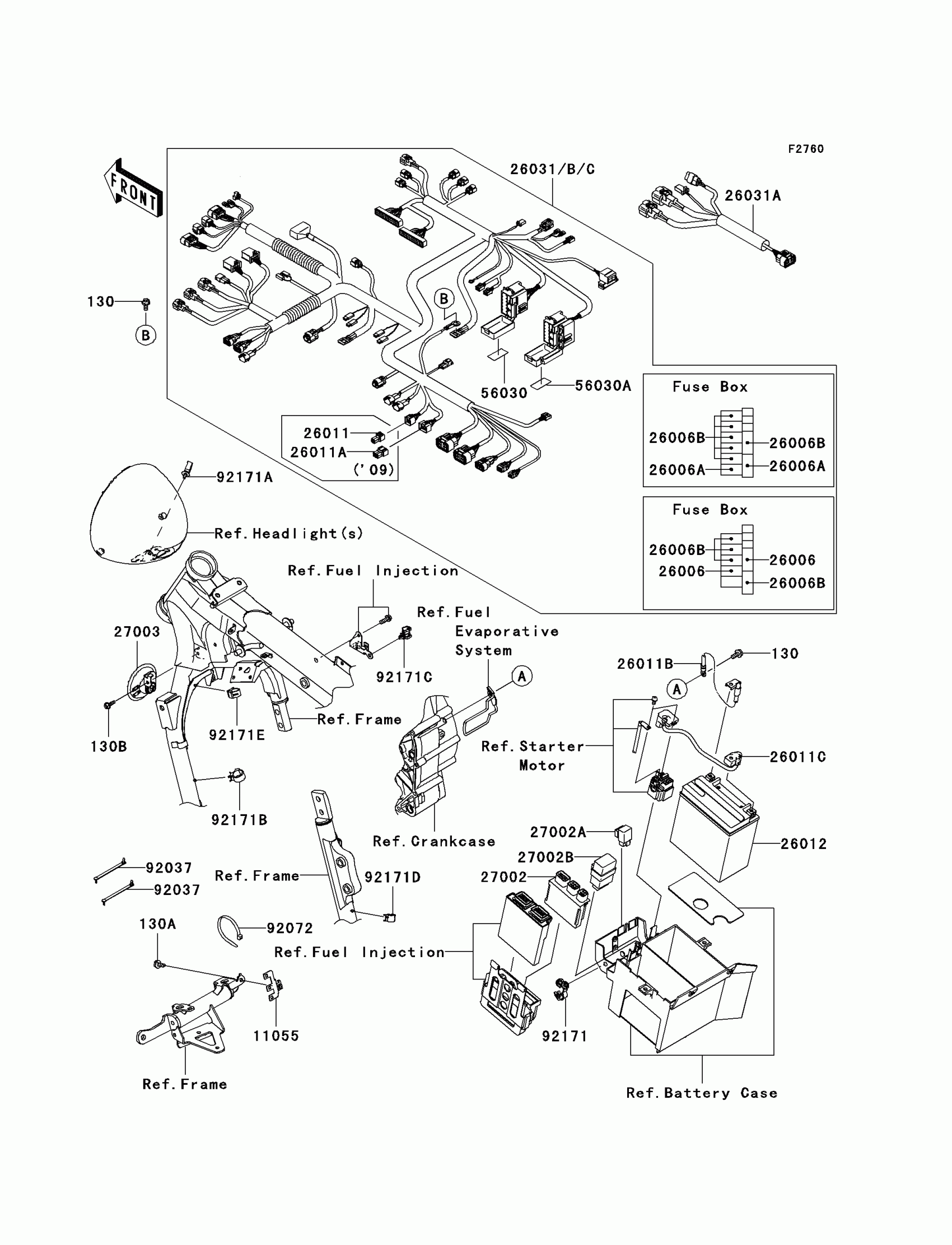

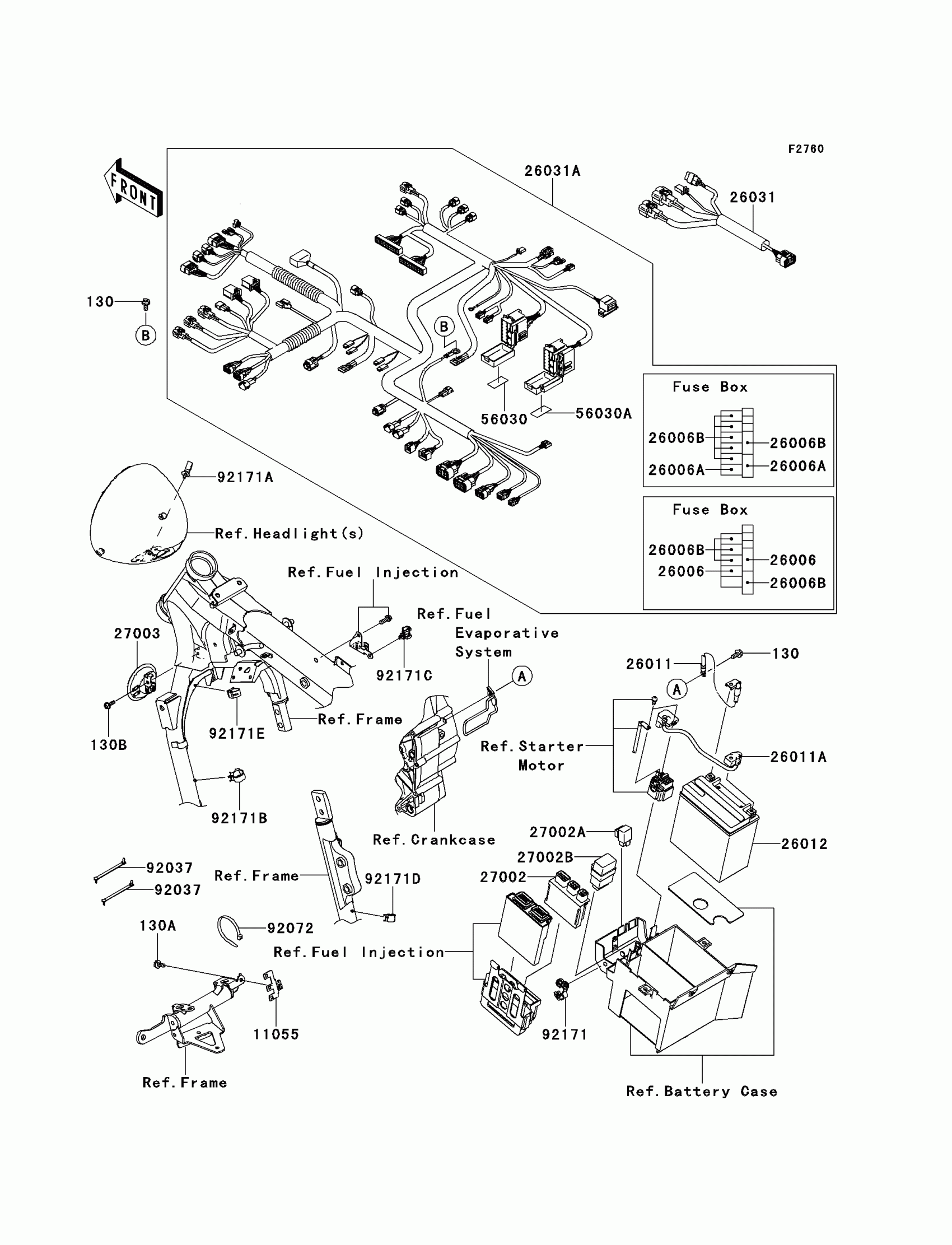

Kawasaki VULCAN® 1700 NOMAD™ Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X12

130BB0612

$2.34

130B

BOLT-FLANGED,6X18

130BB0618

$1.81

11055

BRACKET,CONNECTOR

11055-0613

$8.44

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011B

WIRE-LEAD,BATTERY(-)

26011-0180

$56.49

26011C

WIRE-LEAD,BATTERY(+)

26011-0217

$59.21

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

Unavailable

26031A

HARNESS,RR,SUB

26031-0651

$109.50

26031C

HARNESS,MAIN

26031-1167

$1,130.11

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-1062

$45.39

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1113

$115.95

27003

HORN

27003-0055

$80.94

56030

LABEL,FUSE BOX

56030-0177

$6.86

56030A

LABEL,FUSE BOX

56030-0295

$7.51

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,L=202

92072-1195

$1.56

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,20MM DIA.

92171-0069

$2.80

92171B

CLAMP,20MM DIA.

92171-0081

$4.18

92171C

CLAMP,13MM DIA.

92171-1415

$2.03

92171D

CLAMP,10MM DIA.

92171-1423

$4.18

92171E

CLAMP,DIA=15

92171-1424

$4.18
