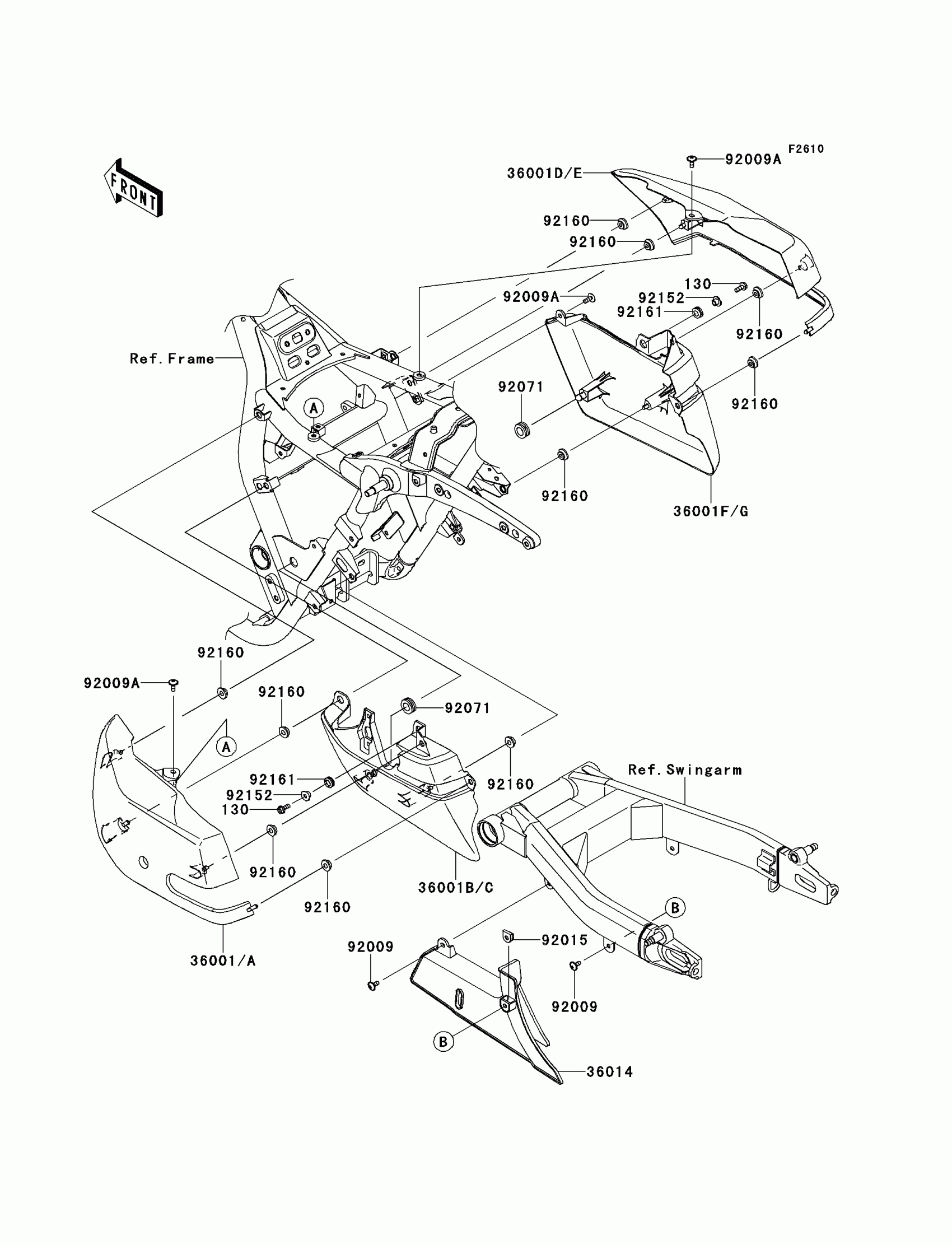

Kawasaki VULCAN® 1700 NOMAD™ ABS Side Covers/Chain Cover Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

36001

COVER-SIDE,LH,UPP,F.EBONY

36001-0139-45L

$238.69

36001B

COVER-SIDE,LH,LWR,F.EBONY

36001-0140-45L

$238.69

36001D

COVER-SIDE,RH,UPP,F.EBONY

36001-0141-45L

$238.69

36001F

COVER-SIDE,RH,LWR,F.EBONY

36001-0142-45L

$238.69

36014

CASE-CHAIN

36014-0042

$45.06

92009

SCREW,6X14

92009-1555

$3.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLIP,6MM

92015-1904

$6.57

92071

GROMMET

92071-1131

$7.77

92152

COLLAR

92152-0295

$5.65

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0266

$1.78
