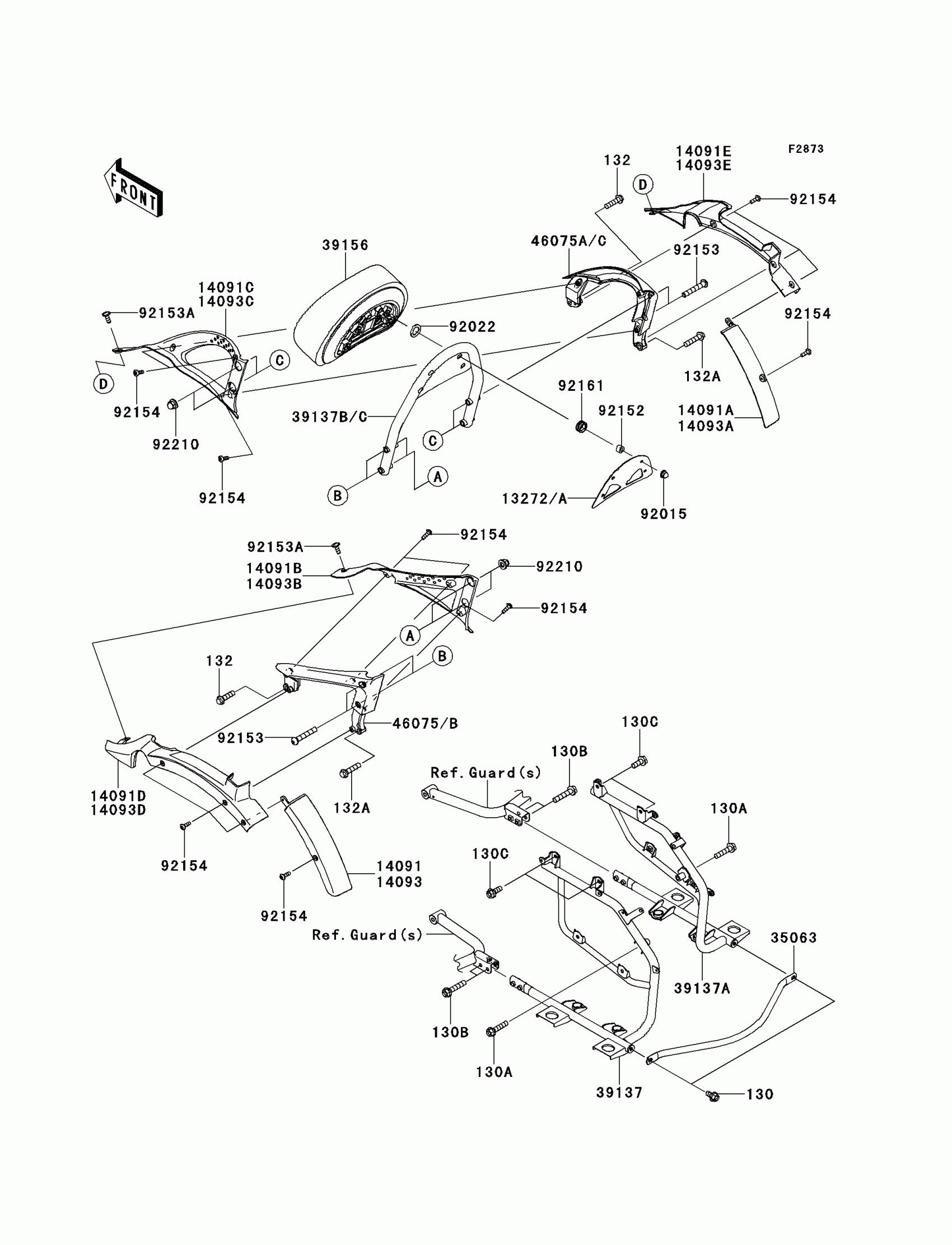

Kawasaki VULCAN® 1700 NOMAD™ ABS Saddlebags(Side Bag Bracket) Diagram

Description

Price

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,8X35

130BA0835

$1.46

130B

BOLT-FLANGED,8X40

130BA0840

$1.98

130C

BOLT-FLANGED,8X20

130CA0820

$1.71

132

BOLT-FLANGED-SMALL,8X30

132BA0830

$4.45

132A

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76

13272A

PLATE,BACKREST

13272-1644

$67.22

14093

COVER,STRUT,LH

14093-0011

$69.22

14093A

COVER,STRUT,RH

14093-0012

$69.22

14093B

COVER,GRIP,INNER,LH

14093-0013

$124.88

14093C

COVER,GRIP,INNER,RH

14093-0014

$124.88

14093D

COVER,GRIP,OUTER,LH

14093-0015

$180.16

14093E

COVER,GRIP,OUTER,RH

14093-0016

$180.16

35063

STAY,PANNIER

35063-0537

$58.29

39137

STAY-COMP,PANNIER,LH

39137-0048

$304.83

39137A

STAY-COMP,PANNIER,RH

39137-0049

$304.83

39137C

STAY-COMP,BACKREST

39137-0588

$304.83

39156

PAD,BACKREST,BLACK

39156-0657-MA

$237.25

46075B

GRIP,LH

46075-0591

$405.30

46075C

GRIP,RH

46075-0592

$405.30

92015

NUT,CAP,6MM

92015-1385

$4.31

92022

WASHER,15.1X23X1.8

92022-1755

$8.66

92152

COLLAR,6.5X12X7.5

92152-0793

$4.69

92153

BOLT,SOCKET,8X50

92153-0420

$3.26

92153A

BOLT,SOCKET,6X16

92153-0817

$2.15

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92161

DAMPER

92161-0570

$1.78

92210

NUT,CAP,8MM

92210-1161

$2.48
