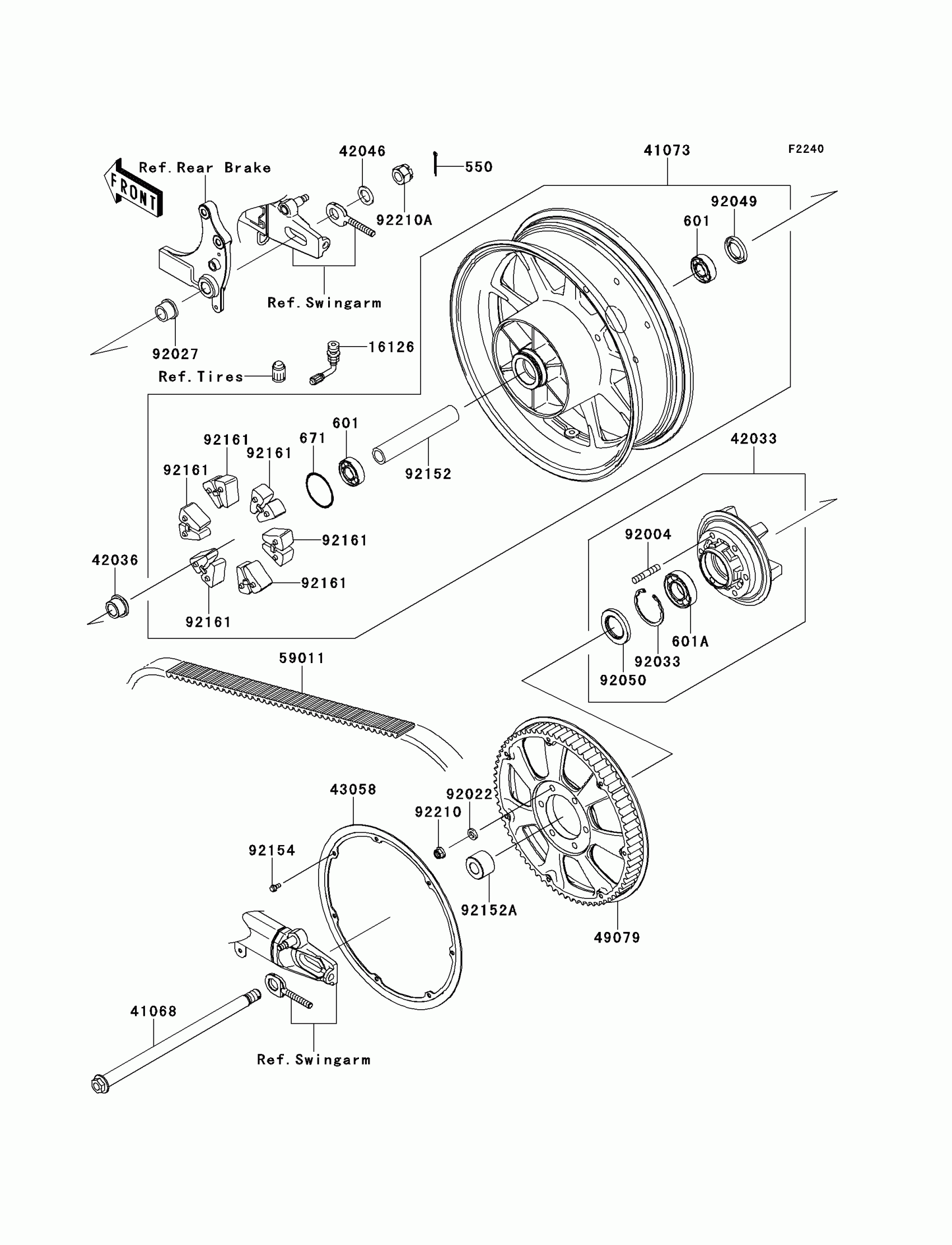

Kawasaki VULCAN® 1700 NOMAD™ ABS Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL,#6206UUC3

601B6206UU

$35.95

671

O RING,60MM

671B2560

$5.13

16126

VALVE

16126-1365

$20.69

41068

AXLE,RR

41068-0057

$85.12

41073

WHEEL-ASSY,RR,BLACK

41073-0140-18

$1,092.74

42033

COUPLING-ASSY,RR HUB

42033-0031

$246.89

42036

SLEEVE,RR HUB COUPLING

42036-0060

$38.90

42046

WASHER,21X33X2.6

42046-003

$3.85

43058

RING,PULLEY

43058-0033

$69.25

49079

PULLEY-BELT

49079-0018

$723.85

59011

BELT,DRIVE,139T

59011-0029

$606.86

92004

STUD,10X35

92004-0016

$5.59

92022

WASHER,10.5X19X3.2

92022-1820

$3.85

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP,62MM

92033-1044

$8.59

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92050

SEAL-OIL,AJN40627

92050-027

$16.96

92152

COLLAR,RR HUB,L=172

92152-0640

$61.13

92152A

COLLAR,RR AXLE,LH,L=28

92152-0641

$30.73

92154

BOLT,FLANGED,6X12

92154-0346

$1.71

92161

DAMPER,SHOCK,RR HUB

92161-0576

$25.93

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,CASTLE,18MM

92210-1134

$7.49
