2014 Kawasaki Vulcan® 1700 Nomad™ ABS Handlebar Diagram

← All diagrams

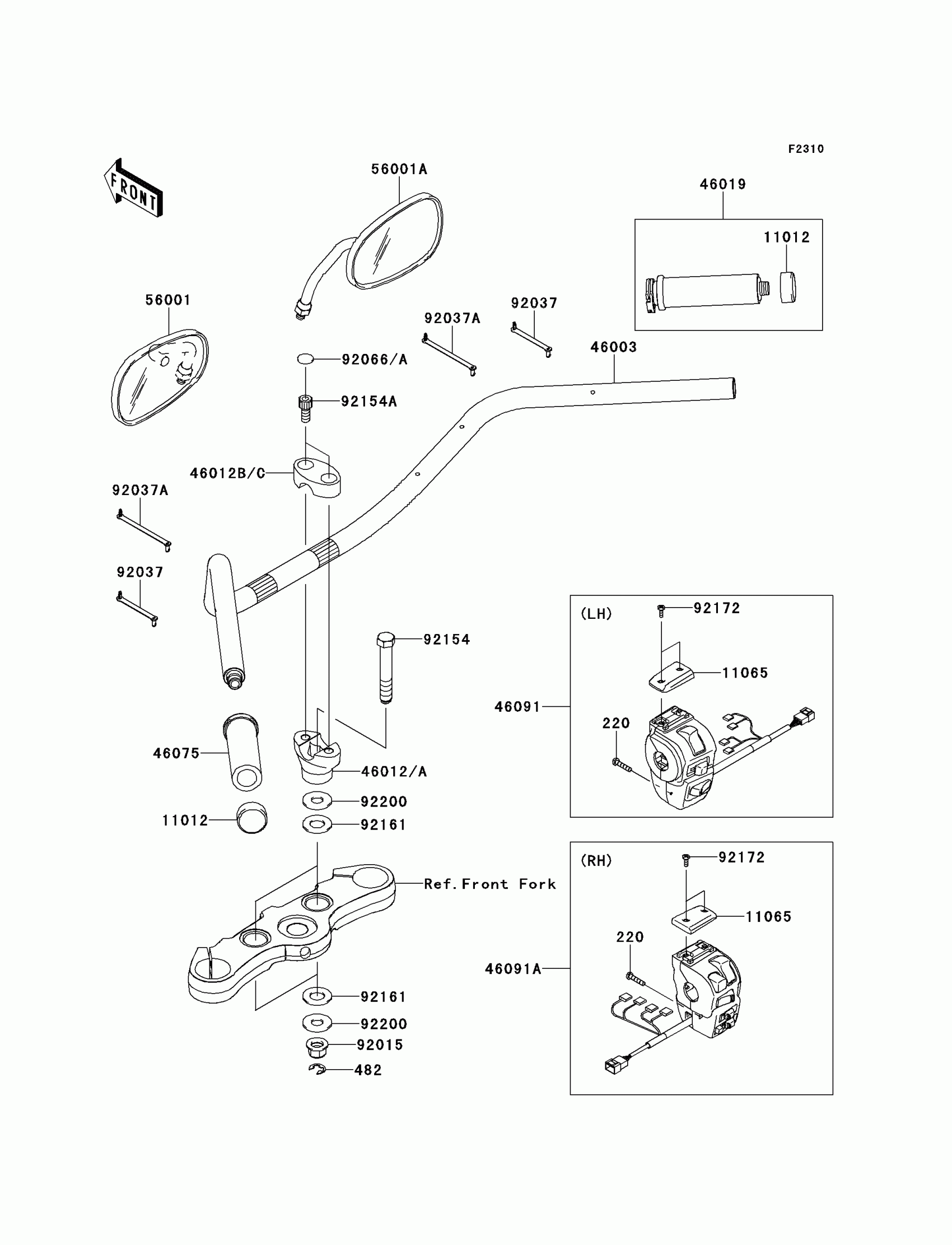

Find the part on the Handlebar diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X25

220AB0525

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

11012

CAP,GRIP END

11012-1975

1
Out of stock

11065

CAP,HOUSING SWITCH

11065-0310

1
Out of stock

46003

HANDLE

46003-0183

1
Out of stock

46012A

1

$125.18

In stock

46012C

1

$58.83

In stock

46019

GRIP-ASSY,THROTTLE

46019-1109

1

$63.56

In stock

46075

GRIP,LH

46075-1074

1

$22.67

In stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0147

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0200

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0032

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0033

1
Out of stock

92015

NUT,FLANGED,14MM

92015-1401

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92066

PLUG

92066-0718

1
Out of stock

92154

BOLT,UPSET,14X85

92154-0319

1
Out of stock

92154A

BOLT,SOCKET,10X25

92154-0350

1
Out of stock

92161

DAMPER,18X35X2.2

92161-0836

1
Out of stock

92172

SCREW,4X12

92172-0421

1
Out of stock

92200

WASHER,14.2X35X2.3

92200-0534

1
Out of stock
