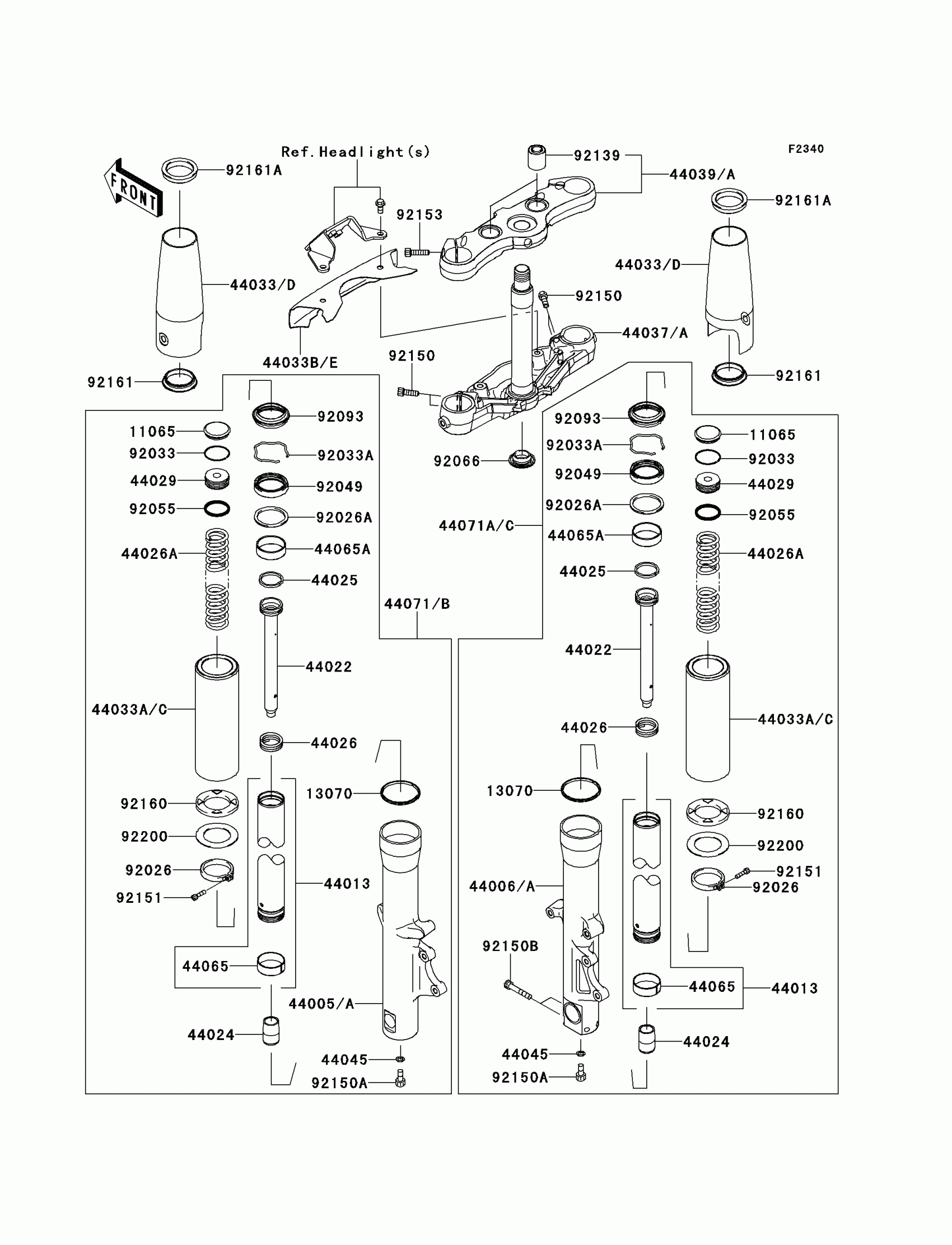

Kawasaki VULCAN® 1700 NOMAD™ ABS Front Fork Diagram

#

Description
Price

11065

CAP,FORK TOP

11065-0297

$12.68

13070

GUIDE,CASE

13070-0104

$11.07

44005A

PIPE-LEFT FORK OUTER

44005-0098

$509.77

44006A

PIPE-RIGHT FORK OUTER

44006-0097

$509.77

44013

PIPE-FORK INNER

44013-0125

$447.61

44022

CYLINDER-FORK

44022-0025

$118.42

44024

CAP-OIL-LOCK

44024-0006

$12.34

44025

RING-FORK PISTON

44025-0006

$9.63

44026

SPRING-FRONT FORK

44026-0131

$24.56

44026A

SPRING-FRONT FORK

44026-0132

$97.92

44029

SEAT-FORK SPRING

44029-0013

$58.23

44033C

COVER-FORK,INNER TUBE

44033-0074

$163.49

44033D

COVER-FORK,TOP

44033-0075

$192.67

44033E

COVER-FORK,UNDER BRACKET

44033-0076

$146.72

44037A

HOLDER-FORK UNDER

44037-0145

$571.64

44039A

HOLDER-FORK UPPER

44039-0140

$403.66

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0025

$23.97

44065A

BUSHING-FRONT FORK

44065-0026

$20.67

44071B

DAMPER-ASSY,FORK,LH

44071-0929

$1,144.11

44071C

DAMPER-ASSY,FORK,RH

44071-0930

$1,144.11

92026

SPACER

92026-0134

$19.58

92026A

SPACER

92026-1598

$11.08

92033

RING-SNAP

92033-0061

$7.32

92033A

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL

92049-0119

$24.78

92055

RING-O,FORK TOP

92055-1420

$4.18

92066

PLUG

92066-0032

$11.19

92093

SEAL,DUST

92093-0042

$20.26

92139

BUSHING

92139-0285

$36.83

92150

BOLT,SOCKET,8X30

92150-1407

$1.98

92150A

BOLT,SOCKET,8X18

92150-1432

$7.54

92150B

BOLT,SOCKET

92150-1512

Unavailable

92151

BOLT,SOCKET,4X16

92151-1356

$2.03

92153

BOLT,SOCKET,8X30

92153-0500

$10.44

92160

DAMPER

92160-1927

$7.76

92161

DAMPER

92161-0604

$4.92

92161A

DAMPER

92161-0799

$11.32

92200

WASHER

92200-0469

$7.44
